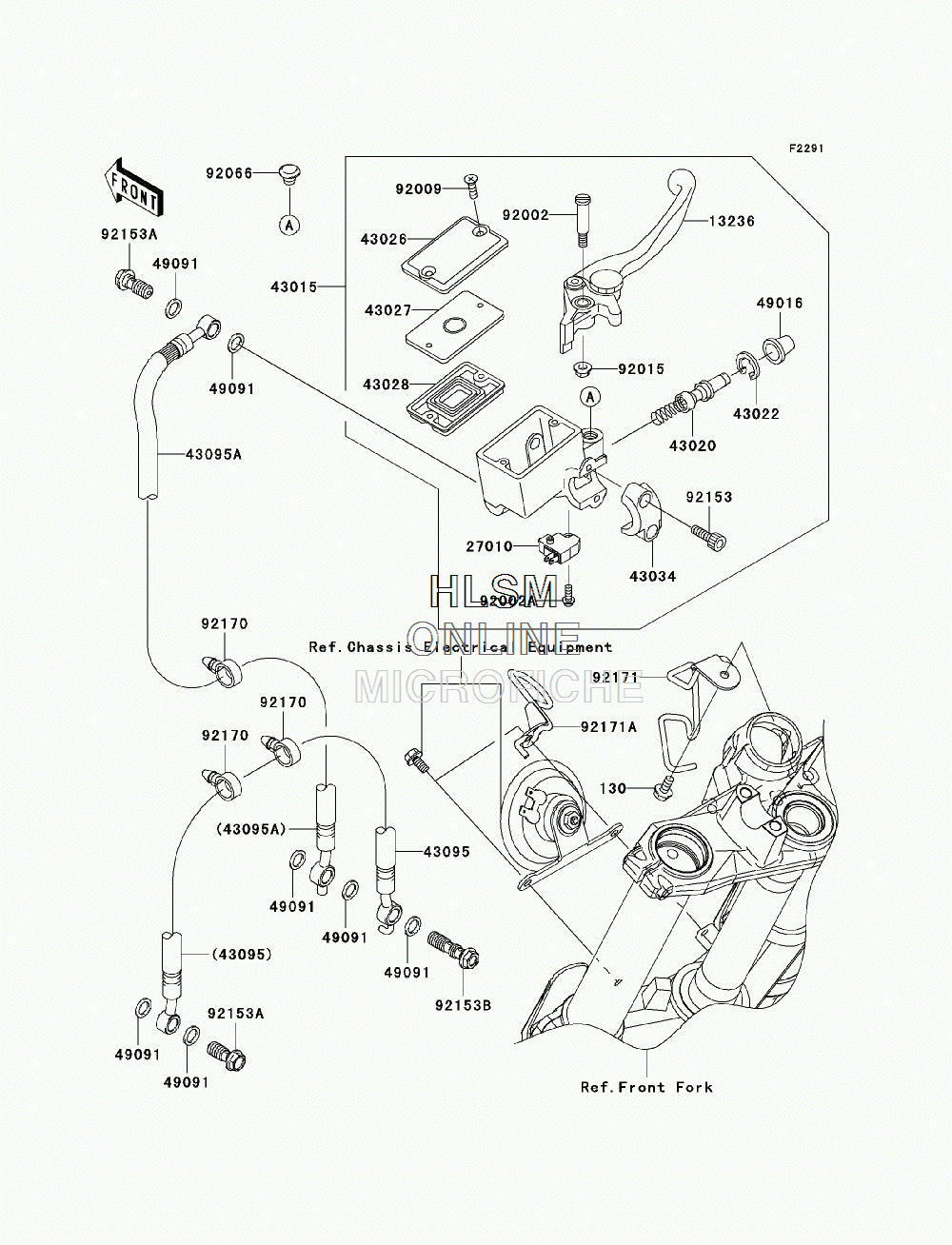

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA 650R (EX650A7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130L0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
1323613236-1337 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
2701027010-0025 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0011 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1054 PISTON-COMP-BRAKE, FRONTPISTON-COMP-BRAKE, FRONT
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1076 CAP-BRAKECAP-BRAKE
-
4302743027-1055 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1058 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1053 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-0211 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
43095A43095-0265 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1322 BOLT, LEVER SET, BLACKBOLT, LEVER SET, BLACK
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM, BLACKNUT, FLANGED, 6MM, BLACK
-
9206692066-1077 PLUG, 9.5X8, POLYETHYLENEPLUG, 9.5X8, POLYETHYLENE
-
9215392153-0417 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92153A92153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153B92153-0628 BOLT, OIL, L=37BOLT, OIL, L=37
-
9217092170-1067 CLAMPCLAMP
-
9217192171-0685 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171A92171-0706 CLAMP, CABLECLAMP, CABLE
