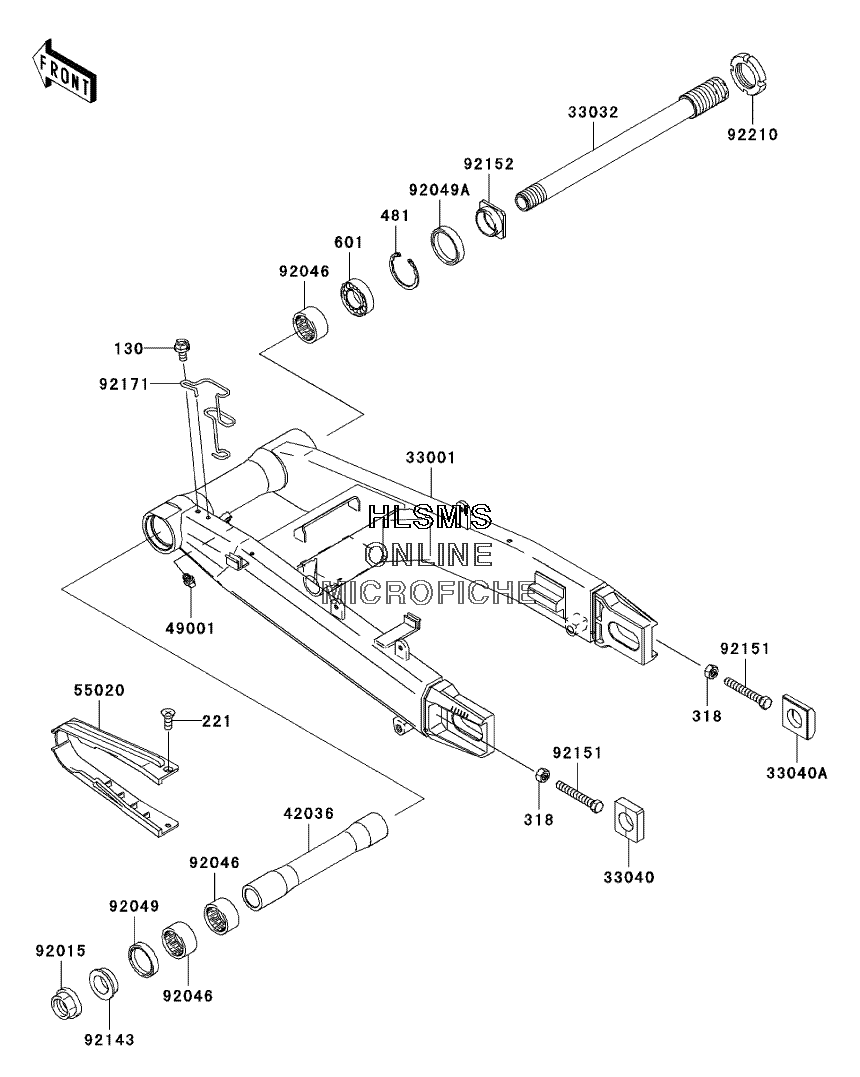

SUSPENSION - SWINGARM для Kawasaki Z1000 - 2006 года выпуска

  • №
    Артикул
    Название
  • 130
    130L0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 221
    221C0508 SCREW, CSK, CROS, 5X8
    SCREW, CSK, CROS, 5X8
  • 318
    318G0800 NUT, HEX, SMALL, 8MM
    NUT, HEX, SMALL, 8MM
  • 481
    481J4700 CIRCLIP, TYPE, C, 47MM
    CIRCLIP, TYPE, C, 47MM
  • 601
    601B6005U BEARING, BALL, #6005U
    BEARING, BALL, #6005U
  • 33001
    33001-0044-21 ARM, COMP, SWING (F.BLACK)
    ARM, COMP, SWING (F.BLACK)
  • 33032
    33032-1206 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1114 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 33040A
    33040-1180 ADJUSTER, CHAIN (RIGHT)
    ADJUSTER, CHAIN (RIGHT)
  • 42036
    42036-0023 SLEEVE, SWING ARM, L=224.5
    SLEEVE, SWING ARM, L=224.5
  • 49001
    49001-0001 NIPPLE, GREASE
    NIPPLE, GREASE
  • 55020
    55020-1700 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1845 NUT, FLANGED, 25MM
    NUT, FLANGED, 25MM
  • 92046
    92046-1205 BEARING, NEEDLE, BM3520
    BEARING, NEEDLE, BM3520
  • 92049
    92049-1381 SEAL, OIL, MHA 35X47X5
    SEAL, OIL, MHA 35X47X5
  • 92049A
    92049-1521 SEAL, OIL, KC38X47X6
    SEAL, OIL, KC38X47X6
  • 92143
    92143-1481 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92151
    92151-1578 BOLT, 8X55
    BOLT, 8X55
  • 92152
    92152-1445 COLLAR, SWING ARM, L=14.5
    COLLAR, SWING ARM, L=14.5
  • 92171
    92171-0042 CLAMP, TUBE & HOSE
    CLAMP, TUBE & HOSE
  • 92210
    92210-1205 NUT, 32MM
    NUT, 32MM
