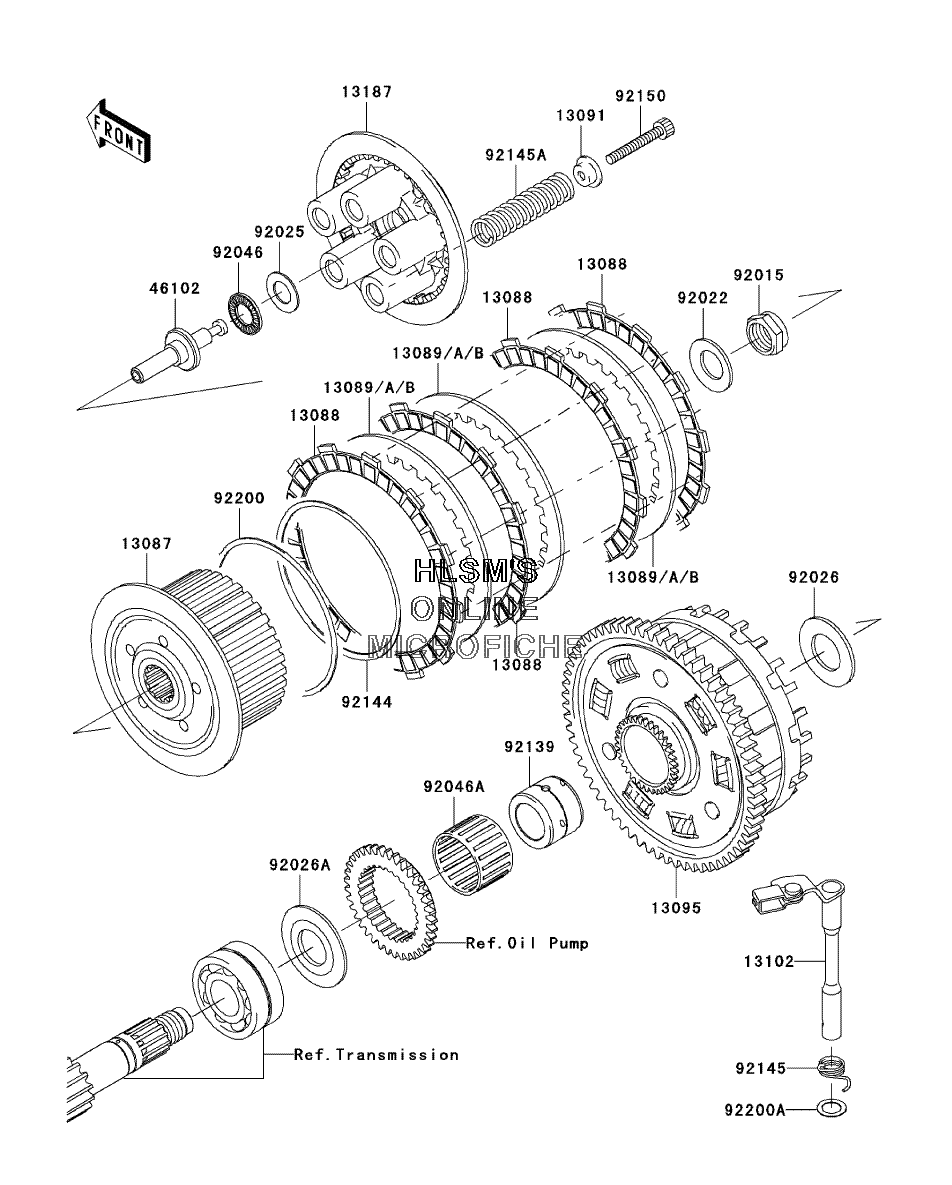

CLUTCH для Kawasaki Z1000 - 2006 года выпуска

  • №
    Артикул
    Название
  • 13087
    13087-1173 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-1124 PLATE, FRICTION
    PLATE, FRICTION
  • 13089
    13089-1073 PLATE, CLUTCH, T=2.0
    PLATE, CLUTCH, T=2.0
  • 13089A
    13089-1084 PLATE, CLUTCH, T=2.3
    PLATE, CLUTCH, T=2.3
  • 13089B
    13089-1115 PLATE, CLUTCH, T=2.6
    PLATE, CLUTCH, T=2.6
  • 13091
    13091-1041 HOLDER, CLUTCH SPRING
    HOLDER, CLUTCH SPRING
  • 13095
    13095-1417 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13102
    13102-1162 RELEASE, COMP, CLUTCH
    RELEASE, COMP, CLUTCH
  • 13187
    13187-1083 PLATE, CLUTCH OPERATING
    PLATE, CLUTCH OPERATING
  • 46102
    46102-1425 ROD
    ROD
  • 92015
    92015-1555 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1868 WASHER
    WASHER
  • 92025
    92025-1137 SHIM, 15.3X27.5X1.20
    SHIM, 15.3X27.5X1.20
  • 92026
    92026-022 SPACER, 25.5X47X2.5
    SPACER, 25.5X47X2.5
  • 92026A
    92026-1497 SPACER
    SPACER
  • 92046
    92046-1052 BEARING, NEEDLE, AXK1102
    BEARING, NEEDLE, AXK1102
  • 92046A
    92046-1263 BEARING, NEEDLE, K38X43X28.8X
    BEARING, NEEDLE, K38X43X28.8X
  • 92139
    92139-0067 BUSHING, 25X38X29.05
    BUSHING, 25X38X29.05
  • 92144
    92144-1854 SPRING, FRONTICTION PLATE
    SPRING, FRONTICTION PLATE
  • 92145
    92145-0066 SPRING, CLUTCH RELEASE
    SPRING, CLUTCH RELEASE
  • 92145A
    92145-1364 SPRING, CLUTCH
    SPRING, CLUTCH
  • 92150
    92150-1855 BOLT, CLUTCH OPERATING
    BOLT, CLUTCH OPERATING
  • 92200
    92200-1260 WASHER, FRONTICTION PLATE
    WASHER, FRONTICTION PLATE
  • 92200A
    92200-1487 WASHER, 12X18.5X0.5
    WASHER, 12X18.5X0.5
