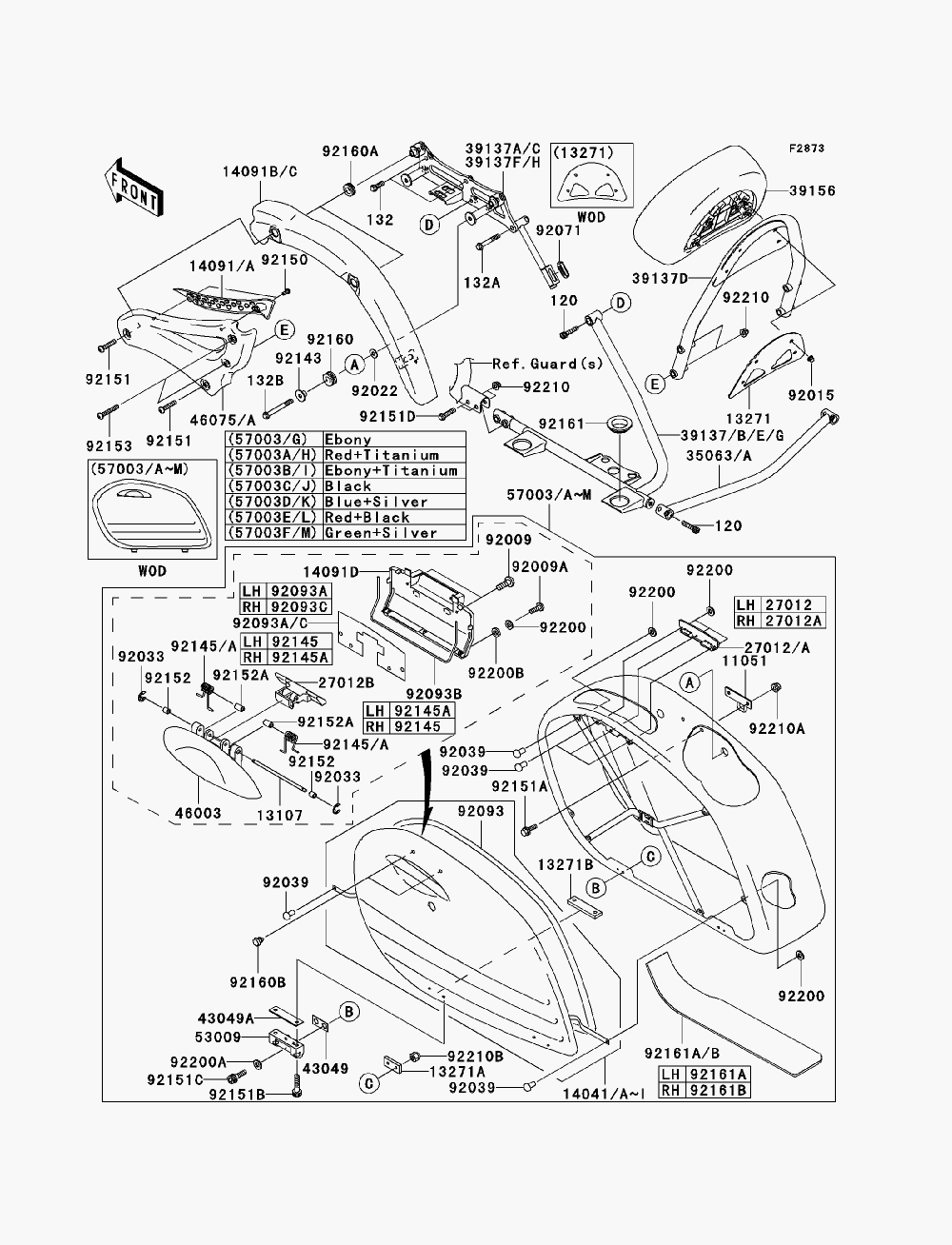

SADDLEBAGS для Kawasaki Vulcan 1600 Nomad - 2006 года выпуска

  • №
    Артикул
    Название
  • 11051
    11051-1104 BRACKET, SIDE BAG BODY
    BRACKET, SIDE BAG BODY
  • 13107
    13107-1403 SHAFT
    SHAFT
  • 13271
    13271-0404 PLATE, BACKREST
    PLATE, BACKREST
  • 13271A
    13271-1146 PLATE
    PLATE
  • 13271B
    13271-1147 PLATE
    PLATE
  • 14041
    14041-1130-GU COVER-COMP, SIDE BAG, LEFT HAND, SILVER
    COVER-COMP, SIDE BAG, LEFT HAND, SILVER
  • 14041E
    14041-1131-GU COVER-COMP, SIDE BAG, RIGHT HAND, SILVER
    COVER-COMP, SIDE BAG, RIGHT HAND, SILVER
  • 14091
    14091-0346 COVER, GRIP, LEFT HAND
    COVER, GRIP, LEFT HAND
  • 14091A
    14091-0347 COVER, GRIP, RIGHT HAND
    COVER, GRIP, RIGHT HAND
  • 14091B
    14091-0438 COVER, SIDE BAG STAY, LEFT HAND
    COVER, SIDE BAG STAY, LEFT HAND
  • 14091C
    14091-0440 COVER, SIDE BAG STAY, RIGHT HAND
    COVER, SIDE BAG STAY, RIGHT HAND
  • 14091D
    14091-1069 COVER, LID MAINTENANCE
    COVER, LID MAINTENANCE
  • 27012
    27012-1571 HOOK, LOCK PLATE, LEFT HAND
    HOOK, LOCK PLATE, LEFT HAND
  • 27012A
    27012-1572 HOOK, LOCK PLATE, RIGHT HAND
    HOOK, LOCK PLATE, RIGHT HAND
  • 27012B
    27012-1575 HOOK, HANDLE
    HOOK, HANDLE
  • 35063
    35063-0155 STAY, SIDE BAG, CNT
    STAY, SIDE BAG, CNT
  • 39137
    39137-0005 STAY-COMP, SIDE BAG, LEFT HAND, LWR
    STAY-COMP, SIDE BAG, LEFT HAND, LWR
  • 39137A
    39137-0006 STAY-COMP, SIDE BAG, LEFT HAND, UPP
    STAY-COMP, SIDE BAG, LEFT HAND, UPP
  • 39137B
    39137-0007 STAY-COMP, SIDE BAG, RIGHT HAND, LWR
    STAY-COMP, SIDE BAG, RIGHT HAND, LWR
  • 39137C
    39137-0008 STAY-COMP, SIDE BAG, RIGHT HAND, UPP
    STAY-COMP, SIDE BAG, RIGHT HAND, UPP
  • 39137D
    39137-0009 STAY-COMP, REAR
    STAY-COMP, REAR
  • 39156
    39156-0095-MA PAD, BACKREST, BLACK
    PAD, BACKREST, BLACK
  • 43049
    43049-1084 PACKING
    PACKING
  • 43049A
    43049-1086 PACKING
    PACKING
  • 46003
    46003-1505 HANDLE, SIDE BAG
    HANDLE, SIDE BAG
  • 46075
    46075-0021 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46075A
    46075-0022 GRIP, RIGHT HAND
    GRIP, RIGHT HAND
  • 53009
    53009-1104 HINGE, SIDE BAG
    HINGE, SIDE BAG
  • 57003F
    57003-1084-819 BAG-ASSY, LEFT HAND, BODY GRN+COVER SIL
    BAG-ASSY, LEFT HAND, BODY GRN+COVER SIL
  • 57003M
    57003-1085-819 BAG-ASSY, RIGHT HAND, BODY GRN+COVER SIL
    BAG-ASSY, RIGHT HAND, BODY GRN+COVER SIL
  • 92009
    92009-1870 SCREW, TAPPING, 4X12
    SCREW, TAPPING, 4X12
  • 92009A
    92009-1871 SCREW, TAPPING, 3X8
    SCREW, TAPPING, 3X8
  • 92015
    92015-1385 NUT, CAP, 6MM
    NUT, CAP, 6MM
  • 92022
    92022-1317 WASHER, 8.5X20X1.6, BLACK
    WASHER, 8.5X20X1.6, BLACK
  • 92033
    92033-1300 RING-SNAP
    RING-SNAP
  • 92039
    92039-1236 RIVET
    RIVET
  • 92071
    92071-0013 GROMMET
    GROMMET
  • 92093
    92093-1486 SEAL, SIDE BAG COVER
    SEAL, SIDE BAG COVER
  • 92093A
    92093-1487 SEAL, SIDE BAG, LEFT HAND
    SEAL, SIDE BAG, LEFT HAND
  • 92093B
    92093-1488 SEAL
    SEAL
  • 92093C
    92093-1489 SEAL, SIDE BAG, RIGHT HAND
    SEAL, SIDE BAG, RIGHT HAND
  • 92143
    92143-1450 COLLAR
    COLLAR
  • 92145
    92145-1175 SPRING
    SPRING
  • 92145A
    92145-1200 SPRING
    SPRING
  • 92150
    92150-1836 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92151
    92151-1205 BOLT, SOCKET, 8X40
    BOLT, SOCKET, 8X40
  • 92151A
    92151-1435 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92151B
    92151-1436 BOLT, SOCKET, 4X22
    BOLT, SOCKET, 4X22
  • 92151C
    92151-1437 BOLT, SOCKET, 4X18
    BOLT, SOCKET, 4X18
  • 92151D
    92151-1537 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92152
    92152-1121 COLLAR
    COLLAR
  • 92152A
    92152-1122 COLLAR
    COLLAR
  • 92153
    92153-0420 BOLT, SOCKET, 8X50
    BOLT, SOCKET, 8X50
  • 92160
    92160-1012 DAMPER
    DAMPER
  • 92160A
    92160-1847 DAMPER
    DAMPER
  • 120
    120S0835 BOLT-SOCKET, 8X35
    BOLT-SOCKET, 8X35
  • 132
    132J0825 BOLT-FLANGED-SMALL, 8X25
    BOLT-FLANGED-SMALL, 8X25
  • 132A
    132J0855 BOLT-FLANGED-SMALL, 8X55
    BOLT-FLANGED-SMALL, 8X55
  • 132B
    132J0875 BOLT-FLANGED-SMALL, 8X75
    BOLT-FLANGED-SMALL, 8X75
  • 92160B
    92160-1976 DAMPER
    DAMPER
  • 92161
    92161-0237 DAMPER
    DAMPER
  • 92161A
    92161-1171 DAMPER, SIDE BAG, LEFT HAND
    DAMPER, SIDE BAG, LEFT HAND
  • 92161B
    92161-1176 DAMPER, SIDE BAG, RIGHT HAND
    DAMPER, SIDE BAG, RIGHT HAND
  • 92200
    92200-1442 WASHER, 3MM
    WASHER, 3MM
  • 92200A
    92200-1443 WASHER, 4MM
    WASHER, 4MM
  • 92200B
    92200-1444 WASHER, 3MM
    WASHER, 3MM
  • 92210
    92210-1161 NUT, CAP, 8MM
    NUT, CAP, 8MM
  • 92210A
    92210-1167 NUT, CAP, 6MM
    NUT, CAP, 6MM
  • 92210B
    92210-1168 NUT, CAP, 4MM
    NUT, CAP, 4MM
