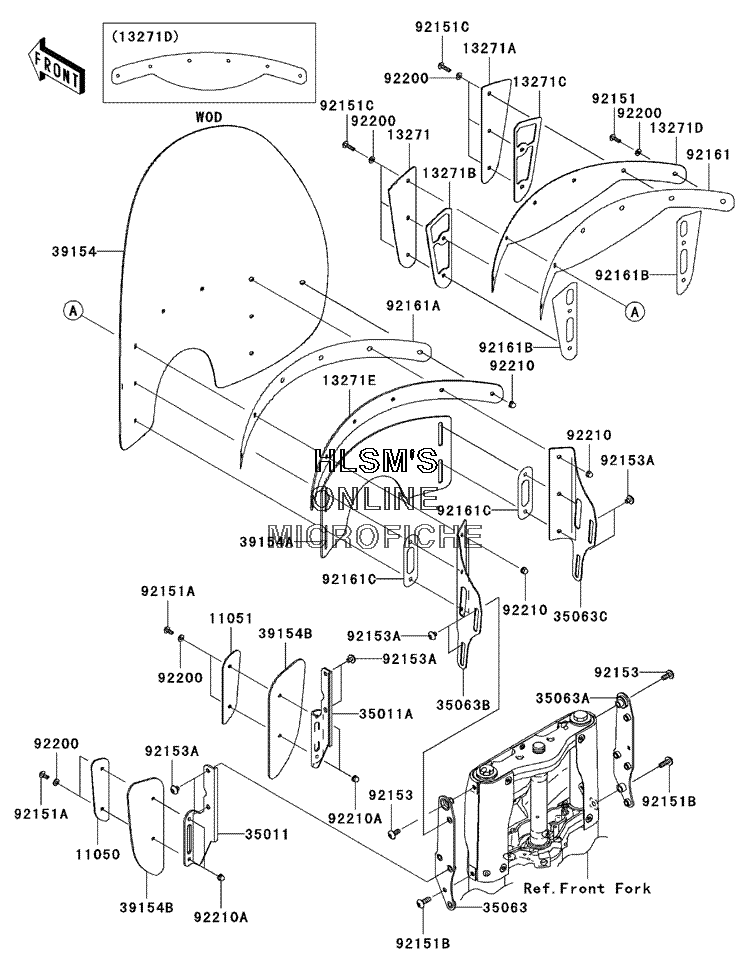

COWLING для Kawasaki Vulcan 1600 Nomad - 2006 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1750 BRACKET, DEFLECTOR (LEFT)
    BRACKET, DEFLECTOR (LEFT)
  • 11051
    11051-1061 BRACKET, DEFLECTOR (RIGHT)
    BRACKET, DEFLECTOR (RIGHT)
  • 13271
    13271-0570 PLATE, WINDSHIELD (LEFT/OUTER)
    PLATE, WINDSHIELD (LEFT/OUTER)
  • 13271A
    13271-0571 PLATE, WINDSHIELD (RIGHT/OUTER)
    PLATE, WINDSHIELD (RIGHT/OUTER)
  • 13271B
    13271-0572 PLATE, WINDSHIELD (LEFT/INNER)
    PLATE, WINDSHIELD (LEFT/INNER)
  • 13271C
    13271-0573 PLATE, WINDSHIELD (RIGHT/INNER)
    PLATE, WINDSHIELD (RIGHT/INNER)
  • 13271D
    13271-1089 PLATE, WINDSHIELD, CENTER, OUTER
    PLATE, WINDSHIELD, CENTER, OUTER
  • 13271E
    13271-1090 PLATE, WINDSHIELD, CENTER, INNER
    PLATE, WINDSHIELD, CENTER, INNER
  • 35011
    35011-1916 STAY, DEFLECTOR (LEFT)
    STAY, DEFLECTOR (LEFT)
  • 35011A
    35011-1917 STAY, DEFLECTOR (RIGHT)
    STAY, DEFLECTOR (RIGHT)
  • 35063
    35063-0209 STAY, MAIN (LEFT)
    STAY, MAIN (LEFT)
  • 35063A
    35063-0210 STAY, MAIN (RIGHT)
    STAY, MAIN (RIGHT)
  • 35063B
    35063-0213 STAY, WINDSHIELD (LEFT)
    STAY, WINDSHIELD (LEFT)
  • 35063C
    35063-0214 STAY, WINDSHIELD (RIGHT)
    STAY, WINDSHIELD (RIGHT)
  • 39154
    39154-0012 WINDSHIELD, MAIN
    WINDSHIELD, MAIN
  • 39154A
    39154-0013 WINDSHIELD, SUB
    WINDSHIELD, SUB
  • 39154B
    39154-1139 WINDSHIELD, DEFLECTOR
    WINDSHIELD, DEFLECTOR
  • 92151
    92151-1750 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92151A
    92151-1751 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92151B
    92151-1753 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92151C
    92151-1945 BOLT, SOCKET, 6X25
    BOLT, SOCKET, 6X25
  • 92153
    92153-0912 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92153A
    92153-1278 BOLT, SOCKET, 8X10
    BOLT, SOCKET, 8X10
  • 92161
    92161-0268 DAMPER, WINDSHIELD, OUTER, CENTER
    DAMPER, WINDSHIELD, OUTER, CENTER
  • 92161A
    92161-0269 DAMPER, WINDSHIELD, INNER, CENTER
    DAMPER, WINDSHIELD, INNER, CENTER
  • 92161B
    92161-0270 DAMPER, WINDSHIELD, OUTER (LEFT/RIGHT)
    DAMPER, WINDSHIELD, OUTER (LEFT/RIGHT)
  • 92161C
    92161-0271 DAMPER, WINDSHIELD, INNER (LEFT/RIGHT)
    DAMPER, WINDSHIELD, INNER (LEFT/RIGHT)
  • 92200
    92200-3775 WASHER, 6.5X14.5X1.5
    WASHER, 6.5X14.5X1.5
  • 92210
    92210-0220 NUT, CAP, 6MM
    NUT, CAP, 6MM
  • 92210A
    92210-1129 NUT, CAP, 6MM
    NUT, CAP, 6MM
