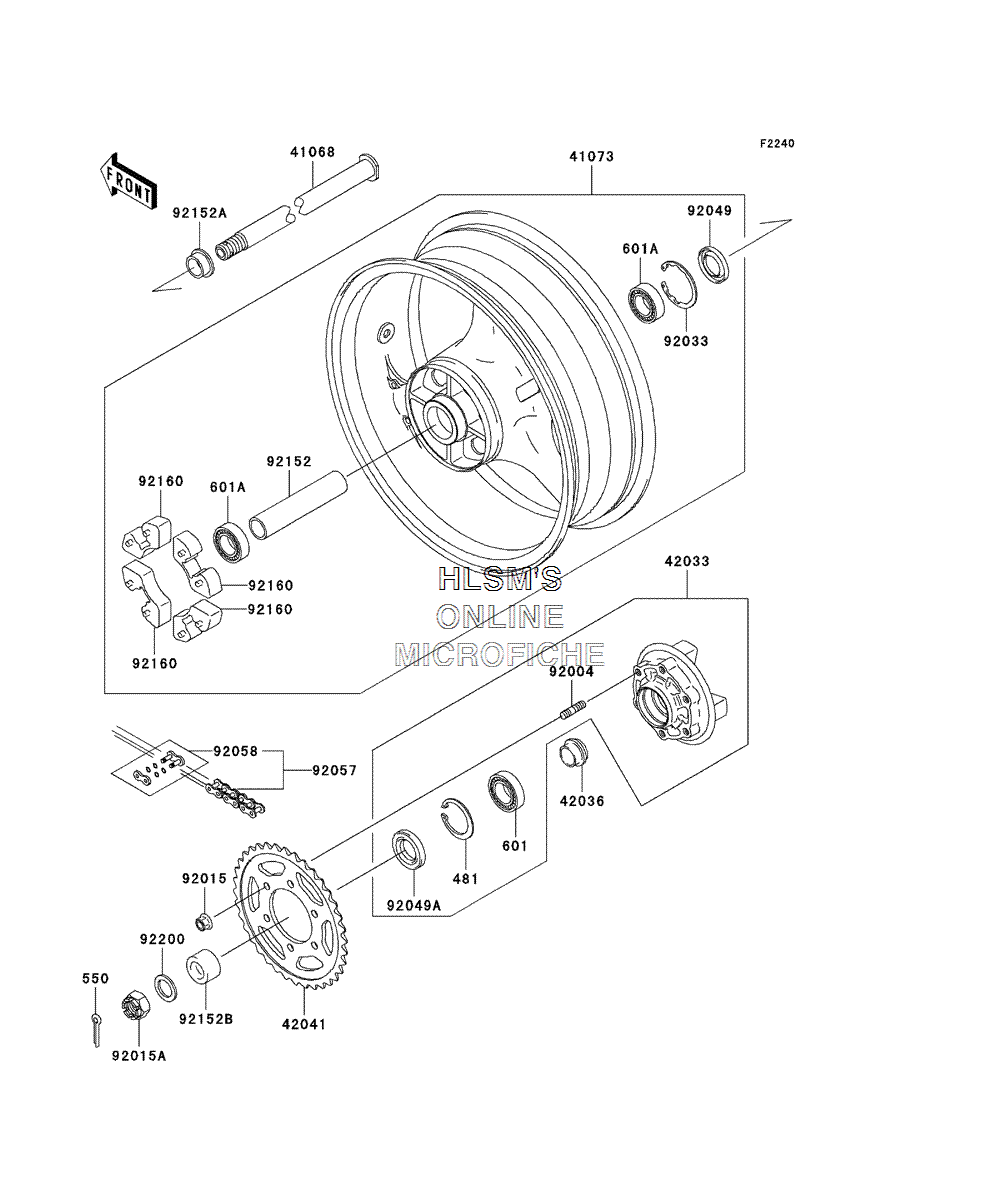

WHEEL - REAR W/ CHAIN для Kawasaki ZZR600 - 2005 года выпуска`
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550D4040 PIN-COTTER, 4.0X40PIN-COTTER, 4.0X40
-
601601B6006G BEARING-BALL, #6006GBEARING-BALL, #6006G
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
4106841068-0005 AXLE, REARAXLE, REAR
-
4107341073-1688-V5 WHEEL-ASSY, REAR, SILVERWHEEL-ASSY, REAR, SILVER
-
4203342033-1213 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-1503 SPROCKET-HUB (40 TEETH)SPROCKET-HUB (40 TEETH)
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1844 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204992049-1375 SEAL-OIL, REAR HUBSEAL-OIL, REAR HUB
-
92049A92049-1376 SEAL-OIL, PJN 40 55 8SEAL-OIL, PJN 40 55 8
-
9205792057-0046 CHAIN, DRIVE, EK525UVXL2X108LCHAIN, DRIVE, EK525UVXL2X108L
-
9205892058-1089 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-1080 COLLAR, REAR HUB, L=152.5COLLAR, REAR HUB, L=152.5
-
92152A92152-1246 COLLAR, REAR AXLE, L=16 (RIGHT)COLLAR, REAR AXLE, L=16 (RIGHT)
-
92152B92152-1254 COLLAR, REAR AXLE, L=23.5 (LEFT)COLLAR, REAR AXLE, L=23.5 (LEFT)
-
9216092160-1485 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1479 WASHER, 25.5X38X3.2WASHER, 25.5X38X3.2
