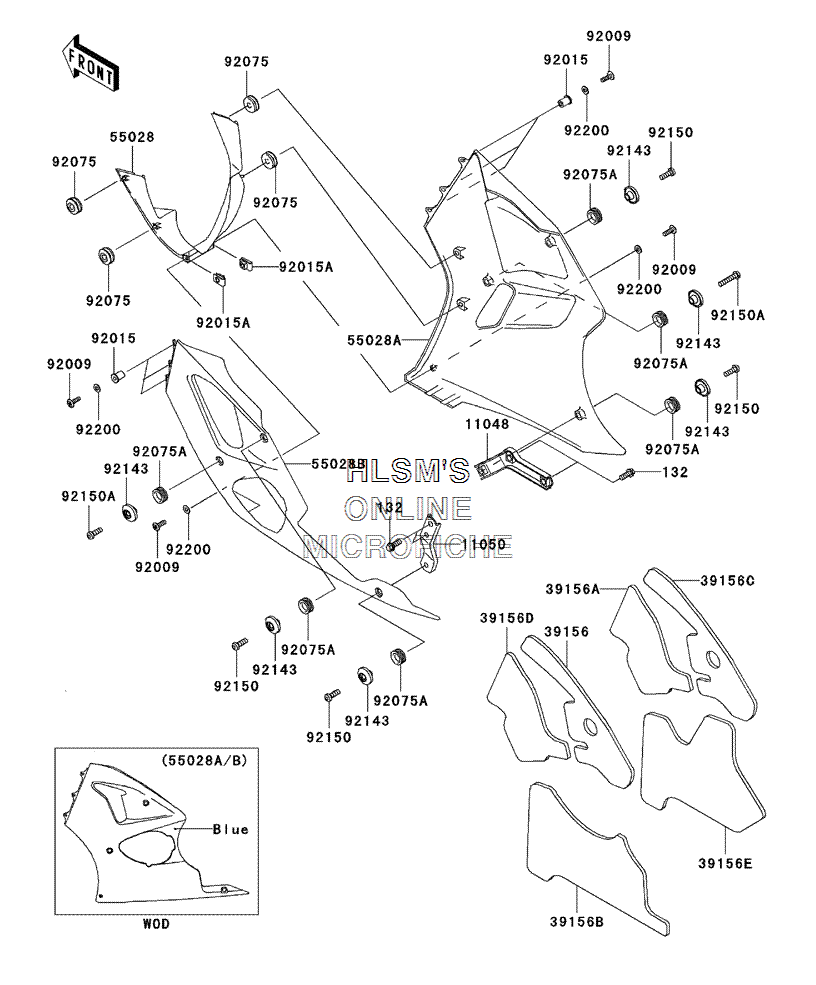

COWLING - LOWERS для Kawasaki ZZR600 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11048
    11048-1870 BRACKET, LOWER COWLING (RIGHT/LOWER)
    BRACKET, LOWER COWLING (RIGHT/LOWER)
  • 11050
    11050-1867 BRACKET, SIDE COWLING (LEFT/LOWER)
    BRACKET, SIDE COWLING (LEFT/LOWER)
  • 39156
    39156-1616 PAD, SIDE COWLING (LEFT/UPPER)
    PAD, SIDE COWLING (LEFT/UPPER)
  • 39156A
    39156-1617 PAD, SIDE COWLING (RIGHT/CENTER)
    PAD, SIDE COWLING (RIGHT/CENTER)
  • 39156B
    39156-1618 PAD, SIDE COWLING (LEFT/LOWER)
    PAD, SIDE COWLING (LEFT/LOWER)
  • 39156C
    39156-1619 PAD, SIDE COWLING (RIGHT/UPPER)
    PAD, SIDE COWLING (RIGHT/UPPER)
  • 39156D
    39156-1620 PAD, SIDE COWLING (LEFT/CENTER)
    PAD, SIDE COWLING (LEFT/CENTER)
  • 39156E
    39156-1621 PAD, SIDE COWLING (RIGHT/LOWER)
    PAD, SIDE COWLING (RIGHT/LOWER)
  • 55028
    55028-1368-726 COWLING, FRONT (M.O.BLUE)
    COWLING, FRONT (M.O.BLUE)
  • 55028A
    55028-1396-726 COWLING, SIDE (RIGHT) (M.O.BLUE)
    COWLING, SIDE (RIGHT) (M.O.BLUE)
  • 55028B
    55028-1402-726 COWLING, SIDE (LEFT) (M.O.BLUE)
    COWLING, SIDE (LEFT) (M.O.BLUE)
  • 92009
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92015A
    92015-1798 NUT, 5MM
    NUT, 5MM
  • 92075
    92075-1067 DAMPER
    DAMPER
  • 92075A
    92075-1634 DAMPER
    DAMPER
  • 132
    132V0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 92143
    92143-1226 COLLAR (BLACK)
    COLLAR (BLACK)
  • 92150
    92150-1553 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92150A
    92150-1554 BOLT, SOCKET, 6X30
    BOLT, SOCKET, 6X30
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
