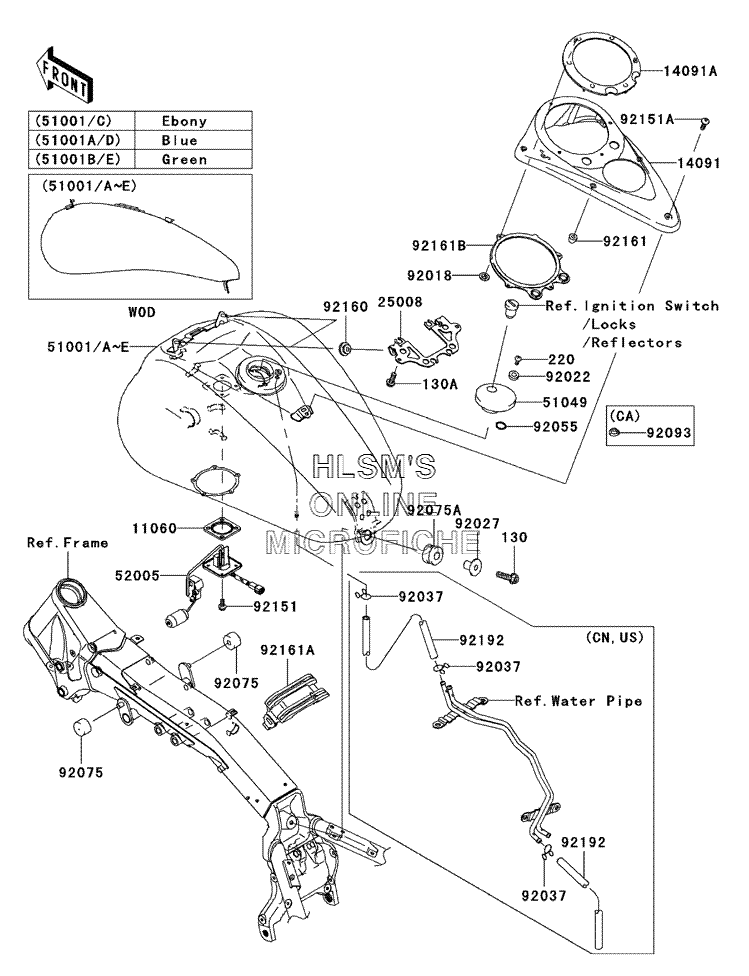

FUEL TANK для Kawasaki Vulcan 2000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130H0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 130A
    130L0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 220
    220D0510 SCREW-PAN-CROS, 5X10
    SCREW-PAN-CROS, 5X10
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14091
    14091-0187 COVER, METER, LOWER
    COVER, METER, LOWER
  • 14091A
    14091-0284 COVER, METER, UPPER
    COVER, METER, UPPER
  • 25008
    25008-0001 BRACKET-METER
    BRACKET-METER
  • 51001
    51001-0064-H8 TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
    TANK-COMP-FUEL (EBONY) (CALIF, ONLY)
  • 51001A
    51001-0064-726 TANK-COMP-FUEL (M.O.BLUE) (CALIF, ONLY)
    TANK-COMP-FUEL (M.O.BLUE) (CALIF, ONLY)
  • 51001B
    51001-0064-727 TANK-COMP-FUEL (M.D.GREEN) (CALIF, ONLY)
    TANK-COMP-FUEL (M.D.GREEN) (CALIF, ONLY)
  • 51001C
    51001-0065-H8 TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
    TANK-COMP-FUEL (EBONY) (EXCEPT CALIF.)
  • 51001D
    51001-0065-726 TANK-COMP-FUEL (M.O.BLUE) (EXCEPT CALIF.)
    TANK-COMP-FUEL (M.O.BLUE) (EXCEPT CALIF.)
  • 51001E
    51001-0065-727 TANK-COMP-FUEL (M.D.GREEN) (EXCEPT CALIF.)
    TANK-COMP-FUEL (M.D.GREEN) (EXCEPT CALIF.)
  • 51049
    51049-0003 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 52005
    52005-0002 GAUGE, FUEL
    GAUGE, FUEL
  • 92018
    92018-005 NUT, PUSH, 3MM
    NUT, PUSH, 3MM
  • 92022
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92055
    92055-1552 RING-O, ID=9
    RING-O, ID=9
  • 92075
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1736 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF, ONLY)
    SEAL, FUEL TANK CAP (CALIF, ONLY)
  • 92151
    92151-1599 BOLT, 5X12
    BOLT, 5X12
  • 92151A
    92151-1940 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 92161
    92161-0040 DAMPER, METER COVER
    DAMPER, METER COVER
  • 92161A
    92161-0042 DAMPER, FUEL TANK, CNT
    DAMPER, FUEL TANK, CNT
  • 92161B
    92161-0173 DAMPER, METER
    DAMPER, METER
  • 92192
    92192-0037 TUBE, BLUE (EXCEPT CALIF.)
    TUBE, BLUE (EXCEPT CALIF.)
