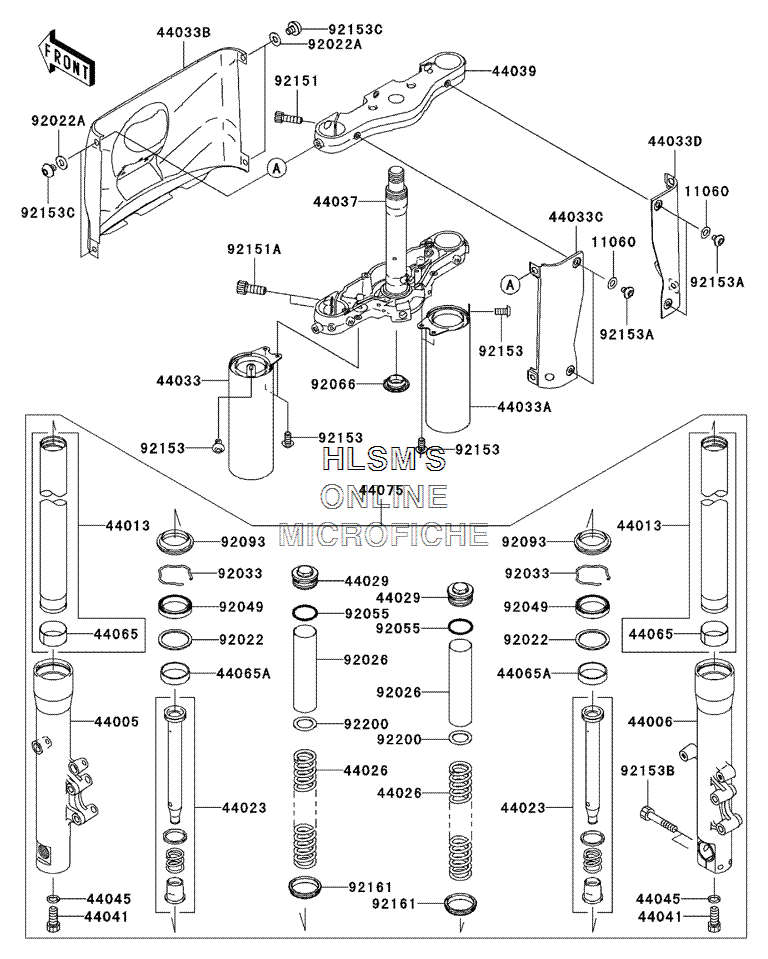

FRONT FORK B для Kawasaki Vulcan 1600 Classic - 2005 года выпуска`
-
№АртикулНазвание
-
1106011060-1994 GASKET, 6.2X12X0.3GASKET, 6.2X12X0.3
-
4400544005-1436 PIPE-LEFT FORK OUTERPIPE-LEFT FORK OUTER
-
4400644006-0006 PIPE-RIGHT FORK OUTERPIPE-RIGHT FORK OUTER
-
4401344013-0002 PIPE-FORK INNERPIPE-FORK INNER
-
4402344023-0004 CYLINDER-SET-FORKCYLINDER-SET-FORK
-
4402644026-0014 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-1154 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403344033-0011 COVER-FORK, INNER (LEFT)COVER-FORK, INNER (LEFT)
-
44033A44033-0012 COVER-FORK, INNER (RIGHT)COVER-FORK, INNER (RIGHT)
-
44033B44033-0013 COVER-FORK, CENTERCOVER-FORK, CENTER
-
44033C44033-0029 COVER-FORK, REAR (LEFT)COVER-FORK, REAR (LEFT)
-
44033D44033-0031 COVER-FORK, REAR (RIGHT)COVER-FORK, REAR (RIGHT)
-
4403744037-0030 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0032 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404144041-040 BOLT, SOCKET, FORK CYLINDERBOLT, SOCKET, FORK CYLINDER
-
4404544045-057 GASKETGASKET
-
4406544065-0003 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
44065A44065-1143 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
4407544075-1188 DAMPER-SET-FORKDAMPER-SET-FORK
-
9202292022-1299 WASHERWASHER
-
92022A92022-3743 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9202692026-0002 SPACERSPACER
-
9203392033-1077 RING-SNAPRING-SNAP
-
9204992049-0007 SEAL-OILSEAL-OIL
-
9205592055-1123 RING-ORING-O
-
9206692066-0032 PLUGPLUG
-
9209392093-1480 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215192151-1270 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92151A92151-1358 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
9215392153-0300 BOLTBOLT
-
92153A92153-0411 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92153B92153-0425 BOLTBOLT
-
92153C92153-1278 BOLT, SOCKET, 8X10BOLT, SOCKET, 8X10
-
9216192161-1343 DAMPERDAMPER
-
9220092200-1253 WASHERWASHER
