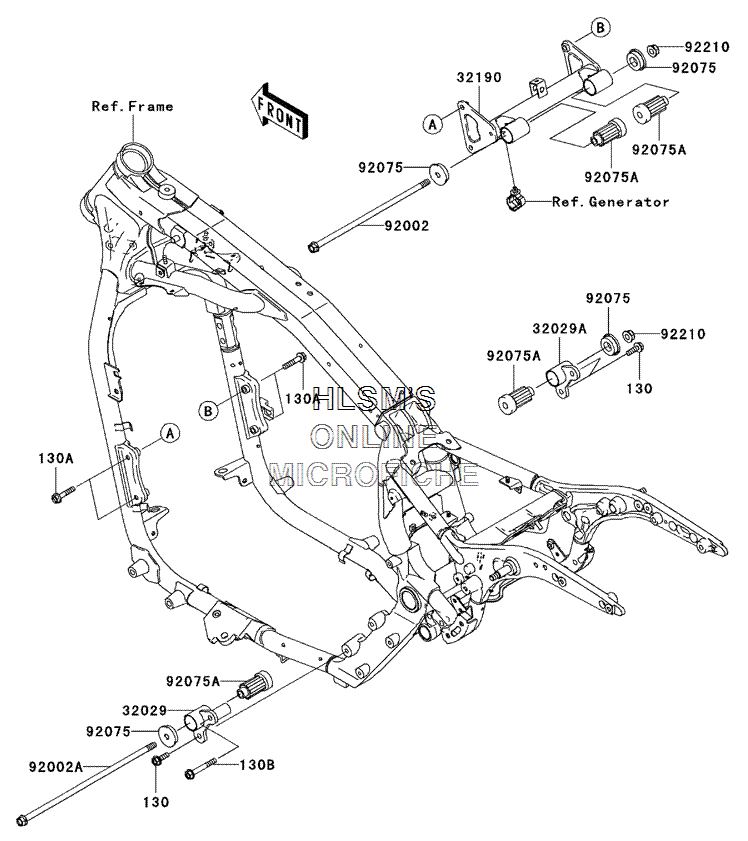

ENGINE MOUNT для Kawasaki Vulcan 1600 Classic - 2005 года выпуска
-
№АртикулНазвание
-
130130J0825 BOLT-FLANGED, 8X25 (BLACK)BOLT-FLANGED, 8X25 (BLACK)
-
130A130J0840 BOLT-FLANGED, 8X40BOLT-FLANGED, 8X40
-
130B130J0860 BOLT-FLANGED, M8X60BOLT-FLANGED, M8X60
-
3202932029-1986 BRACKET-ENGINE, REAR (LEFT)BRACKET-ENGINE, REAR (LEFT)
-
32029A32029-1987 BRACKET-ENGINE, REAR (RIGHT)BRACKET-ENGINE, REAR (RIGHT)
-
3219032190-0022 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
9200292002-1206 BOLT, FLANGED, 10X285BOLT, FLANGED, 10X285
-
92002A92002-1540 BOLT, FLANGED, 10X330BOLT, FLANGED, 10X330
-
9207592075-1738 DAMPER, ENGINE MOUNTDAMPER, ENGINE MOUNT
-
92075A92075-1739 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
