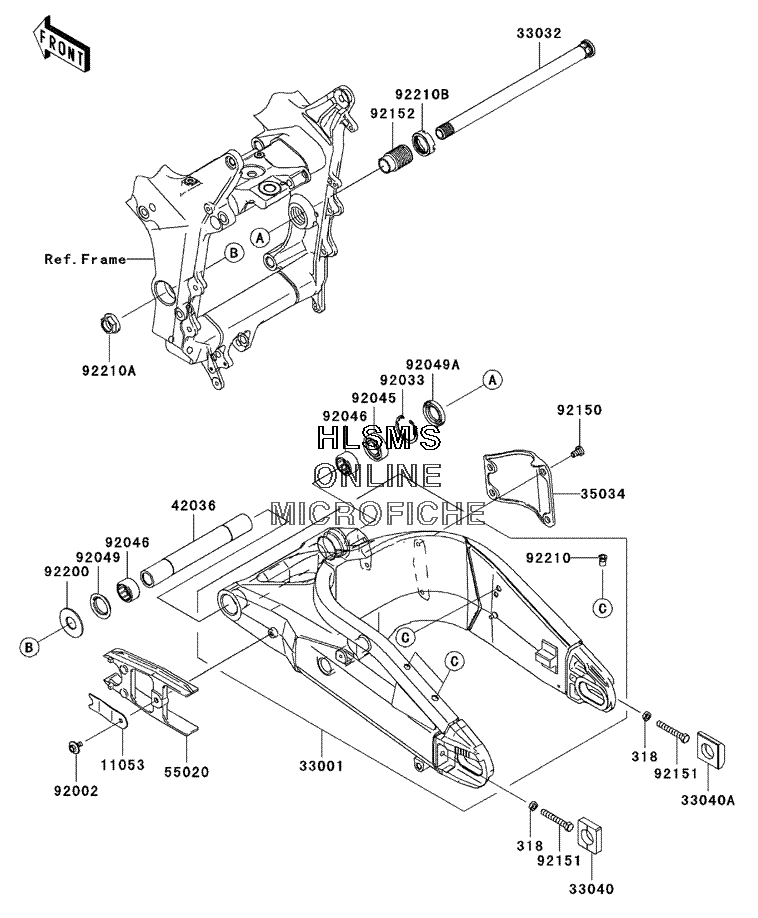

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6RR - 2005 года выпуска`
-
№АртикулНазвание
-
318318G0800 NUT, HEX, SMALL, 8MMNUT, HEX, SMALL, 8MM
-
1105311053-1691 BRACKET, CHAIN GUARDBRACKET, CHAIN GUARD
-
3300133001-0043-8F ARM, COMP, SWING (F.S.BLACK)ARM, COMP, SWING (F.S.BLACK)
-
3303233032-0010 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1114 ADJUSTER, CHAINADJUSTER, CHAIN
-
33040A33040-1180 ADJUSTER, CHAIN (RIGHT)ADJUSTER, CHAIN (RIGHT)
-
3503435034-0053-8F REINFORCE, MUFFLER GUARD (BLACK)REINFORCE, MUFFLER GUARD (BLACK)
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
5502055020-0111 GUARD, CHAINGUARD, CHAIN
-
9200292002-1187 BOLT, 6X16BOLT, 6X16
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204592045-0017 BEARING, BALL, 6004UL11BEARING, BALL, 6004UL11
-
9204692046-0008 BEARING, NEEDLE, 7E, HVS 28X34X17BEARING, NEEDLE, 7E, HVS 28X34X17
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1314 SEAL, OIL, MHSA25 42 6SEAL, OIL, MHSA25 42 6
-
9215092150-1852 BOLT, 8X15BOLT, 8X15
-
9215192151-1578 BOLT, 8X55BOLT, 8X55
-
9215292152-0154 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9220092200-1167 WASHER, 20.3X48X2.3WASHER, 20.3X48X2.3
-
9221092210-0099 NUT, 6MMNUT, 6MM
-
92210A92210-0106 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92210B92210-0134 NUT, 30MMNUT, 30MM
