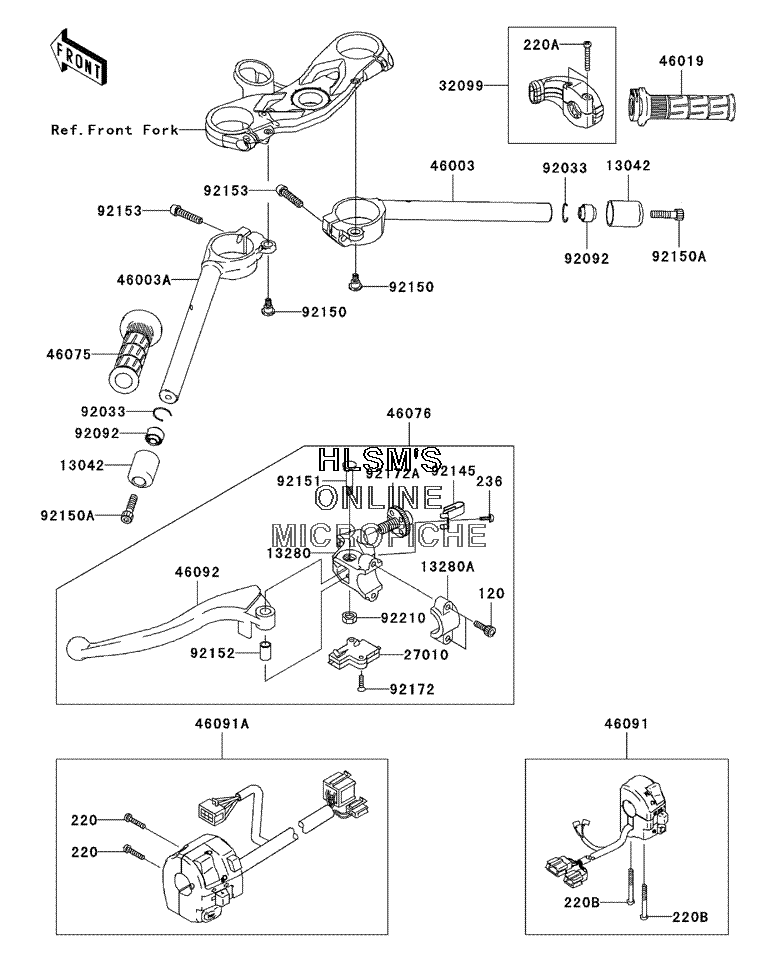

HANDLEBAR для Kawasaki NINJA ZX-6RR - 2005 года выпуска

  • №
    Артикул
    Название
  • 120
    120T0620 BOLT, SOCKET, M6X20
    BOLT, SOCKET, M6X20
  • 220
    220C0525 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220C0535 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220B
    220C0545 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 236
    236C0410 SCREW, PAN, WSP, CROS, 4X10
    SCREW, PAN, WSP, CROS, 4X10
  • 13042
    13042-1133 WEIGHT, HANDLE
    WEIGHT, HANDLE
  • 13280
    13280-0034 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 13280A
    13280-0035 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 27010
    27010-1492 SWITCH, CLUTCH
    SWITCH, CLUTCH
  • 32099
    32099-1193 CASE, THROTTLE CABLE
    CASE, THROTTLE CABLE
  • 46003
    46003-0068 HANDLE (RIGHT)
    HANDLE (RIGHT)
  • 46003A
    46003-1590 HANDLE (LEFT)
    HANDLE (LEFT)
  • 46019
    46019-0001 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46075
    46075-1144 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-0024 LEVER, ASSY, GRIP, CLUTCH
    LEVER, ASSY, GRIP, CLUTCH
  • 46091
    46091-0040 HOUSING, ASSY, CONTROL (RIGHT)
    HOUSING, ASSY, CONTROL (RIGHT)
  • 46091A
    46091-0054 HOUSING, ASSY, CONTROL (LEFT)
    HOUSING, ASSY, CONTROL (LEFT)
  • 46092
    46092-0006 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 92033
    92033-1102 RING, SNAP, OD=22.2
    RING, SNAP, OD=22.2
  • 92092
    92092-1075 BUSHING, RUBBER, HANDLE
    BUSHING, RUBBER, HANDLE
  • 92145
    92145-1286 SPRING
    SPRING
  • 92150
    92150-1090 BOLT, 6MM
    BOLT, 6MM
  • 92150A
    92150-1604 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92151
    92151-1523 BOLT
    BOLT
  • 92152
    92152-0103 COLLAR
    COLLAR
  • 92153
    92153-0907 BOLT, SOCKET, 8X35
    BOLT, SOCKET, 8X35
  • 92172
    92172-0183 SCREW, 3X16
    SCREW, 3X16
  • 92172A
    92172-1060 SCREW, ADJUST NUT
    SCREW, ADJUST NUT
  • 92210
    92210-0006 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
