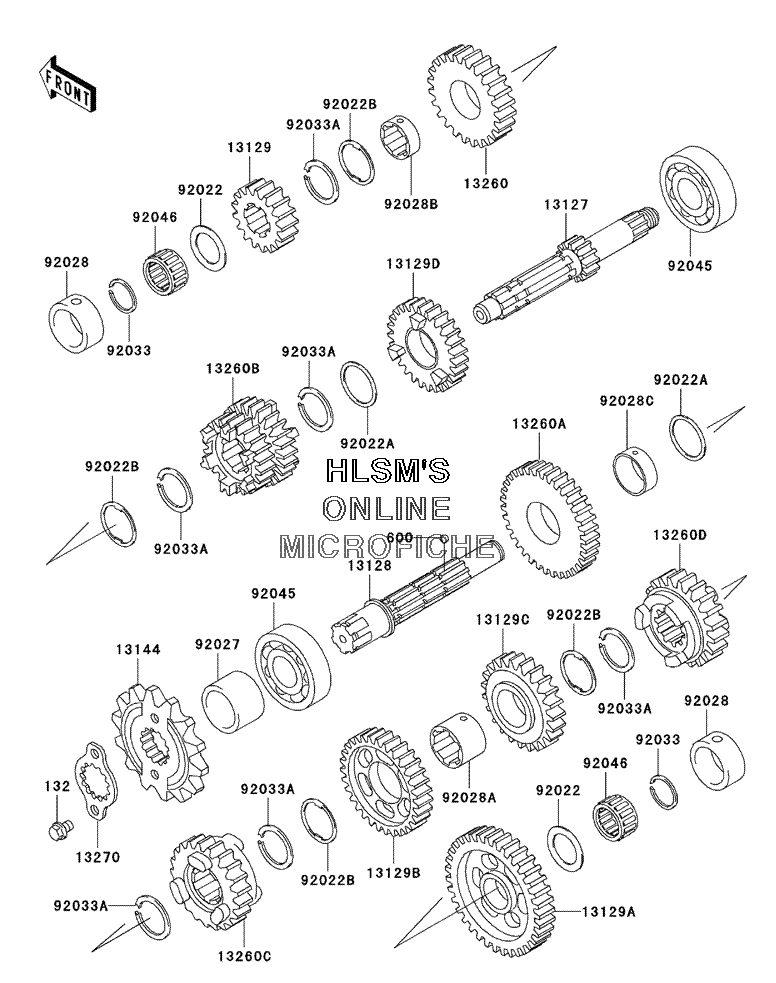

TRANSMISSION для Kawasaki NINJA 250R - 2005 года выпуска
-
№АртикулНазвание
-
132132G0608 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1134 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-1131 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1086 GEAR, INPUT 2ND (19 TEETH)GEAR, INPUT 2ND (19 TEETH)
-
13129A13129-1254 GEAR, OUTPUT LOW (39 TEETH)GEAR, OUTPUT LOW (39 TEETH)
-
13129B13129-1781 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
13129C13129-1782 GEAR, OUTPUT 4TH (29 TEETH)GEAR, OUTPUT 4TH (29 TEETH)
-
13129D13129-1882 GEAR, INPUT 5TH (27 TEETH)GEAR, INPUT 5TH (27 TEETH)
-
1314413144-1126 SPROCKET, OUTPUT (14 TEETH)SPROCKET, OUTPUT (14 TEETH)
-
1326013260-1033 GEAR, INPUT TOP (28 TEETH)GEAR, INPUT TOP (28 TEETH)
-
13260A13260-1034 GEAR, OUTPUT 2ND (34 TEETH)GEAR, OUTPUT 2ND (34 TEETH)
-
13260B13260-1098 GEAR, INPUT 3RD & 4TH (22 TEETH AND 25 TEETH)GEAR, INPUT 3RD & 4TH (22 TEETH AND 25 TEETH)
-
13260C13260-1099 GEAR, OUTPUT TOP (25 TEETH)GEAR, OUTPUT TOP (25 TEETH)
-
13260D13260-1267 GEAR, OUTPUT 5TH (27 TEETH)GEAR, OUTPUT 5TH (27 TEETH)
-
1327013270-1060 PLATE, SPROCKETPLATE, SPROCKET
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-161 WASHER, 25.3X30X1WASHER, 25.3X30X1
-
92022B92022-1935 WASHER, 23X30X1.0WASHER, 23X30X1.0
-
9202792027-1302 COLLAR, ENGINE SPROCKETCOLLAR, ENGINE SPROCKET
-
9202892028-1426 BUSHING, 25X33X14BUSHING, 25X33X14
-
92028A92028-1437 BUSHINGBUSHING
-
92028B92028-1563 BUSHING, TOP GEARBUSHING, TOP GEAR
-
92028C92028-1564 BUSHING, 9.4X25X28BUSHING, 9.4X25X28
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
9204592045-1013 BEARING, BALL, #6205NX3BEARING, BALL, #6205NX3
-
9204692046-044 BEARING, NEEDLE, 20R2513PBEARING, NEEDLE, 20R2513P
