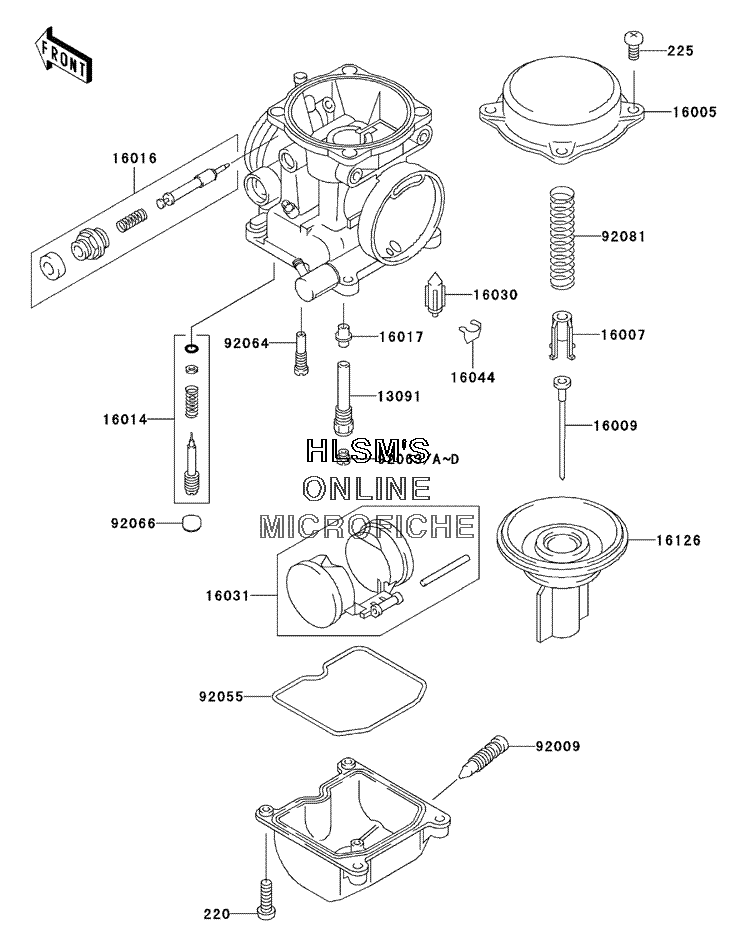

CARBURETOR PARTS для Kawasaki NINJA 250R - 2005 года выпуска

  • №
    Артикул
    Название
  • 220
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 13091
    13091-1425 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 16005
    16005-1056 TOP, CHAMBER, MIXING
    TOP, CHAMBER, MIXING
  • 16007
    16007-1120 SEAT, SPRING, THROTTLE VALVE
    SEAT, SPRING, THROTTLE VALVE
  • 16009
    16009-1461 NEEDLE, JET, N16I
    NEEDLE, JET, N16I
  • 16014
    16014-1081 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1090 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1326 JET, NEEDLE
    JET, NEEDLE
  • 16030
    16030-1007 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1198 VALVE, VACUUM
    VALVE, VACUUM
  • 92009
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1008 JET, MAIN, #100 (OPT)
    JET, MAIN, #100 (OPT)
  • 92063A
    92063-1009 JET, MAIN, #105
    JET, MAIN, #105
  • 92063B
    92063-1114 JET, MAIN, #110 (OPT)
    JET, MAIN, #110 (OPT)
  • 92063C
    92063-1115 JET, MAIN, #102 (OPT)
    JET, MAIN, #102 (OPT)
  • 92063D
    92063-1116 JET, MAIN, #108 (OPT)
    JET, MAIN, #108 (OPT)
  • 92064
    92064-1050 JET, PILOT, #38
    JET, PILOT, #38
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1925 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
