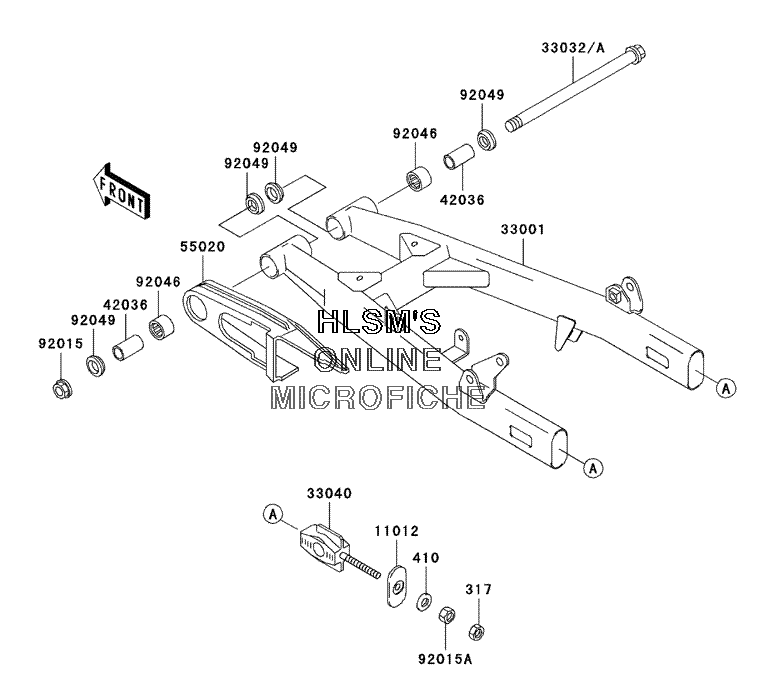

SUSPENSION - SWINGARM для Kawasaki Eliminator 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 317
    317C0800 NUT, HEX, SMALL, 8MM (BLACK)
    NUT, HEX, SMALL, 8MM (BLACK)
  • 410
    410F0800 WASHER, PLAIN, SMALL, 8MM (BLACK)
    WASHER, PLAIN, SMALL, 8MM (BLACK)
  • 11012
    11012-1819 CAP, CHAIN ADJUSTER
    CAP, CHAIN ADJUSTER
  • 33001
    33001-1599 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-0001 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1178 ADJUSTER, CHAIN, INNER
    ADJUSTER, CHAIN, INNER
  • 42036
    42036-1371 SLEEVE, 14.1X22X57
    SLEEVE, 14.1X22X57
  • 55020
    55020-1689 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1407 NUT, 14MM
    NUT, 14MM
  • 92015A
    92015-1959 NUT, 8MM
    NUT, 8MM
  • 92046
    92046-1174 BEARING, NEEDLE, TA2230Z
    BEARING, NEEDLE, TA2230Z
  • 92049
    92049-1289 SEAL, OIL, MHA22X29X5.7F
    SEAL, OIL, MHA22X29X5.7F
