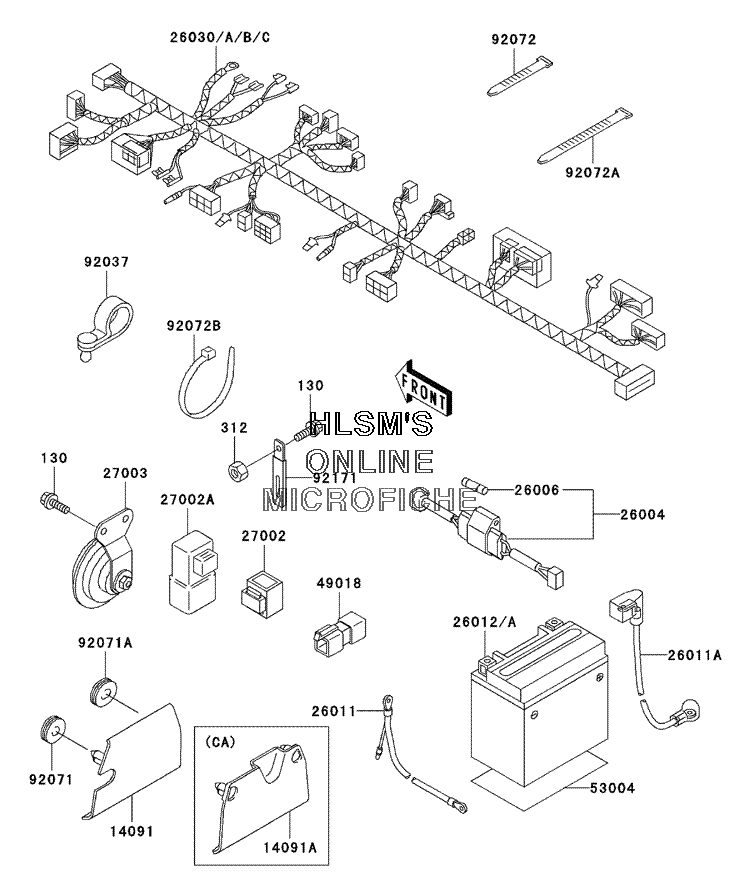

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Eliminator 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 312
    312C0600 NUT, HEX, 6MM (BLACK)
    NUT, HEX, 6MM (BLACK)
  • 14091
    14091-1123 COVER, HEAD GUSSET (EXCEPT CALIF.)
    COVER, HEAD GUSSET (EXCEPT CALIF.)
  • 14091A
    14091-1405 COVER, HEAD GUSSET (CALIF. ONLY)
    COVER, HEAD GUSSET (CALIF. ONLY)
  • 26004
    26004-1113 FUSE, ASSY
    FUSE, ASSY
  • 26006
    26006-1003 FUSE, 15A, L=30
    FUSE, 15A, L=30
  • 26011
    26011-1670 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26011A
    26011-1674 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26012
    26012-0051 BATTERY, FB9, B, 12V 9AH
    BATTERY, FB9, B, 12V 9AH
  • 26012A
    26012-1361 BATTERY, YB9, B, 12V 9AH
    BATTERY, YB9, B, 12V 9AH
  • 26030B
    26030-1992 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26030C
    26030-1993 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-1053 RELAY, ASSY, TURN SIGNAL
    RELAY, ASSY, TURN SIGNAL
  • 27002A
    27002-1086 RELAY, ASSY
    RELAY, ASSY
  • 27003
    27003-1423 HORN
    HORN
  • 49018
    49018-1052 DIODE
    DIODE
  • 53004
    53004-1123 MAT, BATTERY
    MAT, BATTERY
  • 92037
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92071A
    92071-1043 GROMMET
    GROMMET
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92072A
    92072-1195 BAND, L=202
    BAND, L=202
  • 92072B
    92072-1197 BAND, L=365
    BAND, L=365
  • 92171
    92171-1425 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
