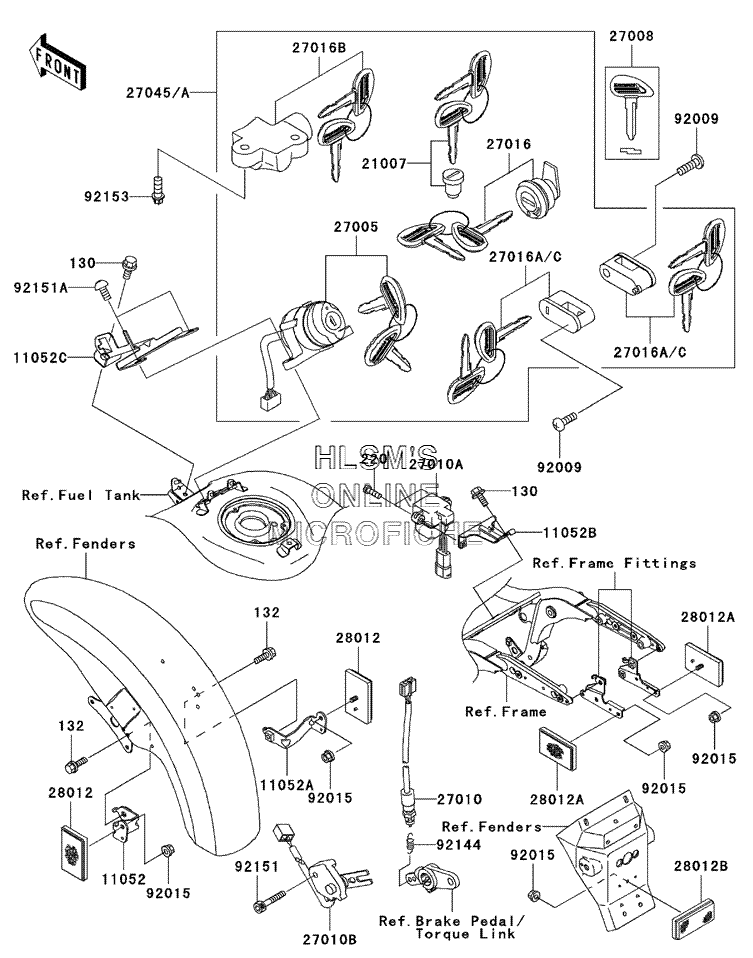

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 1600 Mean Streak - 2004 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0610 BOLT, FLANGED
    BOLT, FLANGED
  • 132
    132Y0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220C0420 SCREW, PAN, CROS, 4X20
    SCREW, PAN, CROS, 4X20
  • 11052
    11052-1284 BRACKET, REFLECTOR, FRONT (LEFT)
    BRACKET, REFLECTOR, FRONT (LEFT)
  • 11052A
    11052-1285 BRACKET, REFLECTOR, FRONT (RIGHT)
    BRACKET, REFLECTOR, FRONT (RIGHT)
  • 11052B
    11052-1302 BRACKET, DOWN SENSOR
    BRACKET, DOWN SENSOR
  • 11052C
    11052-1494 BRACKET, IGNITION SWITCH
    BRACKET, IGNITION SWITCH
  • 21007
    21007-5049 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27005
    27005-0001 SWITCH, ASSY, IGNITION
    SWITCH, ASSY, IGNITION
  • 27008
    27008-1211 KEY, LOCK, BLANK (OPTION)
    KEY, LOCK, BLANK (OPTION)
  • 27010
    27010-1412 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27010A
    27010-1416 SWITCH, DOWN SENSOR
    SWITCH, DOWN SENSOR
  • 27010B
    27010-1470 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27016
    27016-5279 LOCK, ASSY, LID
    LOCK, ASSY, LID
  • 27016A
    27016-5280 LOCK, ASSY, HELMET
    LOCK, ASSY, HELMET
  • 27016B
    27016-5298 LOCK, ASSY, STEERING
    LOCK, ASSY, STEERING
  • 27045
    27045-5211 SWITCH, ASSY
    SWITCH, ASSY
  • 28012
    28012-1009 REFLECTOR, REFLEX, FRONT
    REFLECTOR, REFLEX, FRONT
  • 28012A
    28012-1051 REFLECTOR, REFLEX, REAR
    REFLECTOR, REFLEX, REAR
  • 28012B
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 92009
    92009-1296 SCREW, 5X12
    SCREW, 5X12
  • 92015
    92015-1656 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92144
    92144-1141 SPRING, REAR BRAKE SWITCH
    SPRING, REAR BRAKE SWITCH
  • 92151
    92151-1390 BOLT, SOCKET, 6X35
    BOLT, SOCKET, 6X35
  • 92151A
    92151-1751 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92153
    92153-1273 BOLT, TORX, 8X22
    BOLT, TORX, 8X22
