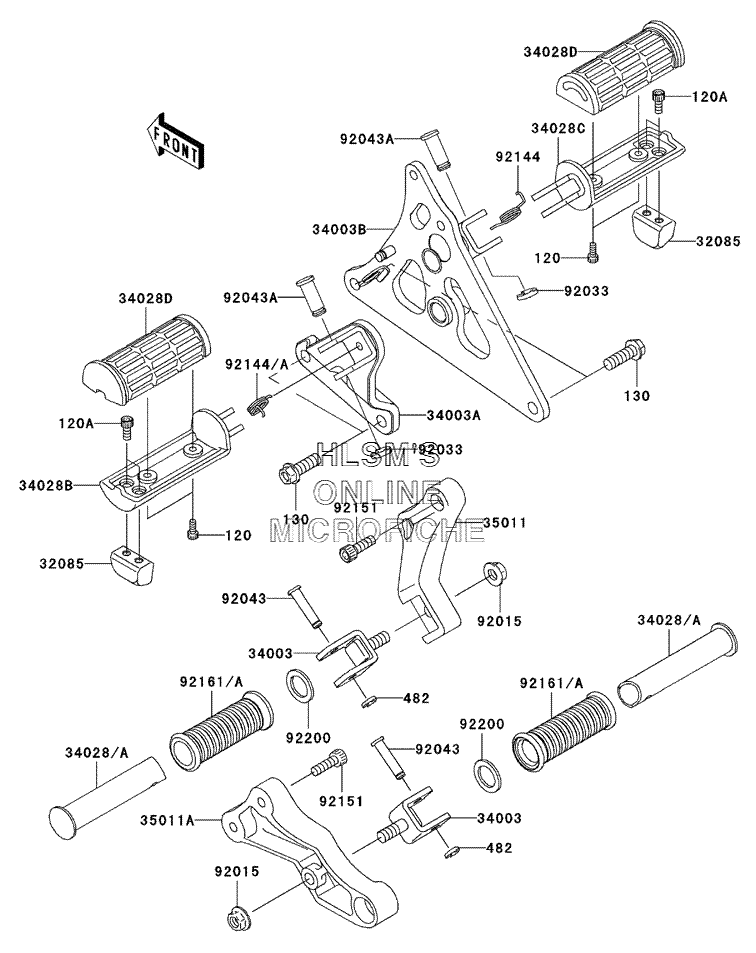

FOOTRESTS для Kawasaki Vulcan 1600 Mean Streak - 2004 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120S0614 BOLT, SOCKET, 6X14 (BLACK)
    BOLT, SOCKET, 6X14 (BLACK)
  • 130
    130J1030 BOLT, FLANGED, 10X30
    BOLT, FLANGED, 10X30
  • 482
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 32085
    32085-1534 STOPPER, BANK SENSOR
    STOPPER, BANK SENSOR
  • 34003
    34003-0015 HOLDER, STEP, REAR
    HOLDER, STEP, REAR
  • 34003A
    34003-1506 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003B
    34003-1507 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34028
    34028-0008 STEP, REAR
    STEP, REAR
  • 34028B
    34028-1519 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028C
    34028-1520 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 34028D
    34028-1522 STEP, RUBBER
    STEP, RUBBER
  • 35011
    35011-1770 STAY, REAR STEP (LEFT)
    STAY, REAR STEP (LEFT)
  • 35011A
    35011-1922 STAY, REAR STEP (RIGHT)
    STAY, REAR STEP (RIGHT)
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92033
    92033-1166 RING, SNAP, 10MM
    RING, SNAP, 10MM
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92043A
    92043-1358 PIN, 12X37
    PIN, 12X37
  • 92144
    92144-1126 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92144A
    92144-1210 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92151
    92151-1525 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92161A
    92161-1339 DAMPER, STEP
    DAMPER, STEP
  • 92200
    92200-1482 WASHER, 22.5X33X2.3
    WASHER, 22.5X33X2.3
