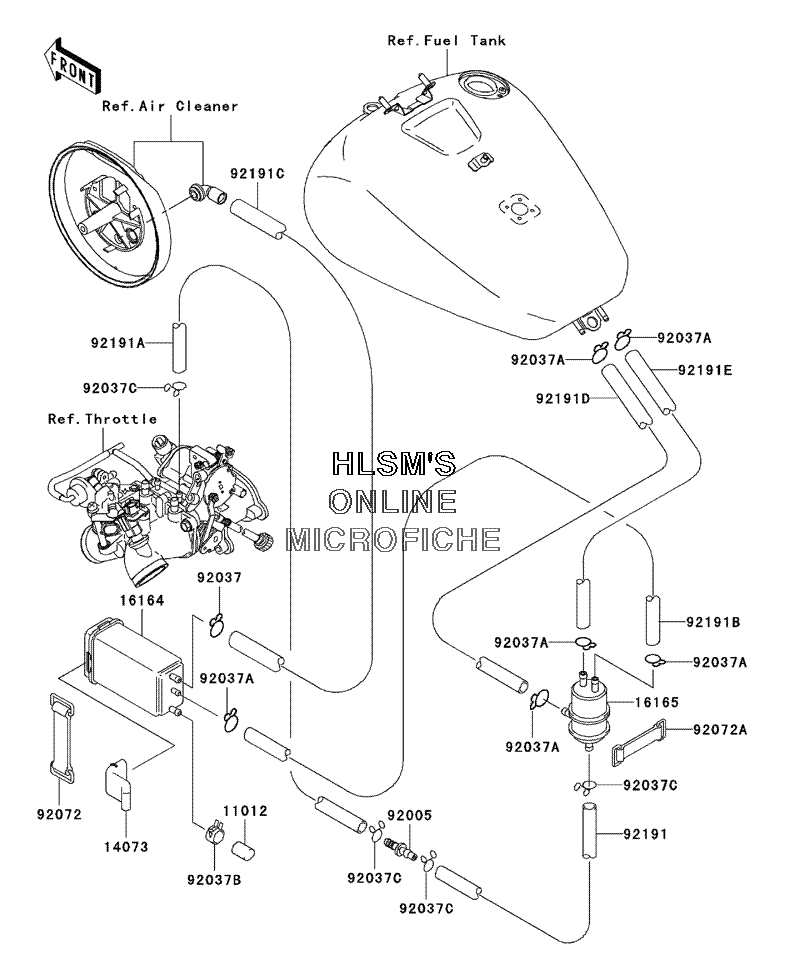

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 1500 Nomad Fi - 2004 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1388 CAP, CANISTER
    CAP, CANISTER
  • 14073
    14073-1219 DUCT, CANISTER
    DUCT, CANISTER
  • 16164
    16164-1070 CANISTER
    CANISTER
  • 16165
    16165-1001 SEPARATOR
    SEPARATOR
  • 92005
    92005-1206 FITTING
    FITTING
  • 92037
    92037-1104 CLAMP, HOSE
    CLAMP, HOSE
  • 92037A
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037B
    92037-1512 CLAMP, CANISTER
    CLAMP, CANISTER
  • 92037C
    92037-1712 CLAMP
    CLAMP
  • 92072
    92072-1188 BAND, L=150
    BAND, L=150
  • 92072A
    92072-1419 BAND, L=50
    BAND, L=50
  • 92191
    92191-1375 TUBE, THROTTLE, SEPARATOR (WHITE)
    TUBE, THROTTLE, SEPARATOR (WHITE)
  • 92191A
    92191-1414 TUBE, 4X9X180 (WHITE)
    TUBE, 4X9X180 (WHITE)
  • 92191B
    92191-1462 TUBE, SEPARATOR, CANISTER (BLUE)
    TUBE, SEPARATOR, CANISTER (BLUE)
  • 92191C
    92191-1530 TUBE, CANISTER, CLEANER (GREEN)
    TUBE, CANISTER, CLEANER (GREEN)
  • 92191D
    92191-1695 TUBE, TANK, SEPARATOR (RED)
    TUBE, TANK, SEPARATOR (RED)
  • 92191E
    92191-1696 TUBE, TANK, SEPARATOR (BLUE)
    TUBE, TANK, SEPARATOR (BLUE)
