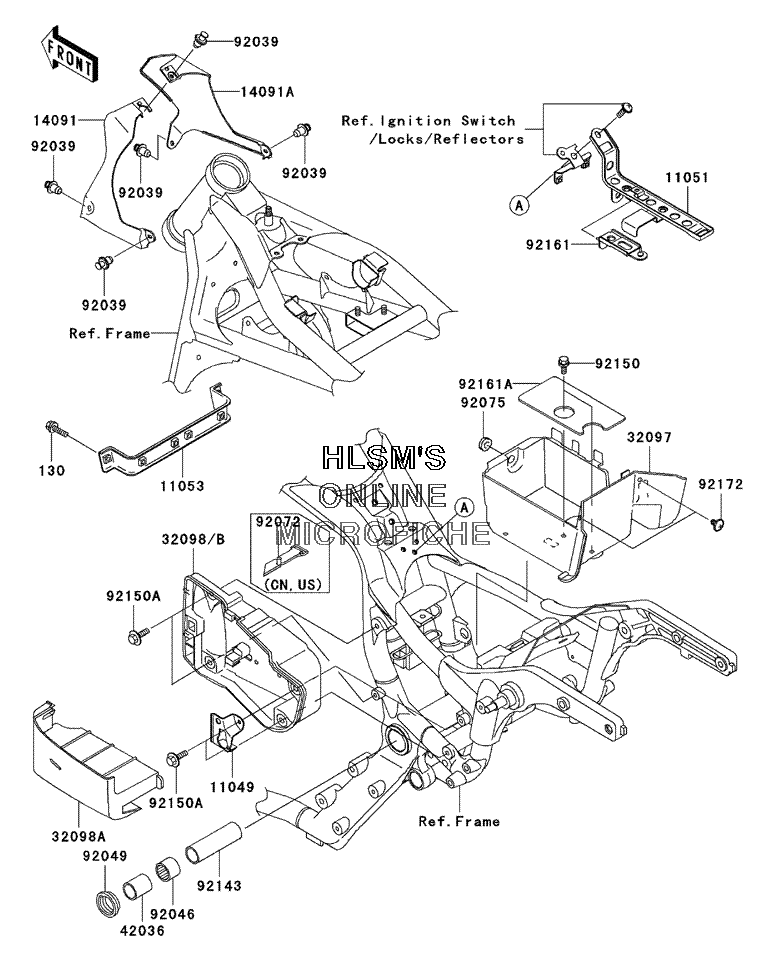

FRAME FITTINGS для Kawasaki Vulcan 1500 Nomad Fi - 2004 года выпуска`
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
1104911049-1600 BRACKET, LOCKBRACKET, LOCK
-
1105111051-1798 BRACKET, BATTERY BANDBRACKET, BATTERY BAND
-
1105311053-0434 BRACKET, REGULATORBRACKET, REGULATOR
-
1409114091-1285 COVER, HEAD PIPE, LEFTCOVER, HEAD PIPE, LEFT
-
14091A14091-1286 COVER, HEAD PIPE, RIGHTCOVER, HEAD PIPE, RIGHT
-
3209732097-1175 CASE, BATTERYCASE, BATTERY
-
3209832098-1125 CASE, TOOL (EXCEPT CALIF.)CASE, TOOL (EXCEPT CALIF.)
-
32098A32098-1126 CASE, TOOL, COVERCASE, TOOL, COVER
-
32098B32098-1127 CASE, TOOL (CALIF. ONLY)CASE, TOOL (CALIF. ONLY)
-
4203642036-1330 SLEEVE, L=45SLEEVE, L=45
-
9203992039-1227 RIVETRIVET
-
9204692046-1202 BEARING, NEEDLE, BM2824BEARING, NEEDLE, BM2824
-
9204992049-1181 SEAL, OILSEAL, OIL
-
9207292072-1331 BAND, L=470 (EXCEPT CALIF.)BAND, L=470 (EXCEPT CALIF.)
-
9207592075-1067 DAMPERDAMPER
-
9214392143-1878 COLLAR, 20.2X27X90COLLAR, 20.2X27X90
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
92150A92150-1198 BOLT, 6X16BOLT, 6X16
-
9216192161-1096 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
-
92161A92161-1097 DAMPER, BATTERYDAMPER, BATTERY
-
9217292172-0005 SCREW, 6X10SCREW, 6X10
