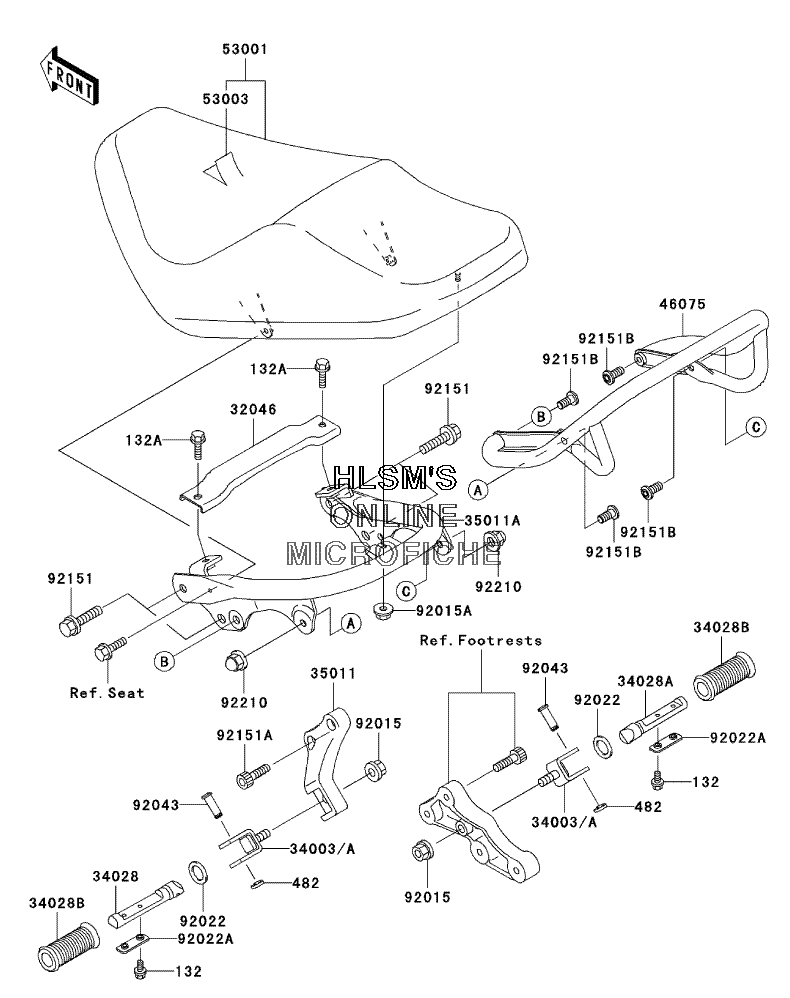

SEAT B для Kawasaki Vulcan 1500 Drifter - 2004 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0510 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132J0816 BOLT, FLANGED, SMALL, 8X16
    BOLT, FLANGED, SMALL, 8X16
  • 482
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 32046
    32046-1478 BRACKET, SEAT
    BRACKET, SEAT
  • 34003
    34003-0015 HOLDER, STEP, REAR
    HOLDER, STEP, REAR
  • 34028
    34028-1219 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028A
    34028-1220 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 34028B
    34028-1221 STEP, REAR, RUBBER
    STEP, REAR, RUBBER
  • 35011
    35011-1770 STAY, REAR STEP (LEFT)
    STAY, REAR STEP (LEFT)
  • 35011A
    35011-1968 STAY, SEAT
    STAY, SEAT
  • 46075
    46075-1186 GRIP
    GRIP
  • 53001
    53001-1886-MA SEAT, ASSY, DUAL (BLACK)
    SEAT, ASSY, DUAL (BLACK)
  • 53003
    53003-1431-MA LEATHER, SEAT (BLACK)
    LEATHER, SEAT (BLACK)
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1603 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92022A
    92022-1874 WASHER, STEP
    WASHER, STEP
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92151
    92151-1440 BOLT, FLANGED, 10X18
    BOLT, FLANGED, 10X18
  • 92151A
    92151-1525 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92151B
    92151-1577 BOLT, SOCKET, 10X22
    BOLT, SOCKET, 10X22
  • 92210
    92210-1189 NUT, CAP, 10MM
    NUT, CAP, 10MM
