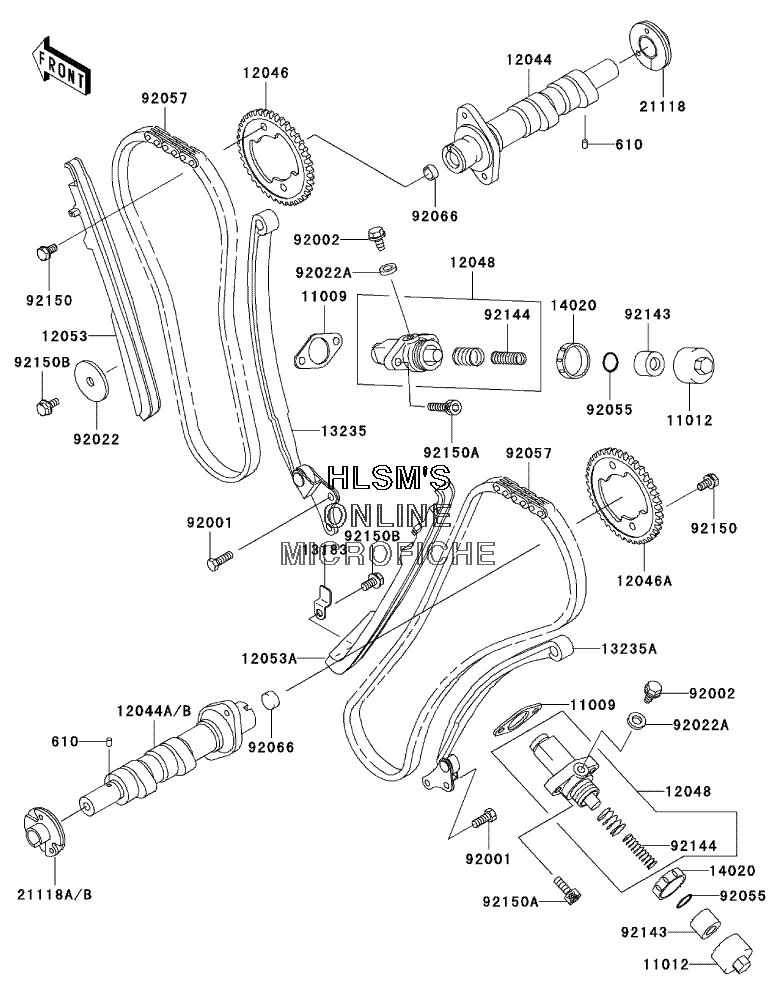

CAMSHAFT(S) W/ TENSIONER для Kawasaki Vulcan 1500 Drifter - 2004 года выпуска

  • №
    Артикул
    Название
  • 610
    610A0406 ROLLER, 4X6
    ROLLER, 4X6
  • 11009
    11009-1858 GASKET, TENSIONER
    GASKET, TENSIONER
  • 11012
    11012-1959 CAP, TENSIONER
    CAP, TENSIONER
  • 12044
    12044-1200 CAMSHAFT, VALVE, FRONT
    CAMSHAFT, VALVE, FRONT
  • 12044B
    12044-1494 CAMSHAFT, VALVE, REAR
    CAMSHAFT, VALVE, REAR
  • 12046
    12046-1175 SPROCKET, CAMSHAFT, FRONT (46 TEETH)
    SPROCKET, CAMSHAFT, FRONT (46 TEETH)
  • 12046A
    12046-1176 SPROCKET, CAMSHAFT, REAR (46 TEETH)
    SPROCKET, CAMSHAFT, REAR (46 TEETH)
  • 12048
    12048-1160 TENSIONER, ASSY
    TENSIONER, ASSY
  • 12053
    12053-1219 GUIDE, CHAIN, FRONT, TENSIONER
    GUIDE, CHAIN, FRONT, TENSIONER
  • 12053A
    12053-1221 GUIDE, CHAIN, REAR, TENSIONER
    GUIDE, CHAIN, REAR, TENSIONER
  • 13183
    13183-1096 PLATE
    PLATE
  • 13235
    13235-1070 GUIDE, COMP, FRONT
    GUIDE, COMP, FRONT
  • 13235A
    13235-1071 GUIDE, COMP, REAR
    GUIDE, COMP, REAR
  • 14020
    14020-1054 RETAINER, TENSIONER
    RETAINER, TENSIONER
  • 21118
    21118-1061 DECOMPRESSOR, FRONT
    DECOMPRESSOR, FRONT
  • 21118B
    21118-1085 DECOMPRESSOR, REAR
    DECOMPRESSOR, REAR
  • 92001
    92001-1457 BOLT, 6X16
    BOLT, 6X16
  • 92002
    92002-1356 BOLT, 6MM
    BOLT, 6MM
  • 92022
    92022-227 WASHER, 7X27X1.6
    WASHER, 7X27X1.6
  • 92022A
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92055
    92055-1555 O-RING, TENSIONER
    O-RING, TENSIONER
  • 92057
    92057-1422 CHAIN, CAM, 92RH2010
    CHAIN, CAM, 92RH2010
  • 92066
    92066-1198 PLUG
    PLUG
  • 92143
    92143-1836 COLLAR, TENSIONER
    COLLAR, TENSIONER
  • 92144
    92144-1921 SPRING, TENSIONER
    SPRING, TENSIONER
  • 92150
    92150-1725 BOLT, FLANGED, 6X11
    BOLT, FLANGED, 6X11
  • 92150A
    92150-1795 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92150B
    92150-1868 BOLT, 6X12
    BOLT, 6X12
