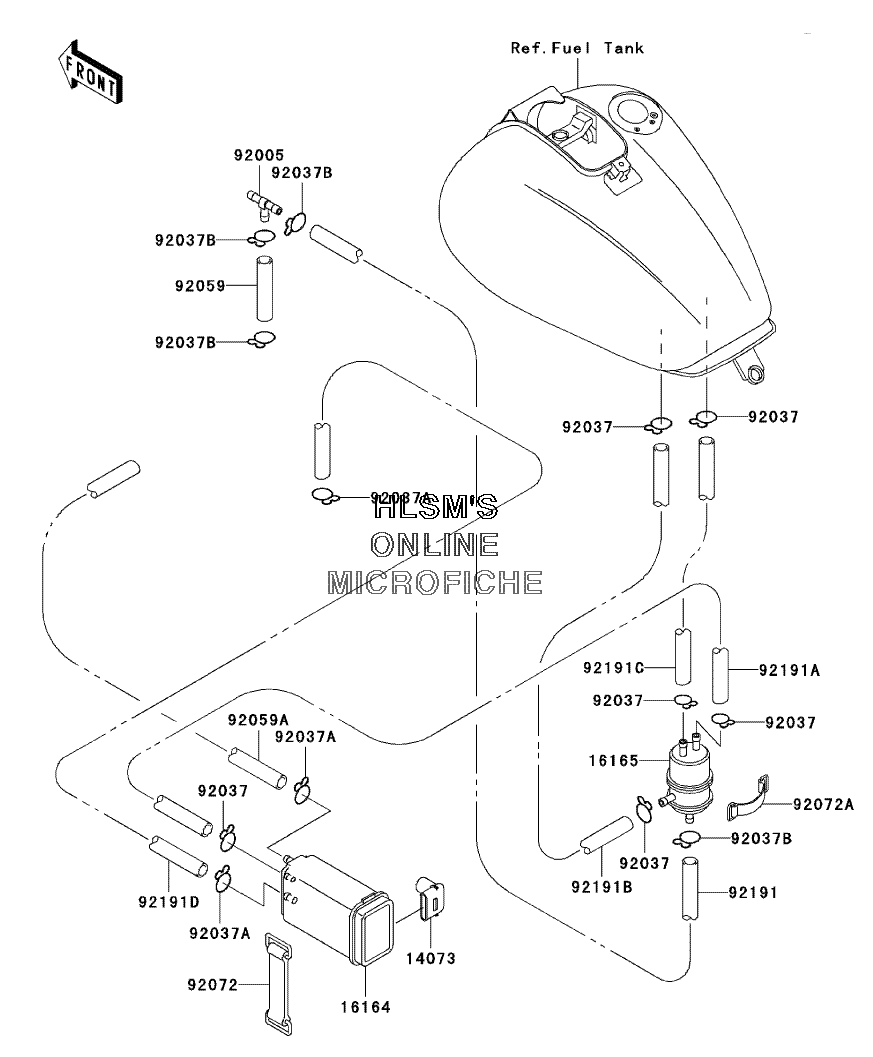

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 1500 Classic - 2004 года выпуска
-
№АртикулНазвание
-
1407314073-1219 DUCT, CANISTERDUCT, CANISTER
-
1616416164-1070 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1712 CLAMPCLAMP
-
9205992059-1193 TUBE, 4X9X50TUBE, 4X9X50
-
92059A92059-1398 TUBE, 7X12X740 (GREEN)TUBE, 7X12X740 (GREEN)
-
9207292072-1188 BAND, L=150BAND, L=150
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9219192191-1062 TUBE (WHITE)TUBE (WHITE)
-
92191A92191-1070 TUBE, 5X8X232 (BLUE)TUBE, 5X8X232 (BLUE)
-
92191B92191-1120 TUBE, TANK, SEPARATOR (RED)TUBE, TANK, SEPARATOR (RED)
-
92191C92191-1121 TUBE, TANK, SEPARATOR (BLUE)TUBE, TANK, SEPARATOR (BLUE)
-
92191D92191-1267 TUBE, L=520 (YELLOW)TUBE, L=520 (YELLOW)
