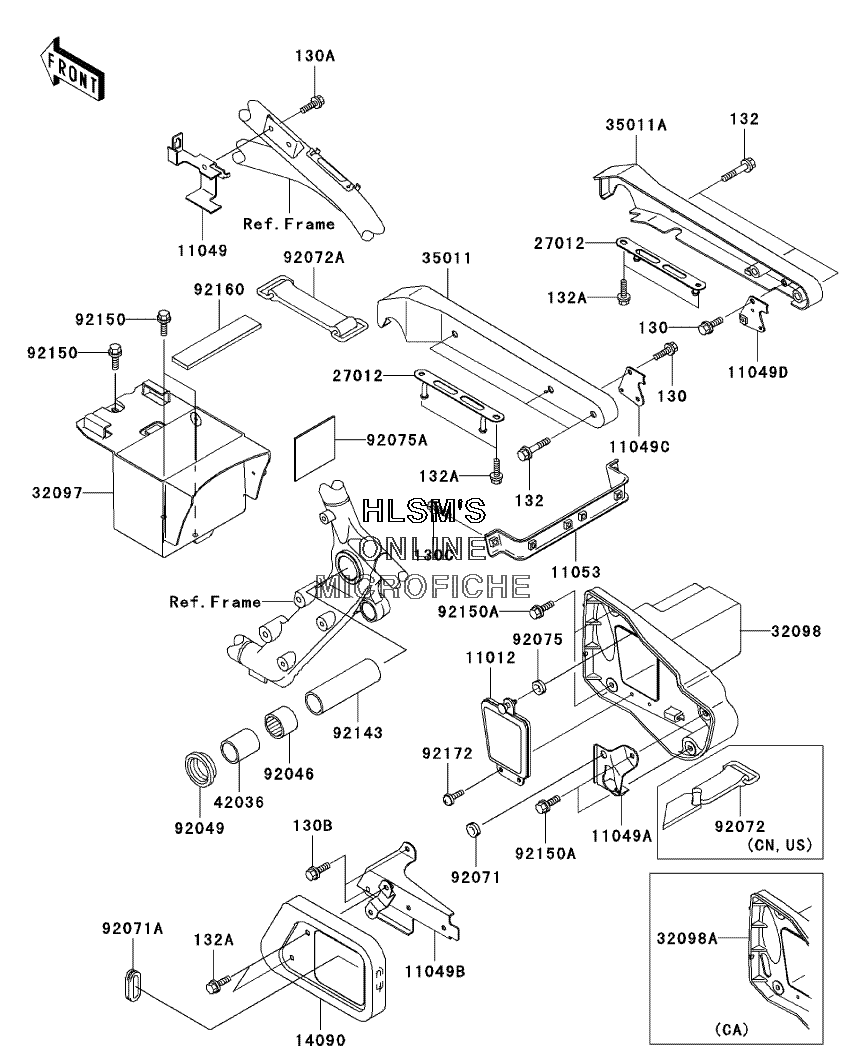

FRAME FITTINGS для Kawasaki Vulcan 1500 Classic - 2004 года выпуска

  • №
    Артикул
    Название
  • 130
    130H0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 130A
    130J0610 BOLT, FLANGED
    BOLT, FLANGED
  • 130B
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 130C
    130J0616 BOLT, FLANGED, 6X16 (BLACK)
    BOLT, FLANGED, 6X16 (BLACK)
  • 132
    132E0845 BOLT, FLANGED, SMALL, 8X45
    BOLT, FLANGED, SMALL, 8X45
  • 132A
    132J0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 11012
    11012-1956 CAP, TOOL CASE
    CAP, TOOL CASE
  • 11049
    11049-1599 BRACKET, FUEL PUMP
    BRACKET, FUEL PUMP
  • 11049A
    11049-1600 BRACKET, LOCK
    BRACKET, LOCK
  • 11049B
    11049-1607 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11049C
    11049-1624 BRACKET, HELMET LOCK (LEFT)
    BRACKET, HELMET LOCK (LEFT)
  • 11049D
    11049-1625 BRACKET, HELMET LOCK (RIGHT)
    BRACKET, HELMET LOCK (RIGHT)
  • 11053
    11053-0434 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 14090
    14090-1940 COVER, REGULATOR
    COVER, REGULATOR
  • 27012
    27012-1524 HOOK, BUNGEE CORD
    HOOK, BUNGEE CORD
  • 32097
    32097-1161 CASE, BATTERY
    CASE, BATTERY
  • 32098
    32098-1109 CASE, TOOL (EXCEPT CALIF.)
    CASE, TOOL (EXCEPT CALIF.)
  • 32098A
    32098-1124 CASE, TOOL (CALIF. ONLY)
    CASE, TOOL (CALIF. ONLY)
  • 35011
    35011-1868 STAY, REAR FENDER (LEFT)
    STAY, REAR FENDER (LEFT)
  • 35011A
    35011-1869 STAY, REAR FENDER (RIGHT)
    STAY, REAR FENDER (RIGHT)
  • 42036
    42036-1330 SLEEVE, L=45
    SLEEVE, L=45
  • 92046
    92046-1202 BEARING, NEEDLE, BM2824
    BEARING, NEEDLE, BM2824
  • 92049
    92049-1181 SEAL, OIL
    SEAL, OIL
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92071A
    92071-1187 GROMMET
    GROMMET
  • 92072
    92072-1331 BAND, L=470 (EXCEPT CALIF.)
    BAND, L=470 (EXCEPT CALIF.)
  • 92072A
    92072-1384 BAND
    BAND
  • 92075
    92075-1629 DAMPER
    DAMPER
  • 92075A
    92075-1864 DAMPER, BATTERY
    DAMPER, BATTERY
  • 92143
    92143-1878 COLLAR, 20.2X27X90
    COLLAR, 20.2X27X90
  • 92150
    92150-1133 BOLT, 6X14
    BOLT, 6X14
  • 92150A
    92150-1198 BOLT, 6X16
    BOLT, 6X16
  • 92160
    92160-1779 DAMPER
    DAMPER
  • 92172
    92172-0006 SCREW, TAPPING, 5X14
    SCREW, TAPPING, 5X14
