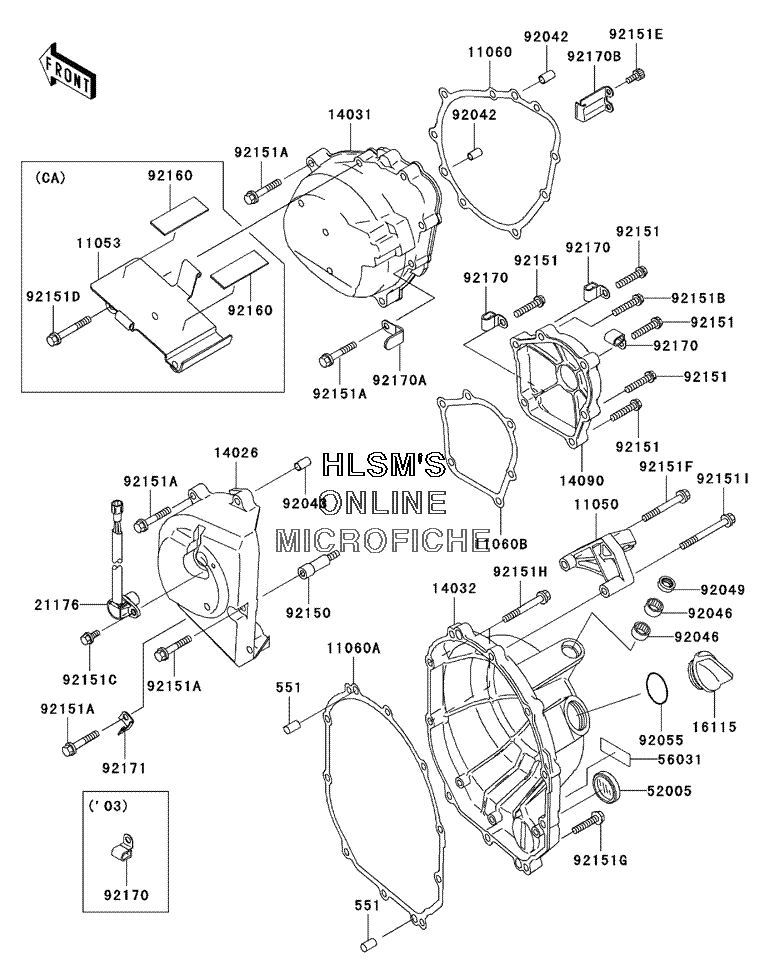

ENGINE COVER для Kawasaki NINJA ZX-6R - 2004 года выпуска`
-
№АртикулНазвание
-
551551A0814 PIN, DOWEL, 8X14PIN, DOWEL, 8X14
-
1105011050-1864 BRACKET, CLUTCH CABLEBRACKET, CLUTCH CABLE
-
1105311053-1201 BRACKET (CALIF. ONLY)BRACKET (CALIF. ONLY)
-
1106011060-1851 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11060A11060-1853 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11060B11060-1867 GASKET, PULSING COVERGASKET, PULSING COVER
-
1402614026-1292 COVER, CHAINCOVER, CHAIN
-
1403114031-1402 COVER, GENERATORCOVER, GENERATOR
-
1403214032-1540 COVER, CLUTCHCOVER, CLUTCH
-
1409014090-1916 COVER, PULSINGCOVER, PULSING
-
1611516115-1009 CAP, OIL FILLERCAP, OIL FILLER
-
2117621176-1076 SENSOR, SPEEDSENSOR, SPEED
-
5200552005-1057 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5603156031-1895 LABEL, MANUAL, OIL CAPACITYLABEL, MANUAL, OIL CAPACITY
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204692046-1010 BEARING, NEEDLE, HK1210BEARING, NEEDLE, HK1210
-
9204992049-1271 SEAL, OIL, TB12205.5SEAL, OIL, TB12205.5
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
9215092150-1889 BOLTBOLT
-
9215192151-1134 BOLT, 6X30BOLT, 6X30
-
92151A92151-1135 BOLT, 6X35 (CALIF. ONLY)BOLT, 6X35 (CALIF. ONLY)
-
92151A92151-1135 BOLT, 6X35 (EXCEPT CALIF.)BOLT, 6X35 (EXCEPT CALIF.)
-
92151B92151-1201 BOLT, 6X30BOLT, 6X30
-
92151C92151-1305 BOLT, 5X12BOLT, 5X12
-
92151D92151-1336 BOLT, 6X45 (CALIF. ONLY)BOLT, 6X45 (CALIF. ONLY)
-
92151E92151-1365 BOLT, SOCKET, 5X12BOLT, SOCKET, 5X12
-
92151F92151-1545 BOLT, 6X50BOLT, 6X50
-
92151G92151-1547 BOLT, 6X30BOLT, 6X30
-
92151H92151-1790 BOLT, 6X50BOLT, 6X50
-
92151I92151-1791 BOLT, 6X60BOLT, 6X60
-
9216092160-1075 DAMPER (CALIF. ONLY)DAMPER (CALIF. ONLY)
-
9217092170-1577 CLAMPCLAMP
-
92170A92170-1680 CLAMPCLAMP
-
92170B92170-1843 CLAMPCLAMP
-
9217192171-0202 CLAMPCLAMP
