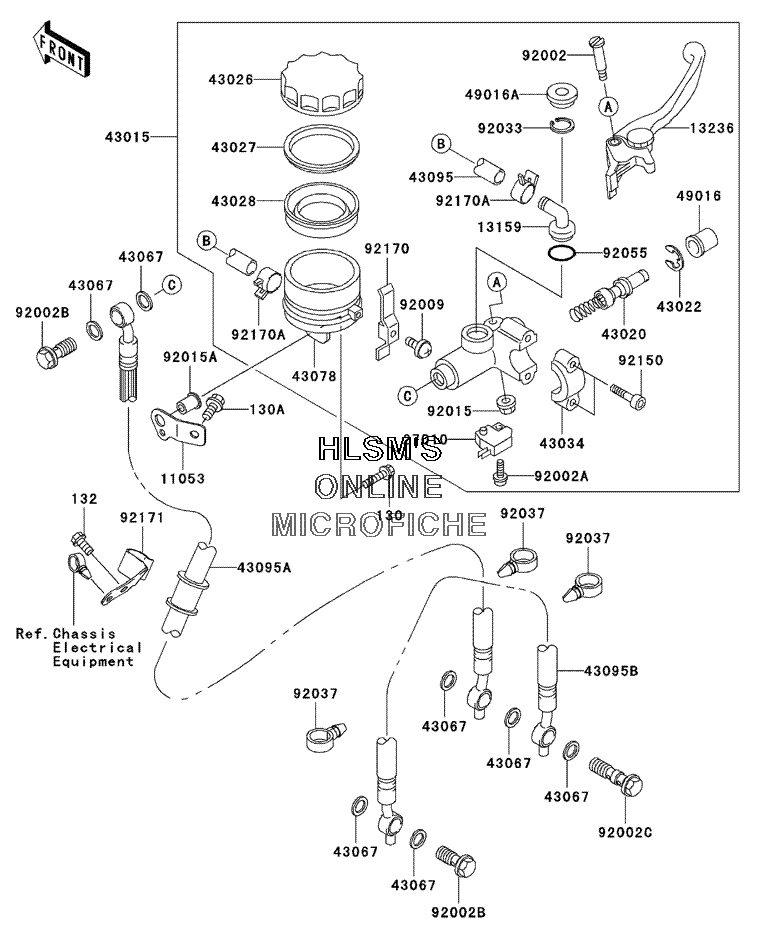

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA ZX-6R - 2004 года выпуска`
-
№АртикулНазвание
-
130130J0520 BOLT, FLANGEDBOLT, FLANGED
-
130A130J0612 BOLT, FLANGEDBOLT, FLANGED
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1105311053-0293 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-0024 LEVER, COMP, FRONT BRAKELEVER, COMP, FRONT BRAKE
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1702 CYLINDER, ASSY., MASTER, FRONTCYLINDER, ASSY., MASTER, FRONT
-
4302043020-1056 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-0002 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1099 RESERVOIRRESERVOIR
-
4309543095-0027 HOSE, BRAKE, FRONT MASTER CYLINDERHOSE, BRAKE, FRONT MASTER CYLINDER
-
43095A43095-1283 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
43095B43095-1284 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
49016A49016-1147 COVER, SEALCOVER, SEAL
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002B92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002C92002-1909 BOLT, OIL, L=37BOLT, OIL, L=37
-
9200992009-1570 SCREWSCREW
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1328 BOLTBOLT
-
9217092170-1090 CLAMPCLAMP
-
92170A92170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-1546 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
