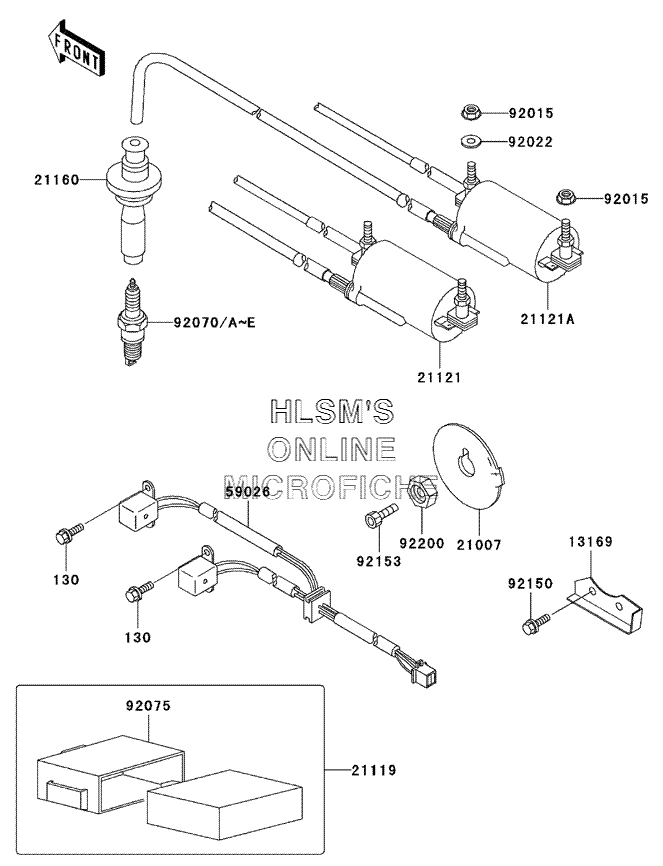

IGNITION SYSTEM для Kawasaki Concours - 2004 года выпуска
-
№АртикулНазвание
-
130130G0512 BOLT, FLANGEDBOLT, FLANGED
-
1316913169-1748 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
2100721007-1109 ROTOR, PULSING COILROTOR, PULSING COIL
-
2111921119-1110 IGNITERIGNITER
-
2112121121-1110 COIL, IGNITION, #1 AND #4COIL, IGNITION, #1 AND #4
-
21121A21121-1111 COIL, IGNITION, #2 AND #3COIL, IGNITION, #2 AND #3
-
2116021160-1065 CAP, ASSY, PLUGCAP, ASSY, PLUG
-
5902659026-1061 COIL, PULSINGCOIL, PULSING
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-024 WASHER, 7X16X1.2WASHER, 7X16X1.2
-
92070C92070-1165 PLUG, SPARK, DR7EA (NGK) (OPT)PLUG, SPARK, DR7EA (NGK) (OPT)
-
92070D92070-1189 PLUG, SPARK, DR9EA (NGK) (OPT)PLUG, SPARK, DR9EA (NGK) (OPT)
-
92070E92070-1199 PLUG, SPARK, DR8EA (NGK)PLUG, SPARK, DR8EA (NGK)
-
9207592075-1592 DAMPER, IGNITERDAMPER, IGNITER
-
9215092150-1841 BOLT, 6X12BOLT, 6X12
-
9215392153-1191 BOLT, M8X25BOLT, M8X25
-
9220092200-1173 WASHER, ROTORWASHER, ROTOR
