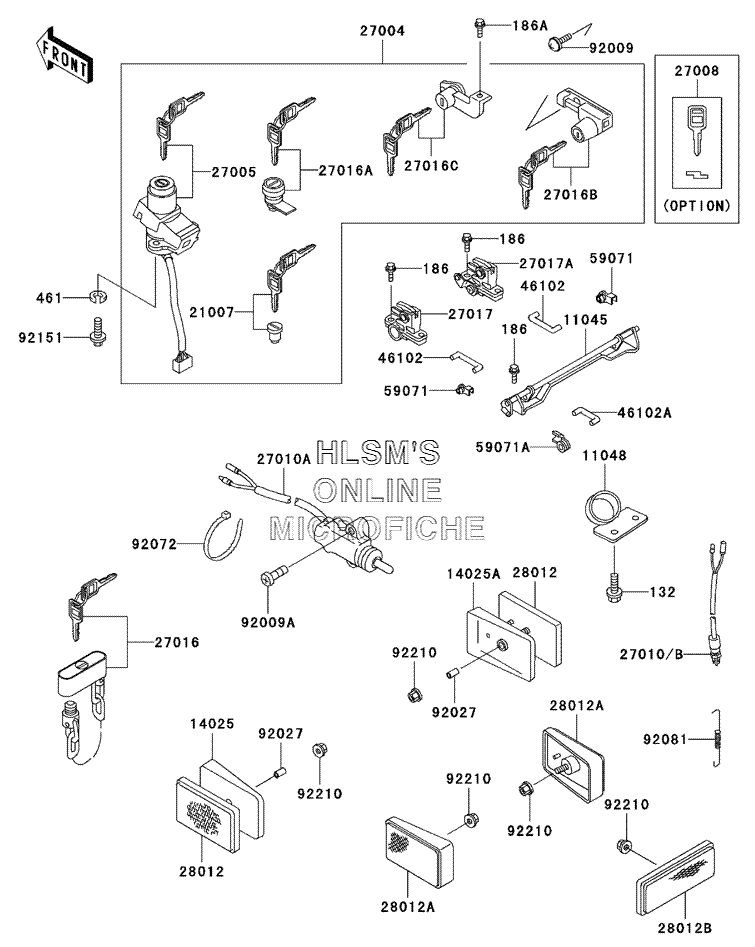

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Concours - 2004 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 186
    186C0614 BOLT, UPSET, WP
    BOLT, UPSET, WP
  • 186A
    186C0616 BOLT, UPSET, WP
    BOLT, UPSET, WP
  • 461
    461L0600 WASHER, SPRING
    WASHER, SPRING
  • 11045
    11045-1544 BRACKET, SEAT LOCK
    BRACKET, SEAT LOCK
  • 11048
    11048-1451 BRACKET, IGNITION GUARD
    BRACKET, IGNITION GUARD
  • 14025
    14025-1886 COVER, REFLECTOR, FRONT
    COVER, REFLECTOR, FRONT
  • 14025A
    14025-1887 COVER, REFLECTOR, FRONT
    COVER, REFLECTOR, FRONT
  • 21007
    21007-5037 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27004
    27004-5474 SWITCH, ASSY
    SWITCH, ASSY
  • 27005
    27005-5101 SWITCH, ASSY, IGNITION
    SWITCH, ASSY, IGNITION
  • 27008
    27008-1173 KEY, LOCK, BLANK (OPT)
    KEY, LOCK, BLANK (OPT)
  • 27010A
    27010-1220 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27010B
    27010-1474 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27016
    27016-1051 LOCK, ASSY, WHEEL
    LOCK, ASSY, WHEEL
  • 27016A
    27016-5204 LOCK, ASSY, TOOL BOX
    LOCK, ASSY, TOOL BOX
  • 27016B
    27016-5211 LOCK, ASSY, HELMET
    LOCK, ASSY, HELMET
  • 27016C
    27016-5221 LOCK, ASSY, SEAT
    LOCK, ASSY, SEAT
  • 27017
    27017-1112 LOCK, SEAT (LEFT)
    LOCK, SEAT (LEFT)
  • 27017A
    27017-1113 LOCK, SEAT (RIGHT)
    LOCK, SEAT (RIGHT)
  • 28012
    28012-1052 REFLECTOR, REFLEX, FRONT
    REFLECTOR, REFLEX, FRONT
  • 28012A
    28012-1056 REFLECTOR, REFLEX, REAR
    REFLECTOR, REFLEX, REAR
  • 28012B
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 46102
    46102-1187 ROD, SEAT LOCK, FRONT
    ROD, SEAT LOCK, FRONT
  • 46102A
    46102-1188 ROD, SEAT LOCK, REAR
    ROD, SEAT LOCK, REAR
  • 59071
    59071-1103 JOINT
    JOINT
  • 59071A
    59071-1125 JOINT
    JOINT
  • 92009
    92009-1401 SCREW, 5X12
    SCREW, 5X12
  • 92009A
    92009-1459 SCREW, 5X20
    SCREW, 5X20
  • 92027
    92027-1789 COLLAR, 5X8X14.5
    COLLAR, 5X8X14.5
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92081
    92081-1990 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 92151
    92151-1911 BOLT, TORX, 6X16
    BOLT, TORX, 6X16
  • 92210
    92210-0007 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
