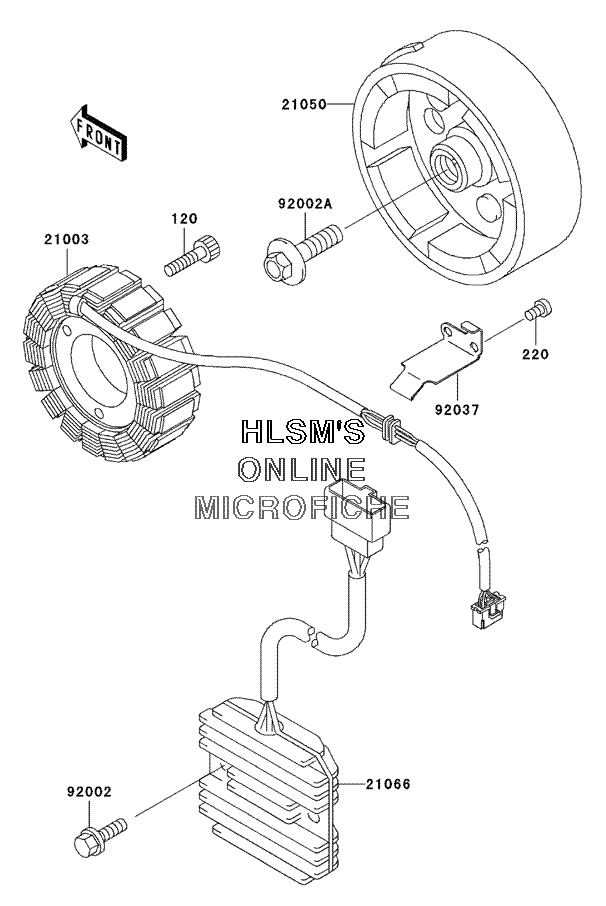

GENERATOR для Kawasaki Vulcan 500 LTD - 2003 года выпуска
-
№АртикулНазвание
-
120120P0625 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
220220B0510 SCREW, PAN, CROS 5X10SCREW, PAN, CROS 5X10
-
2100321003-1123 STATORSTATOR
-
2105021050-1168 FLYWHEELFLYWHEEL
-
2106621066-1030 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
9200292002-1086 BOLT, 6X25BOLT, 6X25
-
92002A92002-1457 BOLT, FLANGED, 10X36BOLT, FLANGED, 10X36
-
9203792037-1630 CLAMP, GENERATOR LEADCLAMP, GENERATOR LEAD
