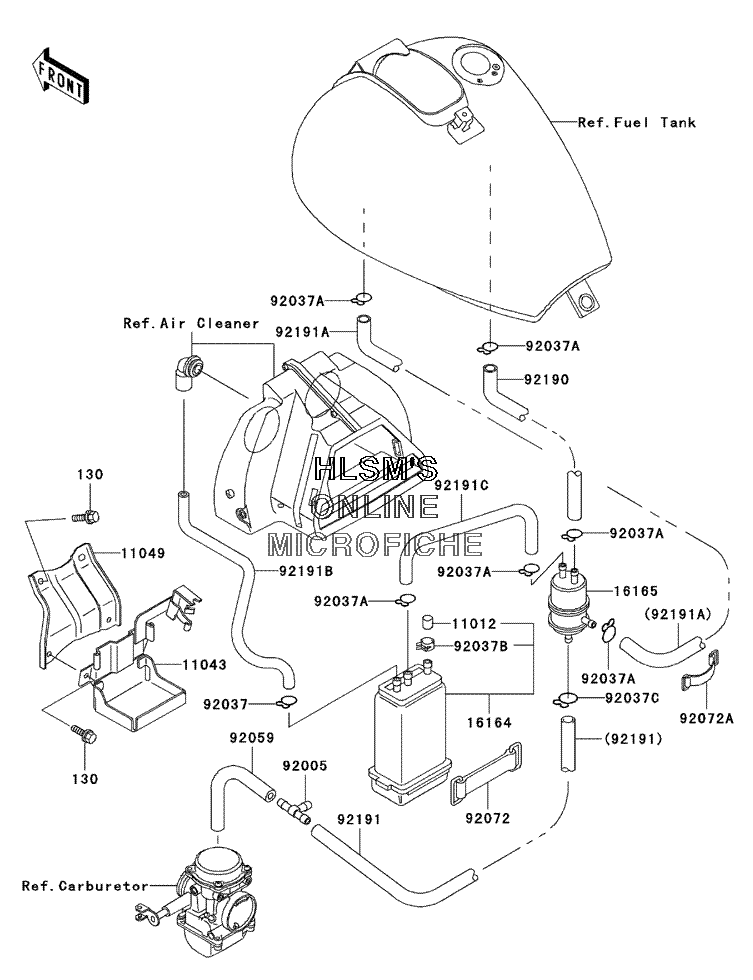

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Vulcan 500 LTD - 2003 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT, FLANGEDBOLT, FLANGED
-
1101211012-1388 CAP, CANISTERCAP, CANISTER
-
1104311043-1184 BRACKET, CANISTERBRACKET, CANISTER
-
1104911049-1663 BRACKETBRACKET
-
1616416164-1054 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1512 CLAMP, CANISTERCLAMP, CANISTER
-
92037C92037-1712 CLAMPCLAMP
-
9205992059-1591 TUBE, 4X9X100 (WHITE)TUBE, 4X9X100 (WHITE)
-
9207292072-006 BAND, L=142.1BAND, L=142.1
-
92072A92072-1419 BAND, L=50BAND, L=50
-
9219092190-1620 TUBE, SEPA, TANKTUBE, SEPA, TANK
-
9219192191-1062 TUBE (WHITE)TUBE (WHITE)
-
92191A92191-1063 TUBE (RED)TUBE (RED)
-
92191B92191-1065 TUBE (GREEN)TUBE (GREEN)
-
92191C92191-1076 TUBE (BLUE)TUBE (BLUE)
