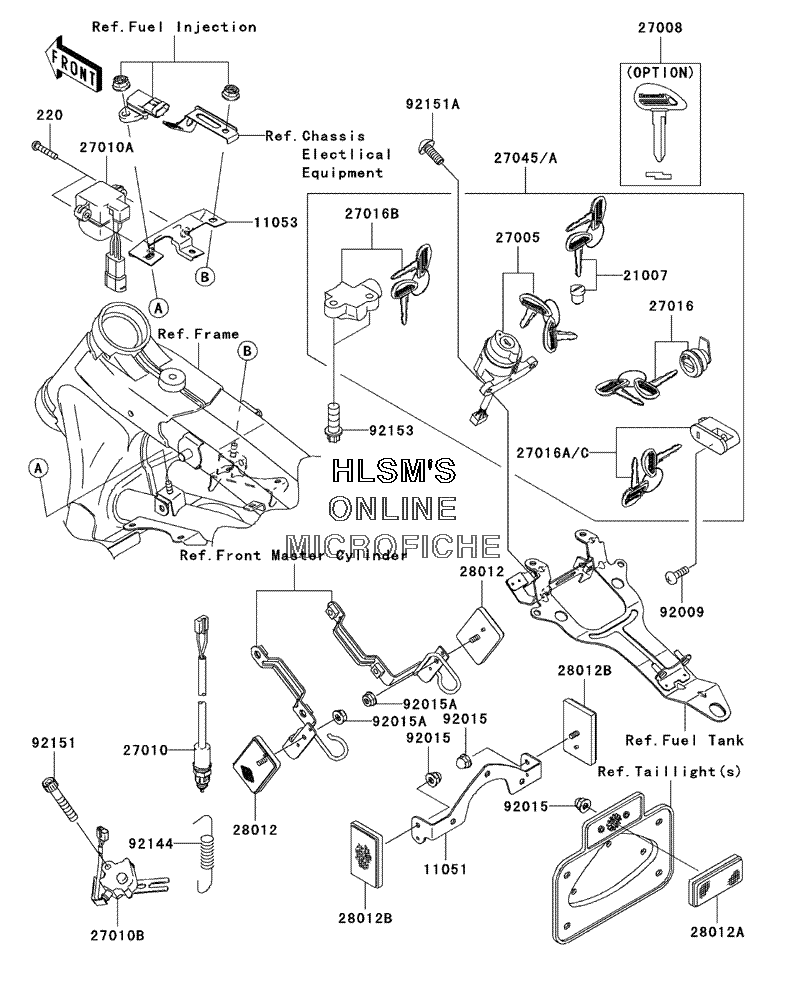

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 1600 Classic - 2003 года выпуска

  • №
    Артикул
    Название
  • 220
    220C0420 SCREW, PAN, CROS, 4X20
    SCREW, PAN, CROS, 4X20
  • 11051
    11051-1100 BRACKET, REFLECTOR
    BRACKET, REFLECTOR
  • 11053
    11053-0261 BRACKET, DOWN SENSOR
    BRACKET, DOWN SENSOR
  • 21007
    21007-5053 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27005
    27005-0001 SWITCH, ASSY., IGNITION
    SWITCH, ASSY., IGNITION
  • 27008
    27008-1211 KEY, LOCK, BLANK (OPT)
    KEY, LOCK, BLANK (OPT)
  • 27010
    27010-1412 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27010A
    27010-1416 SWITCH, DOWN SENSOR
    SWITCH, DOWN SENSOR
  • 27010B
    27010-1470 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27016
    27016-5279 LOCK, ASSY., LID
    LOCK, ASSY., LID
  • 27016A
    27016-5280 LOCK, ASSY., HELMET
    LOCK, ASSY., HELMET
  • 27016B
    27016-5298 LOCK, ASSY., STEERING
    LOCK, ASSY., STEERING
  • 27045
    27045-5178 SWITCH, ASSY.
    SWITCH, ASSY.
  • 28012
    28012-1009 REFLECTOR, REFLEX, FRONT
    REFLECTOR, REFLEX, FRONT
  • 28012A
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012B
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 92009
    92009-1296 SCREW, 5X12
    SCREW, 5X12
  • 92015
    92015-1263 NUT, LOCK, FLANGE CAP, 5MM
    NUT, LOCK, FLANGE CAP, 5MM
  • 92015A
    92015-1656 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92144
    92144-1141 SPRING, REAR BRAKE SWITCH
    SPRING, REAR BRAKE SWITCH
  • 92151
    92151-1390 BOLT, SOCKET, 6X35
    BOLT, SOCKET, 6X35
  • 92151A
    92151-1751 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92153
    92153-1273 BOLT, TORX, 8X22
    BOLT, TORX, 8X22
