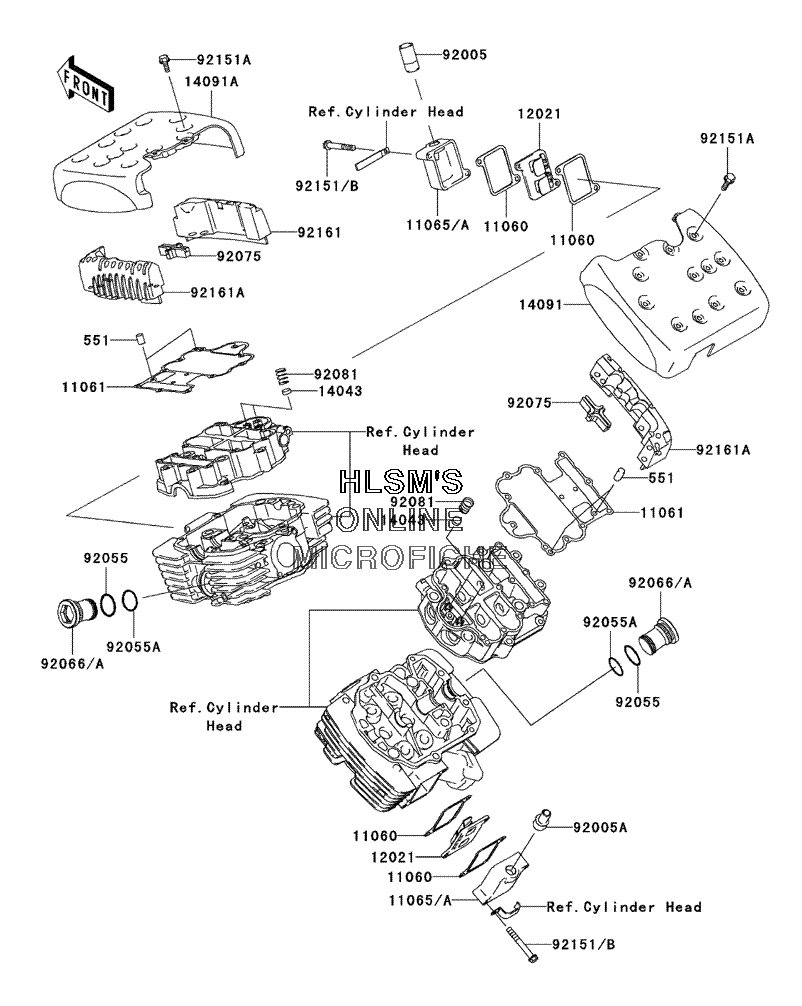

CYLINDER HEAD COVER для Kawasaki Vulcan 1600 Classic - 2003 года выпуска
-
№АртикулНазвание
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
1106011060-1733 GASKET, REED VALVE CAPGASKET, REED VALVE CAP
-
1106111061-1175 GASKET, ROCKER CASE COVERGASKET, ROCKER CASE COVER
-
1106511065-0030 CAP, REED VALVECAP, REED VALVE
-
1202112021-1108 VALVE, ASSY., REEDVALVE, ASSY., REED
-
1404314043-1056 FILTER, OILFILTER, OIL
-
1409114091-0005 COVER, ROCKER CASE, REARCOVER, ROCKER CASE, REAR
-
14091A14091-0093 COVER, ROCKER CASE, FRONTCOVER, ROCKER CASE, FRONT
-
9200592005-1006 FITTING, REED VALVEFITTING, REED VALVE
-
92005A92005-1363 FITTINGFITTING
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1272 O-RING, 27.7X1.9O-RING, 27.7X1.9
-
9206692066-0001 PLUG, SLEEVEPLUG, SLEEVE
-
9207592075-1998 DAMPERDAMPER
-
9208192081-1776 SPO-RINGIL FILTERSPO-RINGIL FILTER
-
92151A92151-1252 BOLT, FLANGED, SMALL, M6X20BOLT, FLANGED, SMALL, M6X20
-
92151B92151-1336 BOLT, 6X45BOLT, 6X45
-
9216192161-1340 DAMPERDAMPER
-
92161A92161-1341 DAMPERDAMPER
