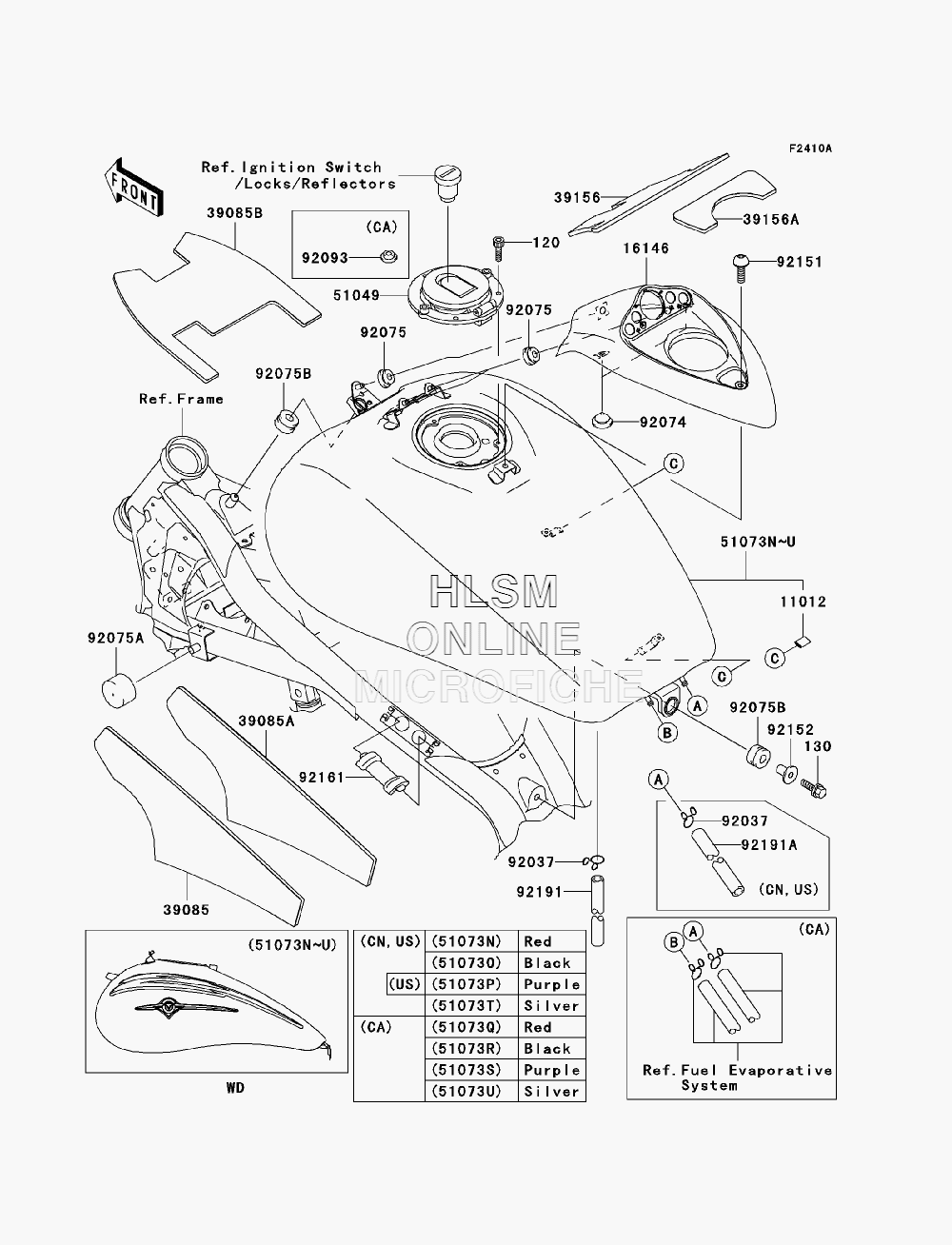

FUEL TANK для Kawasaki Vulcan 1500 Mean Streak (VN1500-P2) - 2003 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1725 CAP
    CAP
  • 16146
    16146-1220 COVER-ASSY, FUEL TANK
    COVER-ASSY, FUEL TANK
  • 39085
    39085-1065 PAD-TANK, FUEL TANK, LEFT HAND
    PAD-TANK, FUEL TANK, LEFT HAND
  • 39085A
    39085-1066 PAD-TANK, FUEL TANK, RIGHT HAND
    PAD-TANK, FUEL TANK, RIGHT HAND
  • 39085B
    39085-1067 PAD-TANK, FUEL TANK, CENTER
    PAD-TANK, FUEL TANK, CENTER
  • 39156
    39156-1700 PAD, FUEL TANK COVER, FRONT
    PAD, FUEL TANK COVER, FRONT
  • 39156A
    39156-1701 PAD, FUEL TANK COVER, REAR
    PAD, FUEL TANK COVER, REAR
  • 51049
    51049-1124 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 51073N
    51073-5021-234 TANK-ASSY-FUEL, (P.RED) (EXCEPT CALIF.)
    TANK-ASSY-FUEL, (P.RED) (EXCEPT CALIF.)
  • 51073O
    51073-5022-B5 TANK-ASSY-FUEL, (BLACK) (EXCEPT CALIF.) (FOR B5)
    TANK-ASSY-FUEL, (BLACK) (EXCEPT CALIF.) (FOR B5)
  • 51073P
    51073-5023-3F TANK-ASSY-FUEL, (M.M.PURPLE) (EXCEPT CALIF.) (FOR 3F)
    TANK-ASSY-FUEL, (M.M.PURPLE) (EXCEPT CALIF.) (FOR 3F)
  • 51073Q
    51073-5024-234 TANK-ASSY-FUEL, (P.RED) (CALIF. ONLY)
    TANK-ASSY-FUEL, (P.RED) (CALIF. ONLY)
  • 51073R
    51073-5025-B5 TANK-ASSY-FUEL, (BLACK) (CALIF. ONLY) (FOR B5)
    TANK-ASSY-FUEL, (BLACK) (CALIF. ONLY) (FOR B5)
  • 51073S
    51073-5026-3F TANK-ASSY-FUEL, (M.M.PURPLE) (CALIF. ONLY) (FOR 3F)
    TANK-ASSY-FUEL, (M.M.PURPLE) (CALIF. ONLY) (FOR 3F)
  • 51073T
    51073-5027-GU TANK-ASSY-FUEL, (M.P.SILVER) (EXCEPT CALIF.) (FOR GU)
    TANK-ASSY-FUEL, (M.P.SILVER) (EXCEPT CALIF.) (FOR GU)
  • 51073U
    51073-5028-GU TANK-ASSY-FUEL, (M.P.SILVER) (CALIF. ONLY) (FOR GU)
    TANK-ASSY-FUEL, (M.P.SILVER) (CALIF. ONLY) (FOR GU)
  • 120
    120S0512 BOLT-SOCKET
    BOLT-SOCKET
  • 130
    130H0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 92037
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037
    92037-147 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92074
    92074-028 PLUG, 7X2
    PLUG, 7X2
  • 92075
    92075-1011 DAMPER
    DAMPER
  • 92075A
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075B
    92075-1736 DAMPER
    DAMPER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92151
    92151-1940 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92152
    92152-1393 COLLAR
    COLLAR
  • 92161
    92161-1245 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92191
    92191-1272 TUBE, DRAIN
    TUBE, DRAIN
  • 92191A
    92191-1529 TUBE, 5X10X650 (EXCEPT CALIF.)
    TUBE, 5X10X650 (EXCEPT CALIF.)
