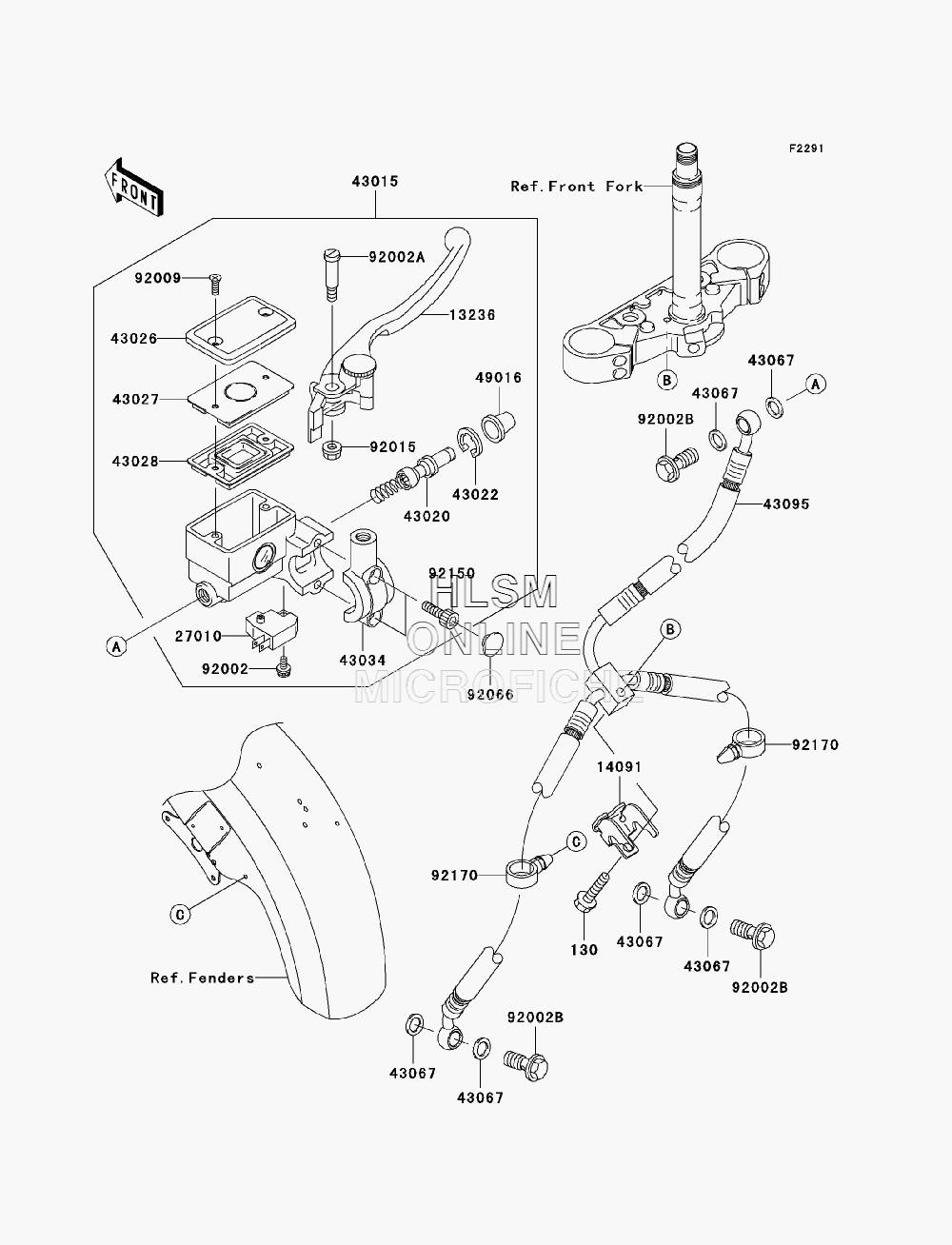

BRAKE - FRONT MASTER CYLINDER для Kawasaki Vulcan 1500 Mean Streak (VN1500-P2) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0630 BOLT-FLANGED, 6X30, (BLACK)
    BOLT-FLANGED, 6X30, (BLACK)
  • 13236
    13236-1315 LEVER-COMP, FRONT BRAKE
    LEVER-COMP, FRONT BRAKE
  • 14091
    14091-1450 COVER, 3 WAY JOINT
    COVER, 3 WAY JOINT
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1680 CYLINDER-ASSY-MASTER, FRONT
    CYLINDER-ASSY-MASTER, FRONT
  • 43020
    43020-1054 PISTON-COMP-BRAKE, FRONT
    PISTON-COMP-BRAKE, FRONT
  • 43022
    43022-1010 STOPPER-BRAKE, PISTON
    STOPPER-BRAKE, PISTON
  • 43026
    43026-1085 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1059 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1058 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1172 HOLDER-BRAKE
    HOLDER-BRAKE
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-1216 HOSE-BRAKE, FRONT
    HOSE-BRAKE, FRONT
  • 49016
    49016-1044 COVER-SEAL, MASTER CYLINDER
    COVER-SEAL, MASTER CYLINDER
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1561 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92002B
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92009
    92009-1795 SCREW
    SCREW
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92066
    92066-1301 PLUG
    PLUG
  • 92150
    92150-1025 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 92170
    92170-1067 CLAMP
    CLAMP
