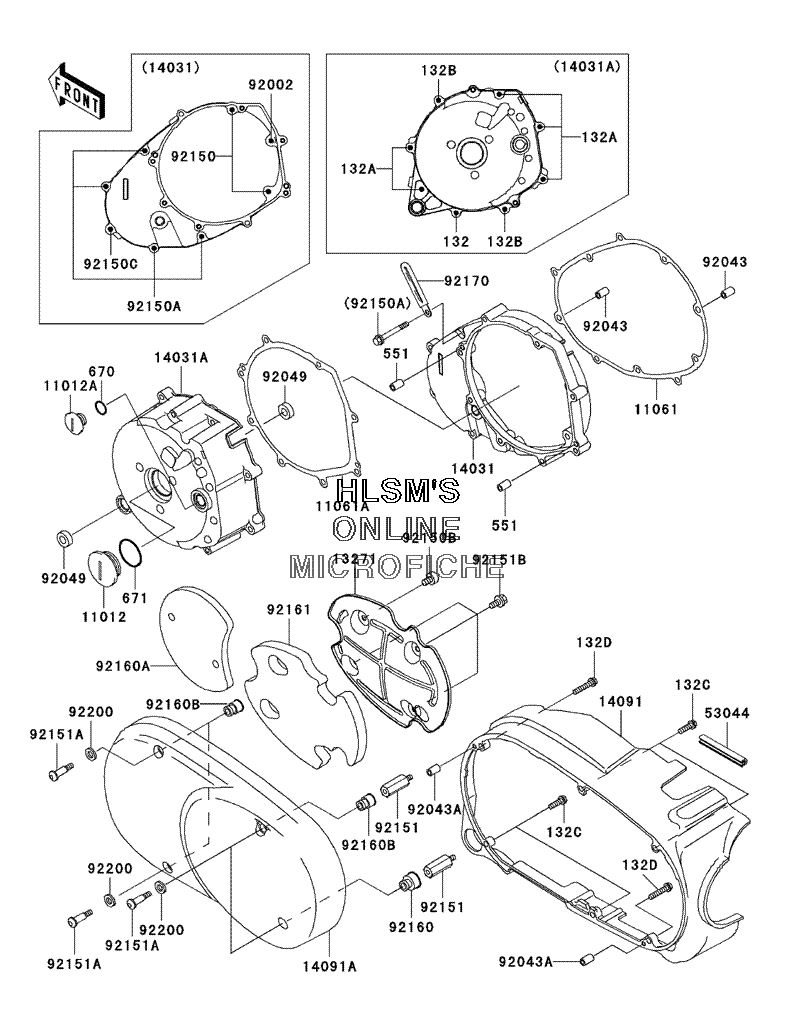

ENGINE COVER(S) - LEFT для Kawasaki Vulcan 1500 Drifter - 2003 года выпуска`
-
№АртикулНазвание
-
132132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132V0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132D132V0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
551551A0612 PIN, DOWEL, 6X12PIN, DOWEL, 6X12
-
670670B2018 O-RING, 18MMO-RING, 18MM
-
671671B2540 O-RING, 40MMO-RING, 40MM
-
1101211012-1362 CAPCAP
-
11012A11012-1363 CAP, TOP MARKCAP, TOP MARK
-
1106111061-1079 GASKET, GENERATOR COVER, INNERGASKET, GENERATOR COVER, INNER
-
11061A11061-1080 GASKET, GENERATOR COVER, OUTERGASKET, GENERATOR COVER, OUTER
-
1327113271-1496 PLATEPLATE
-
1403114031-1384 COVER, GENERATOR, INNERCOVER, GENERATOR, INNER
-
14031A14031-1392 COVER, GENERATOR, OUTERCOVER, GENERATOR, OUTER
-
1409114091-1206 COVER, INNER (LEFT)COVER, INNER (LEFT)
-
14091A14091-1297 COVER, OUTER (LEFT)COVER, OUTER (LEFT)
-
5304453044-1312 TRIMTRIM
-
9200292002-1566 BOLT, 6X40BOLT, 6X40
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1690 PIN, 6X16PIN, 6X16
-
9204992049-1398 SEAL, OIL, VB13193SEAL, OIL, VB13193
-
9215092150-1021 BOLT, 6X30BOLT, 6X30
-
92150A92150-1779 BOLT, 6X25BOLT, 6X25
-
92150B92150-1864 BOLT, 6X10BOLT, 6X10
-
92150C92150-1967 BOLT, 6X35BOLT, 6X35
-
9215192151-1062 BOLTBOLT
-
92151A92151-1796 BOLT, L=32BOLT, L=32
-
92151B92151-1884 BOLT, 6X10BOLT, 6X10
-
9216092160-1718 DAMPERDAMPER
-
92160A92160-1719 DAMPERDAMPER
-
92160B92160-1730 DAMPERDAMPER
-
9216192161-1179 DAMPERDAMPER
-
9217092170-1514 CLAMPCLAMP
-
9220092200-1296 WASHERWASHER
