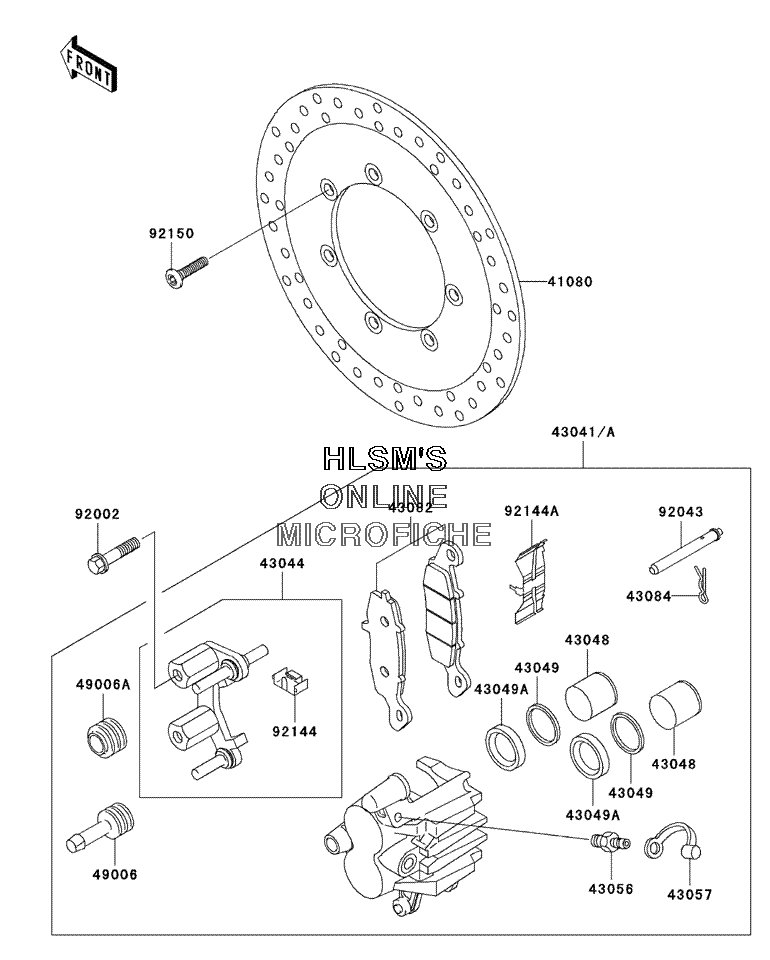

BRAKE - FRONT для Kawasaki Vulcan 1500 Drifter - 2003 года выпуска`
-
№АртикулНазвание
-
4108041080-1458-CM DISC, FRONT (SILVER)DISC, FRONT (SILVER)
-
43041A43041-1887-GN CALIPER, ASSY., FRONT (LEFT) (SILVER)CALIPER, ASSY., FRONT (LEFT) (SILVER)
-
4304443044-1126 HOLDER, COMP, CALIPER, FRONTHOLDER, COMP, CALIPER, FRONT
-
4304843048-1073 PISTON, CALIPERPISTON, CALIPER
-
4304943049-1068 PACKINGPACKING
-
43049A43049-1092 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-1054 BREATHER, BRAKEBREATHER, BRAKE
-
4305743057-003 CAP, BREATHERCAP, BREATHER
-
4308243082-1234 PAD, ASSY., BRAKEPAD, ASSY., BRAKE
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1054 BOOT, CALIPERBOOT, CALIPER
-
49006A49006-1095 BOOT, CALIPERBOOT, CALIPER
-
9200292002-1829 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9204392043-1489 PIN, PADPIN, PAD
-
9214492144-1831 SPRING, STOPPERSPRING, STOPPER
-
92144A92144-1832 SPRING, PAD (LEFT)SPRING, PAD (LEFT)
-
9215092150-1771 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
