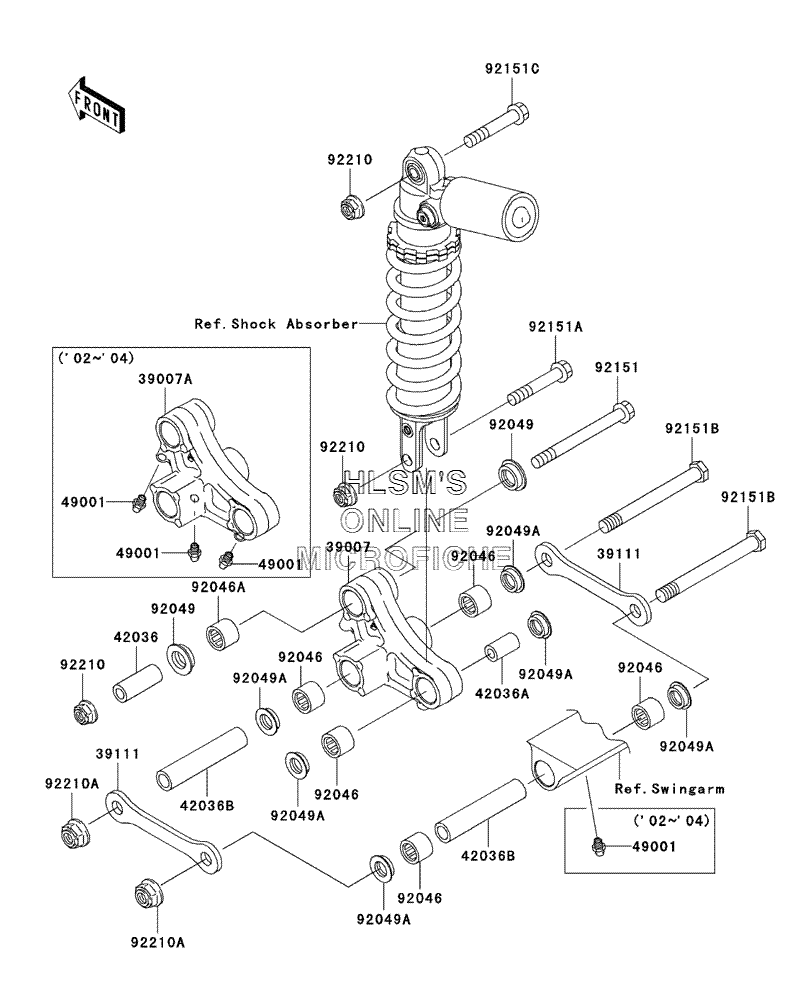

SUSPENSION - REAR для Kawasaki NINJA ZX-12R - 2003 года выпуска`
-
№АртикулНазвание
-
39007A39007-1302 ARM, SUSPENSION, UNI TRAKARM, SUSPENSION, UNI TRAK
-
3911139111-1177 ROD, TIE, SUSPENSIONROD, TIE, SUSPENSION
-
4203642036-1342 SLEEVE, 10.1X17X44.5SLEEVE, 10.1X17X44.5
-
42036A42036-1344 SLEEVE, 10.1X18X32SLEEVE, 10.1X18X32
-
42036B42036-1360 SLEEVE, 12.1X18X90SLEEVE, 12.1X18X90
-
4900149001-0001 NIPPLE, GREASENIPPLE, GREASE
-
9204692046-1272 BEARING, NEEDLE, SFYZM182417BEARING, NEEDLE, SFYZM182417
-
92046A92046-1273 BEARING, NEEDLE, SFYZM172425BEARING, NEEDLE, SFYZM172425
-
9204992049-1223 SEAL, OIL, MHA17245.7FSEAL, OIL, MHA17245.7F
-
92049A92049-1493 SEAL, OIL, KCR MF018N1SEAL, OIL, KCR MF018N1
-
9215192151-1600 BOLT, FLANGED, 10X77BOLT, FLANGED, 10X77
-
92151A92151-1601 BOLT, FLANGED, 10X62BOLT, FLANGED, 10X62
-
92151B92151-1684 BOLT, 12X117BOLT, 12X117
-
92151C92151-1798 BOLT, FLANGED, 10X51BOLT, FLANGED, 10X51
-
9221092210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-1150 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
