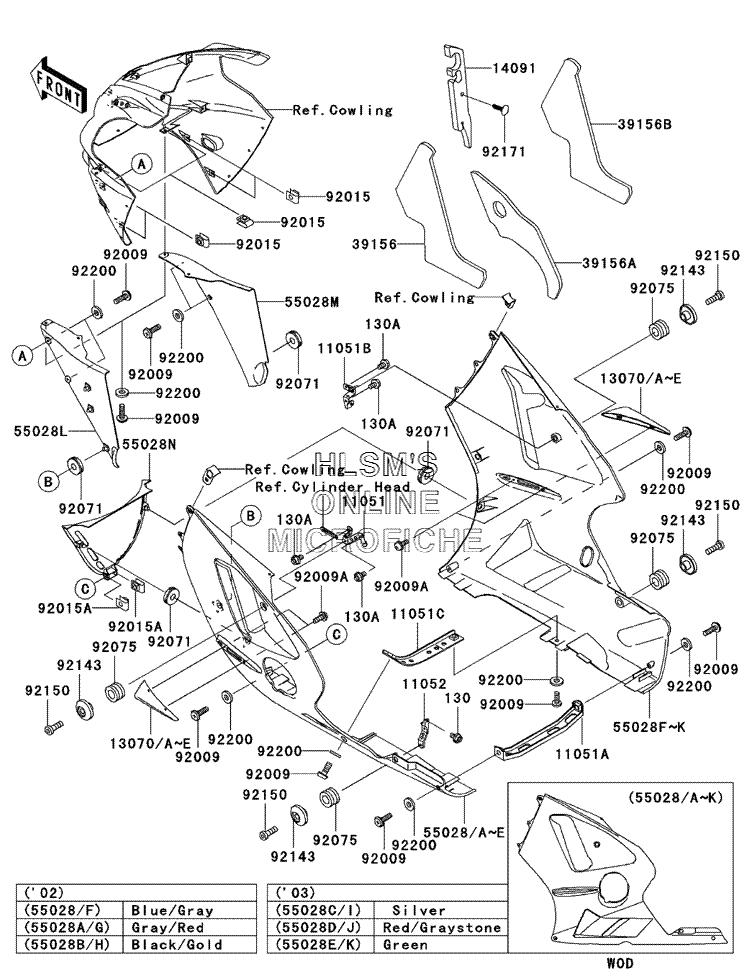

COWLING - LOWERS для Kawasaki NINJA ZX-12R - 2003 года выпуска

  • №
    Артикул
    Название
  • 11051
    11051-1365 BRACKET, LOWER COWLING (LEFT) UPPER
    BRACKET, LOWER COWLING (LEFT) UPPER
  • 11051A
    11051-1368 BRACKET, LOWER COWLING (LEFT AND RIGHT), REAR
    BRACKET, LOWER COWLING (LEFT AND RIGHT), REAR
  • 11051B
    11051-1369 BRACKET, LOWER COWLING (RIGHT) UPPER
    BRACKET, LOWER COWLING (RIGHT) UPPER
  • 11051C
    11051-1878 BRACKET, LOWER COWLING, LOWER, CENTER
    BRACKET, LOWER COWLING, LOWER, CENTER
  • 11052
    11052-1829 BRACKET, LOWER COWLING (LEFT) LOWER
    BRACKET, LOWER COWLING (LEFT) LOWER
  • 13070
    13070-1341-ED GUIDE, WING (C.S.RED)
    GUIDE, WING (C.S.RED)
  • 13070D
    13070-1341-473 GUIDE, WING (M.SILVER) (CANADA ONLY)
    GUIDE, WING (M.SILVER) (CANADA ONLY)
  • 13070E
    13070-1341-7F GUIDE, WING (L.GREEN)
    GUIDE, WING (L.GREEN)
  • 14091
    14091-1272 COVER
    COVER
  • 39156
    39156-1716 PAD, LOWER COWLING (LEFT) FRONT
    PAD, LOWER COWLING (LEFT) FRONT
  • 39156A
    39156-1717 PAD, LOWER COWLING (LEFT) UPPER
    PAD, LOWER COWLING (LEFT) UPPER
  • 39156B
    39156-1718 PAD, LOWER COWLING (RIGHT) FRONT
    PAD, LOWER COWLING (RIGHT) FRONT
  • 55028C
    55028-1427-473 COWLING, LOWER (LEFT) M.SILVER (CANADA ONLY)
    COWLING, LOWER (LEFT) M.SILVER (CANADA ONLY)
  • 55028D
    55028-1427-477 COWLING, LOWER (LEFT) (RED/GRAYSTONE)
    COWLING, LOWER (LEFT) (RED/GRAYSTONE)
  • 55028E
    55028-1427-7F COWLING, LOWER (LEFT) (L.GREEN)
    COWLING, LOWER (LEFT) (L.GREEN)
  • 55028I
    55028-1428-473 COWLING, LOWER (RIGHT) (M.SILVER) (CANADA ONLY)
    COWLING, LOWER (RIGHT) (M.SILVER) (CANADA ONLY)
  • 55028J
    55028-1428-477 COWLING, LOWER (RIGHT) (RED/GRAYSTONE)
    COWLING, LOWER (RIGHT) (RED/GRAYSTONE)
  • 55028K
    55028-1428-7F COWLING, LOWER (RIGHT) (L.GREEN)
    COWLING, LOWER (RIGHT) (L.GREEN)
  • 55028L
    55028-1429 COWLING, FRONT (LEFT)
    COWLING, FRONT (LEFT)
  • 55028M
    55028-1430 COWLING, FRONT (RIGHT)
    COWLING, FRONT (RIGHT)
  • 55028N
    55028-1431 COWLING, FRONT, LOWER
    COWLING, FRONT, LOWER
  • 92009
    92009-1909 SCREW, 5X16
    SCREW, 5X16
  • 92009A
    92009-1975 SCREW, 5X14
    SCREW, 5X14
  • 92015
    92015-1569 NUT, 5MM
    NUT, 5MM
  • 92015A
    92015-1573 NUT, 5MM
    NUT, 5MM
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92075
    92075-1634 DAMPER
    DAMPER
  • 92143
    92143-1226 COLLAR (BLACK)
    COLLAR (BLACK)
  • 130
    130S0610 BOLT, FLANGED
    BOLT, FLANGED
  • 130A
    130V0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 92150
    92150-1553 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92171
    92171-1280 CLAMP
    CLAMP
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
