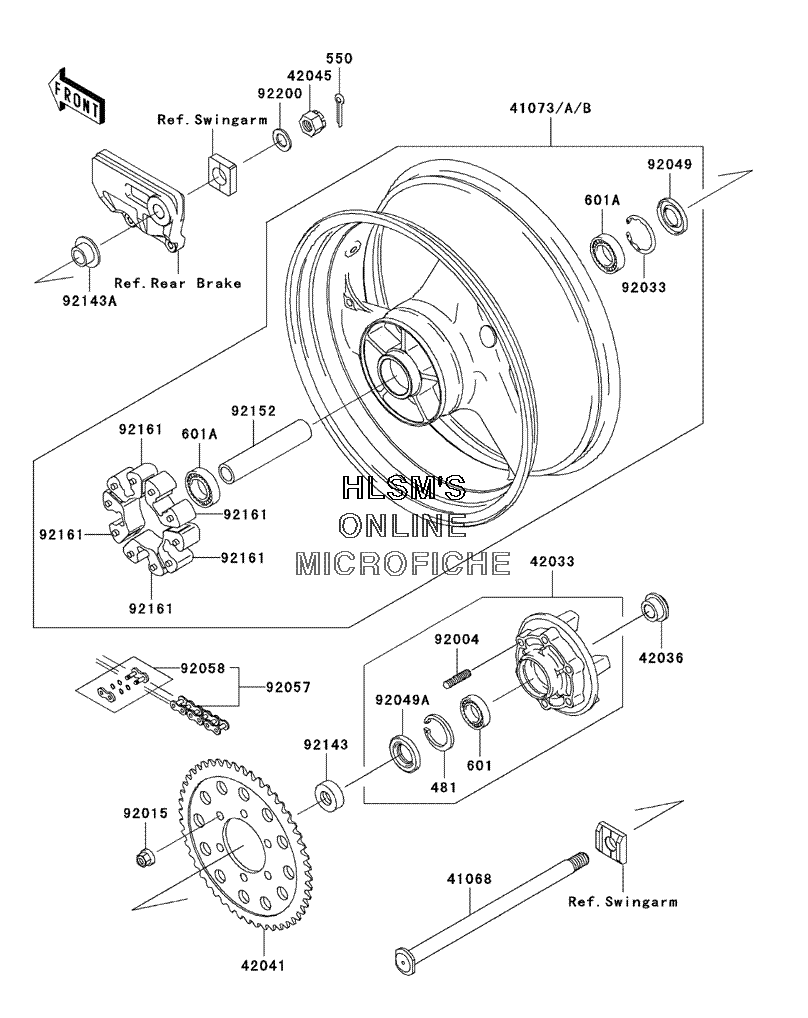

WHEEL - REAR W/ CHAIN для Kawasaki ZZR1200 - 2002 года выпуска

  • №
    Артикул
    Название
  • 481
    481J5500 CIRCLIP
    CIRCLIP
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6006G BEARING, BALL, #6006G
    BEARING, BALL, #6006G
  • 601A
    601B6304UU BEARING, BALL, #6304UUC3
    BEARING, BALL, #6304UUC3
  • 41068
    41068-1447 AXLE, FRONT
    AXLE, FRONT
  • 41073
    41073-1669-R2 WHEEL, ASSY., REAR (BLACK) (CANADA ONLY)
    WHEEL, ASSY., REAR (BLACK) (CANADA ONLY)
  • 41073A
    41073-1669-V5 WHEEL, ASSY., REAR (SILVER)
    WHEEL, ASSY., REAR (SILVER)
  • 42033
    42033-1203 COUPLING, ASSY., REAR HUB
    COUPLING, ASSY., REAR HUB
  • 42036
    42036-1366 SLEEVE, REAR HUB COUPLING, L=22
    SLEEVE, REAR HUB COUPLING, L=22
  • 42041
    42041-1417 SPROCKET, HUB (44 TEETH)
    SPROCKET, HUB (44 TEETH)
  • 42045
    42045-018 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
  • 92004
    92004-1275 STUD, 10X19
    STUD, 10X19
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92033
    92033-1043 RING, SNAP, 52MM
    RING, SNAP, 52MM
  • 92049
    92049-1061 SEAL, OIL, 28X52X5
    SEAL, OIL, 28X52X5
  • 92049A
    92049-1263 SEAL, OIL, PJN40556
    SEAL, OIL, PJN40556
  • 92057
    92057-0005 CHAIN, DRIVE, EK50ZVX2X112L
    CHAIN, DRIVE, EK50ZVX2X112L
  • 92058
    92058-1104 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92143
    92143-1094 COLLAR, REAR AXLE, L=14
    COLLAR, REAR AXLE, L=14
  • 92143A
    92143-1915 COLLAR, REAR AXLE (RIGHT) L=18
    COLLAR, REAR AXLE (RIGHT) L=18
  • 92152
    92152-1319 COLLAR, REAR HUB, L=146
    COLLAR, REAR HUB, L=146
  • 92161
    92161-1069 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-1489 WASHER, 19X32X2.6
    WASHER, 19X32X2.6
