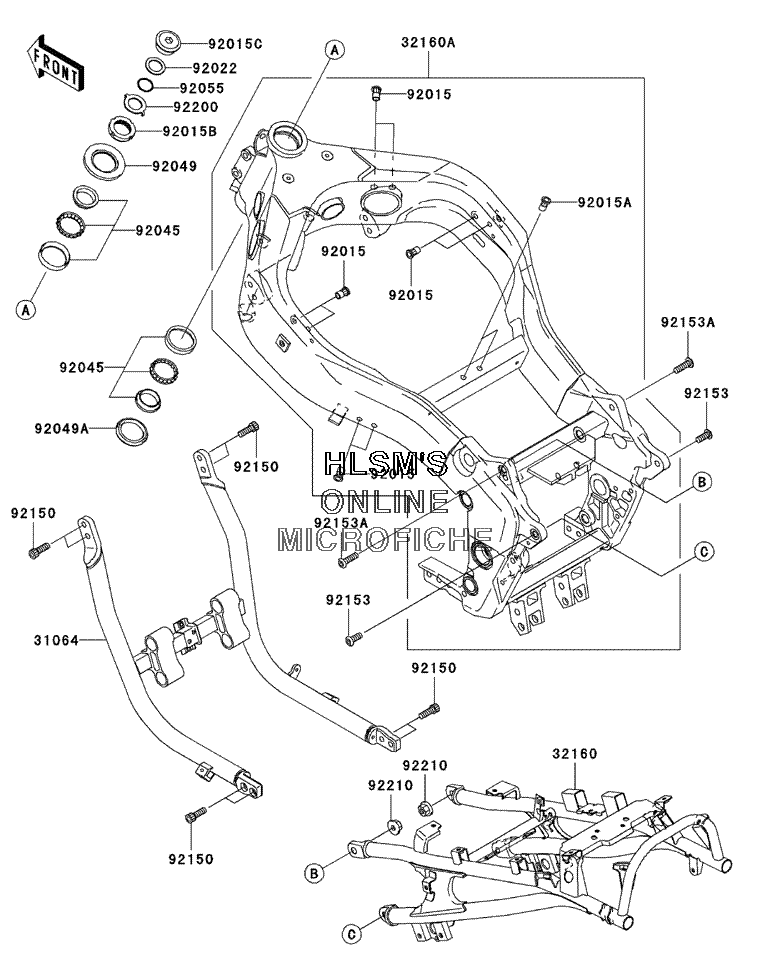

FRAME для Kawasaki ZZR1200 - 2002 года выпуска

  • №
    Артикул
    Название
  • 31064
    31064-1246 PIPE, COMP, SIDE FRAME
    PIPE, COMP, SIDE FRAME
  • 32160
    32160-1776-10 FRAME, COMP, REAR (BLACK)
    FRAME, COMP, REAR (BLACK)
  • 32160A
    32160-1780-458 FRAME, COMP, AL, FRONT (P.SILVER)
    FRAME, COMP, AL, FRONT (P.SILVER)
  • 92015
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92015A
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92015B
    92015-1848 NUT, STEERING STEM, 35MM
    NUT, STEERING STEM, 35MM
  • 92015C
    92015-1891 NUT, STEERING, 25MM
    NUT, STEERING, 25MM
  • 92022
    92022-250 WASHER, 25X36X2.3
    WASHER, 25X36X2.3
  • 92045
    92045-1384 BEARING, BALL, SF07A17PX1V1
    BEARING, BALL, SF07A17PX1V1
  • 92049
    92049-1382 SEAL, OIL, XMH 43 75 6.4J
    SEAL, OIL, XMH 43 75 6.4J
  • 92049A
    92049-1383 SEAL, OIL, XMHE 43 55 4J
    SEAL, OIL, XMHE 43 55 4J
  • 92055
    92055-1459 O-RING, ID=24.5
    O-RING, ID=24.5
  • 92150
    92150-1690 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92153
    92153-1136 BOLT, SOCKET, 10X25
    BOLT, SOCKET, 10X25
  • 92153A
    92153-1164 BOLT, SOCKET, 10X35
    BOLT, SOCKET, 10X35
  • 92200
    92200-1083 WASHER, CLAW, 25.5X40X2.3
    WASHER, CLAW, 25.5X40X2.3
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
