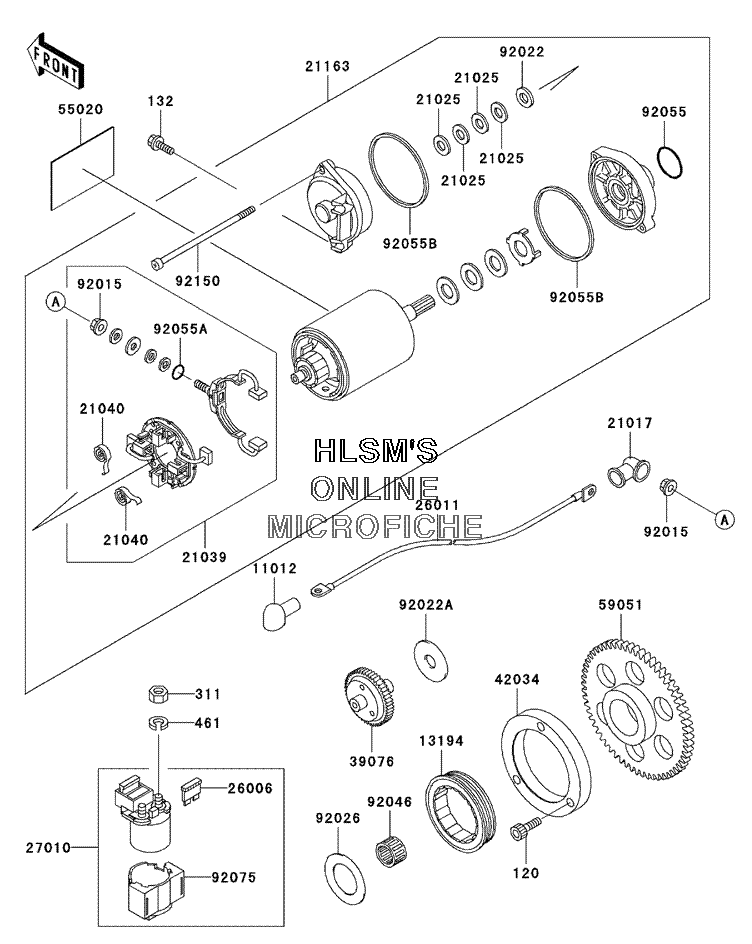

STARTER MOTOR для Kawasaki Vulcan 800 - 2002 года выпуска

  • №
    Артикул
    Название
  • 120
    120Q0820 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 132
    132J0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 311
    311B0600 NUT, HEX, 6MM
    NUT, HEX, 6MM
  • 461
    461F0600 WASHER, SPRING, 6MM
    WASHER, SPRING, 6MM
  • 11012
    11012-1354 CAP, TERMINAL
    CAP, TERMINAL
  • 13194
    13194-1085 CLUTCH, ONEWAY
    CLUTCH, ONEWAY
  • 21017
    21017-017 GROMMET, STARTER TERMINAL
    GROMMET, STARTER TERMINAL
  • 21025
    21025-011 WASHER, 9.1X18X0.2
    WASHER, 9.1X18X0.2
  • 21039
    21039-1060 BRUSH, CARBON
    BRUSH, CARBON
  • 21040
    21040-1055 SPRING, BRUSH
    SPRING, BRUSH
  • 21163
    21163-1263 STARTER, ELECTRIC
    STARTER, ELECTRIC
  • 26006
    26006-1006 FUSE, 30A, G
    FUSE, 30A, G
  • 26011
    26011-1628 WIRE, LEAD
    WIRE, LEAD
  • 27010
    27010-1213 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 39076
    39076-1070 LIMITER, STARTER IDLE GEAR
    LIMITER, STARTER IDLE GEAR
  • 42034
    42034-1143 COUPLING
    COUPLING
  • 55020
    55020-1589 GUARD, STARTER MOTER
    GUARD, STARTER MOTER
  • 59051
    59051-1130 GEAR, SPUR, STARTER, 63T
    GEAR, SPUR, STARTER, 63T
  • 92015
    92015-1476 NUT, STARTER MOTOR
    NUT, STARTER MOTOR
  • 92022
    92022-1132 WASHER, 9.1X18X0.8
    WASHER, 9.1X18X0.8
  • 92022A
    92022-1664 WASHER, 12.3X38X2.0
    WASHER, 12.3X38X2.0
  • 92026
    92026-087 SPACER, 29.1X47.5X1.2
    SPACER, 29.1X47.5X1.2
  • 92046
    92046-1137 BEARING, NEEDLE
    BEARING, NEEDLE
  • 92055
    92055-1276 O-RING
    O-RING
  • 92055A
    92055-1370 O-RING, 4.5X2.0
    O-RING, 4.5X2.0
  • 92055B
    92055-1381 O-RING, STARTER MOTOR
    O-RING, STARTER MOTOR
  • 92075
    92075-1863 DAMPER, MAGNETIC SWITCH
    DAMPER, MAGNETIC SWITCH
  • 92150
    92150-1913 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
