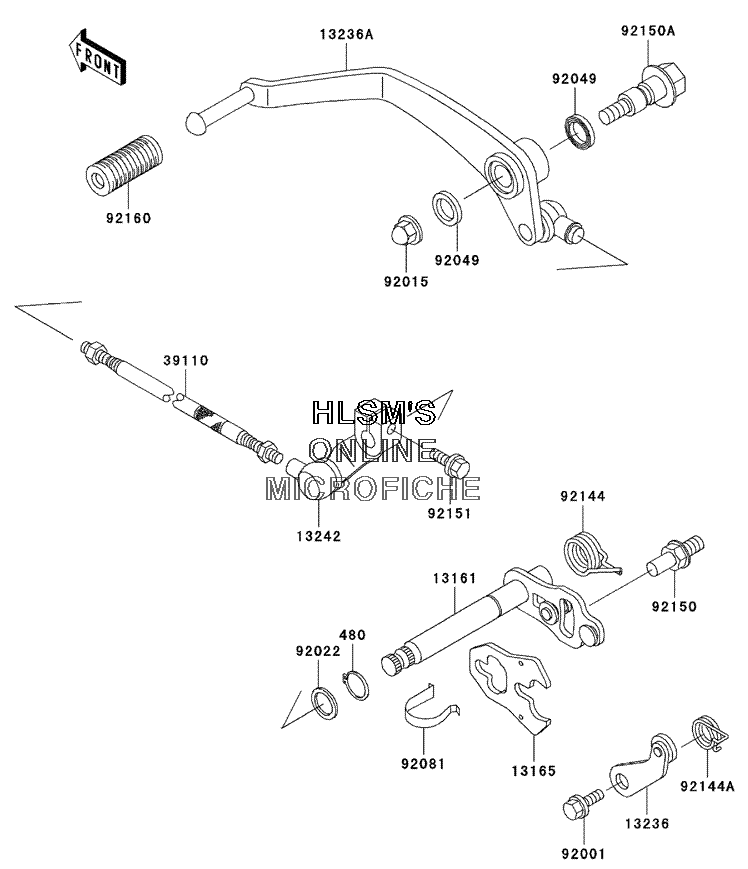

GEAR CHANGE MECHANISM для Kawasaki Vulcan 800 - 2002 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1300 CIRCLIP, TYPE, C, 13MM
    CIRCLIP, TYPE, C, 13MM
  • 13161
    13161-1218 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13165
    13165-1151 PAWL, CHANGE LEVER
    PAWL, CHANGE LEVER
  • 13236
    13236-1126 LEVER, COMP, POSITION
    LEVER, COMP, POSITION
  • 13236A
    13236-1271 LEVER, COMP, CHANGE PEDAL
    LEVER, COMP, CHANGE PEDAL
  • 13242
    13242-1290 LEVER, ASSY., CHANGE
    LEVER, ASSY., CHANGE
  • 39110
    39110-1124 ROD, ASSY., TIE
    ROD, ASSY., TIE
  • 92001
    92001-1715 BOLT, GEAR CHANGE LEVER
    BOLT, GEAR CHANGE LEVER
  • 92015
    92015-1370 NUT, CAP, 8MM
    NUT, CAP, 8MM
  • 92022
    92022-1224 WASHER, 13.2X20X0.5
    WASHER, 13.2X20X0.5
  • 92049
    92049-1398 SEAL, OIL, VB13193
    SEAL, OIL, VB13193
  • 92081
    92081-1829 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92144
    92144-1345 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92144A
    92144-1850 SPRING, LEVER
    SPRING, LEVER
  • 92150
    92150-1869 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92150A
    92150-1908 BOLT, CHANGE PEDAL
    BOLT, CHANGE PEDAL
  • 92151
    92151-1450 BOLT, 6X20
    BOLT, 6X20
  • 92160
    92160-1637 DAMPER, CHANGE PEDAL
    DAMPER, CHANGE PEDAL
