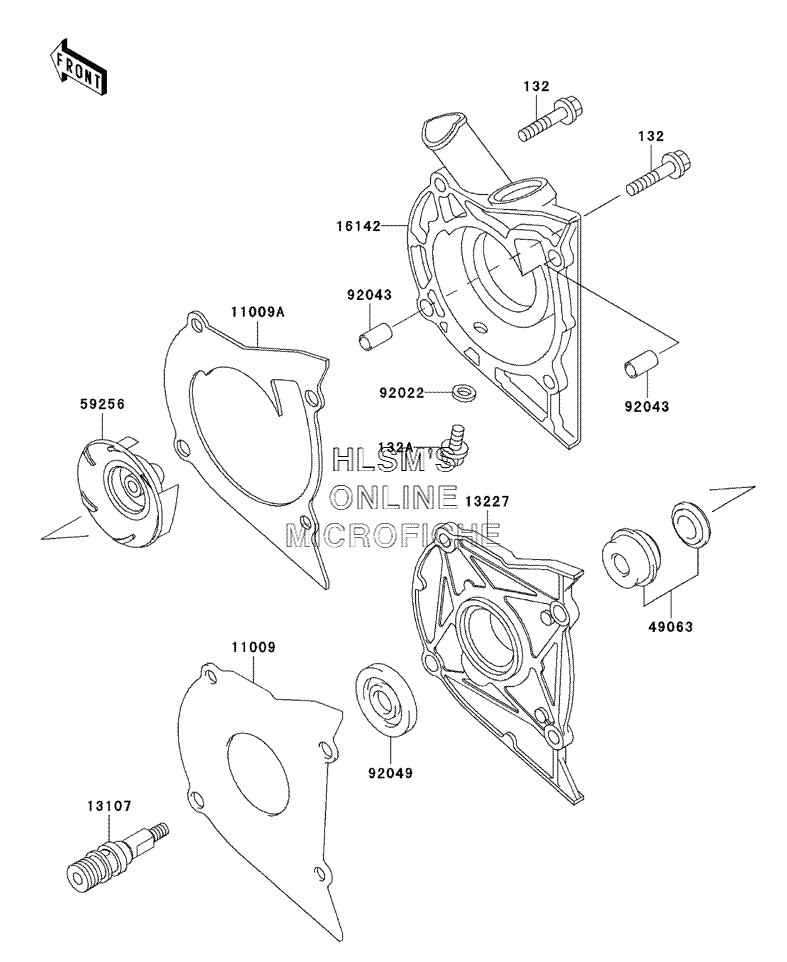

WATER PUMP для Kawasaki Vulcan 500 LTD - 2002 года выпуска`
-
№АртикулНазвание
-
132132E0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100911009-1838 GASKET, PUMP HOUSINGGASKET, PUMP HOUSING
-
11009A11009-1839 GASKET, PUMP COVERGASKET, PUMP COVER
-
1310713107-1203 SHAFT, IMPELLERSHAFT, IMPELLER
-
1322713227-1116 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1614216142-1130 COVER, PUMPCOVER, PUMP
-
4906349063-1056 SEAL, MECHANICALSEAL, MECHANICAL
-
5925659256-1060 IMPELLERIMPELLER
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204992049-1215 SEAL, OIL, SC12365SEAL, OIL, SC12365
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL W/ TORQUE LINK
- BREATHER COVER W/ OIL PAN
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CHAIN KIT
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM (CALIF ONLY)
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SEAT
- SIDE COVERS W/ CHAIN COVER
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TURN SIGNALS
- VALVE(S)
- • WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
