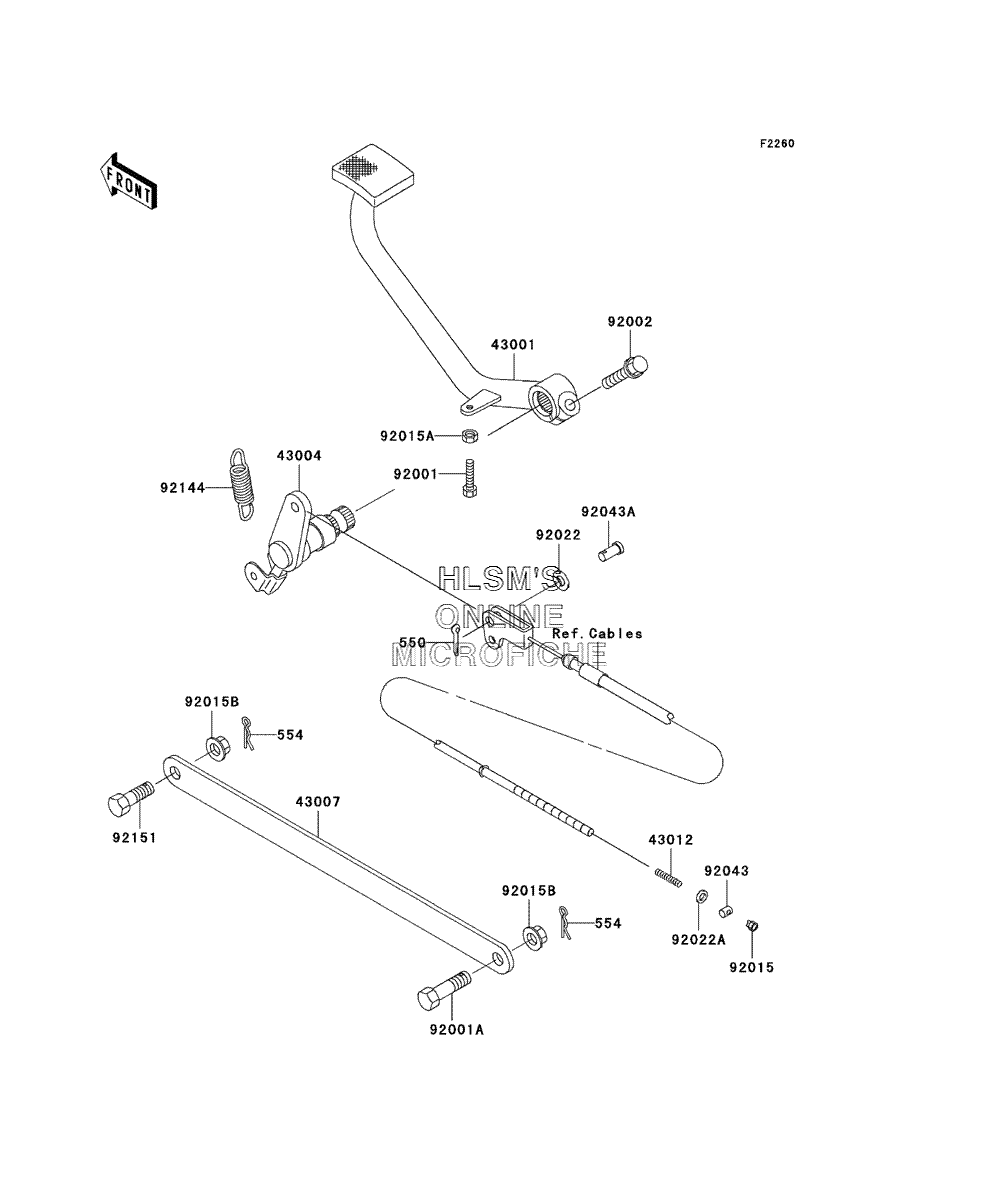

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Vulcan 500 LTD - 2002 года выпуска
-
№АртикулНазвание
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
554554A0800 PIN, SNAP, 8MMPIN, SNAP, 8MM
-
4300143001-1365 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
4300443004-1132 SHAFT, BRAKESHAFT, BRAKE
-
4300743007-1112 ROD, TORQUEROD, TORQUE
-
4301243012-001 SPRING, BRAKE RODSPRING, BRAKE ROD
-
9200192001-1090 BOLT, 6X25BOLT, 6X25
-
92001A92001-1519 BOLT, 10X37BOLT, 10X37
-
9200292002-1201 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
9201592015-042 NUT, BRAKE RODNUT, BRAKE ROD
-
92015A92015-1391 NUT, 6MMNUT, 6MM
-
92015B92015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
92022A92022-1588 WASHER, 6.3X10.2X1.6WASHER, 6.3X10.2X1.6
-
9204392043-065 PIN, BRAKE RODPIN, BRAKE ROD
-
92043A92043-1013 PIN, 8X16PIN, 8X16
-
9214492144-1053 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
9215192151-1876 BOLT, 10X29BOLT, 10X29
