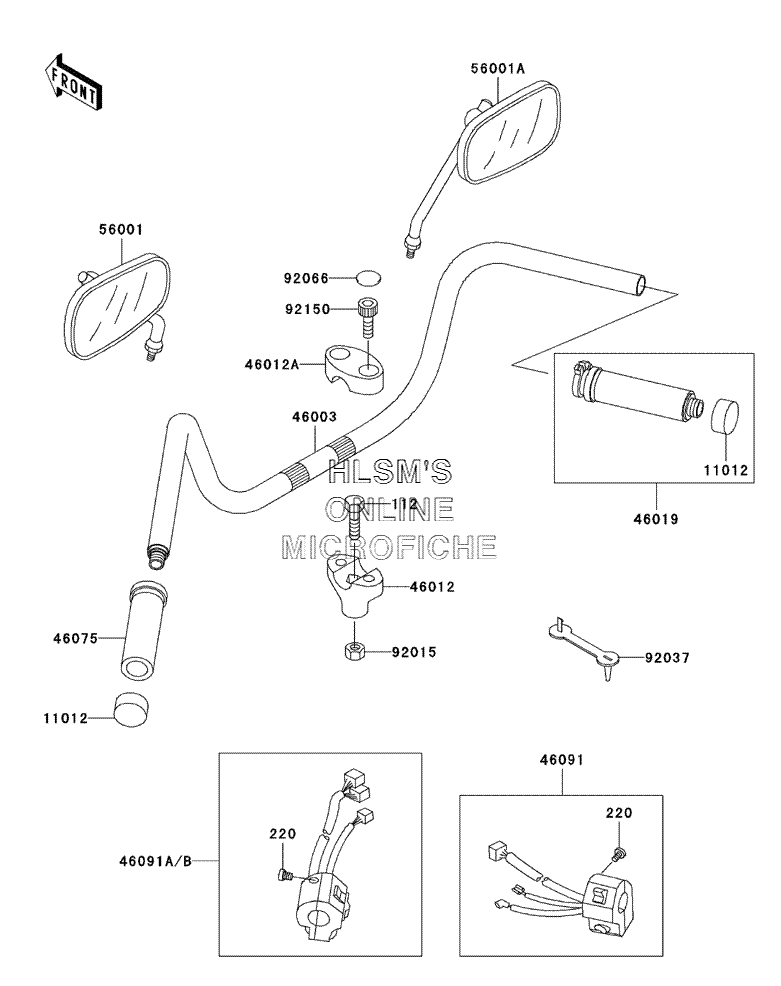

HANDLEBAR для Kawasaki Vulcan 1500 Classic - 2002 года выпуска`
-
№АртикулНазвание
-
112112H1065 BOLT, UPSET, 10X65BOLT, UPSET, 10X65
-
220220E0525 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
1101211012-1975 CAP, GRIP ENDCAP, GRIP END
-
4600346003-1479 HANDLEHANDLE
-
4601246012-1272 HOLDER, HANDLE, LOWERHOLDER, HANDLE, LOWER
-
46012A46012-1273 HOLDER, HANDLE, UPPERHOLDER, HANDLE, UPPER
-
4601946019-1109 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4607546075-1074 GRIP (LEFT)GRIP (LEFT)
-
4609146091-1717 HOUSING, ASSY, CONTROL (RIGHT)HOUSING, ASSY, CONTROL (RIGHT)
-
46091B46091-1788 HOUSING, ASSY, CONTROL (LEFT)HOUSING, ASSY, CONTROL (LEFT)
-
5600156001-1451 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-1452 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9201592015-1717 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9206692066-1285 PLUGPLUG
-
9215092150-1942 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
