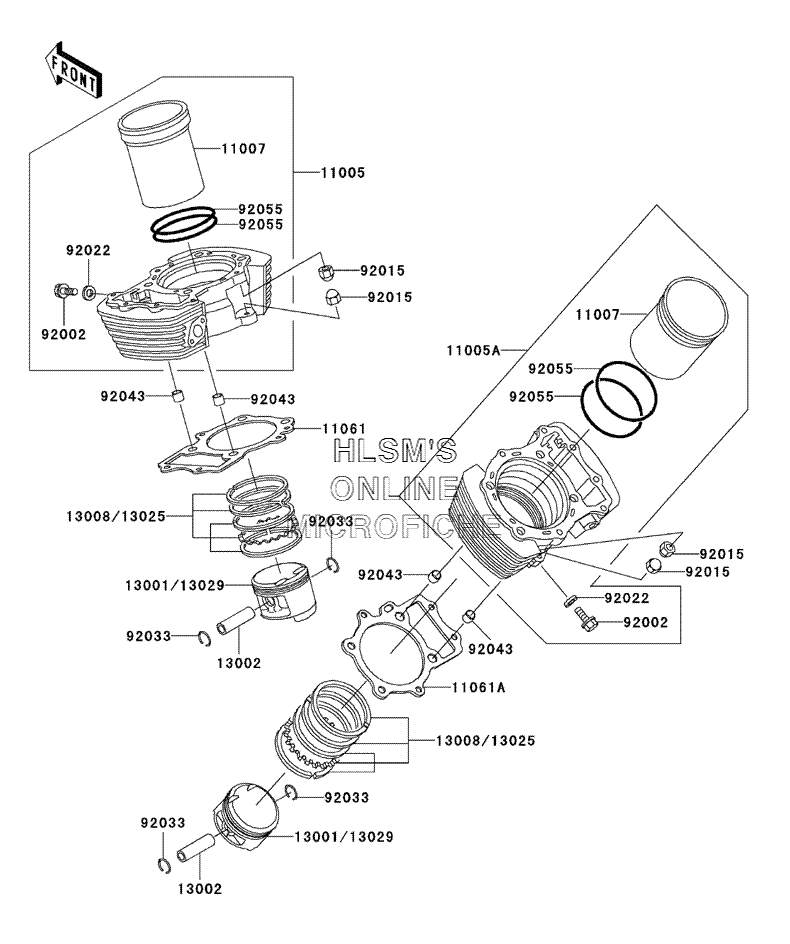

CYLINDER/PISTON(S) для Kawasaki Vulcan 1500 Classic - 2002 года выпуска`
-
№АртикулНазвание
-
1100511005-1863 CYLINDER, ENGINE, FRONTCYLINDER, ENGINE, FRONT
-
11005A11005-1865 CYLINDER, ENGINE, REARCYLINDER, ENGINE, REAR
-
1100711007-1097 LINER, CYLINDERLINER, CYLINDER
-
1106111061-1083 GASKET, CYLINDER BASE, FRONTGASKET, CYLINDER BASE, FRONT
-
11061A11061-1084 GASKET, CYLINDER BASE, REARGASKET, CYLINDER BASE, REAR
-
1300113001-1542 PISTON, ENGINE (STD)PISTON, ENGINE (STD)
-
1300213002-1107 PIN, PISTONPIN, PISTON
-
1300813008-1172 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
1302513025-1081 RING, SET, PISTON (O/S 0.50)RING, SET, PISTON (O/S 0.50)
-
1302913029-1233 PISTON, ENGINE (O/S 0.50)PISTON, ENGINE (O/S 0.50)
-
9200292002-1569 BOLT, 6X12BOLT, 6X12
-
9201592015-1370 NUT, CAP, 8MMNUT, CAP, 8MM
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9203392033-1226 RING, SNAPRING, SNAP
-
9204392043-1608 PIN, 13X16X14PIN, 13X16X14
-
9205592055-1371 O-RING, 110.5X2.5O-RING, 110.5X2.5
