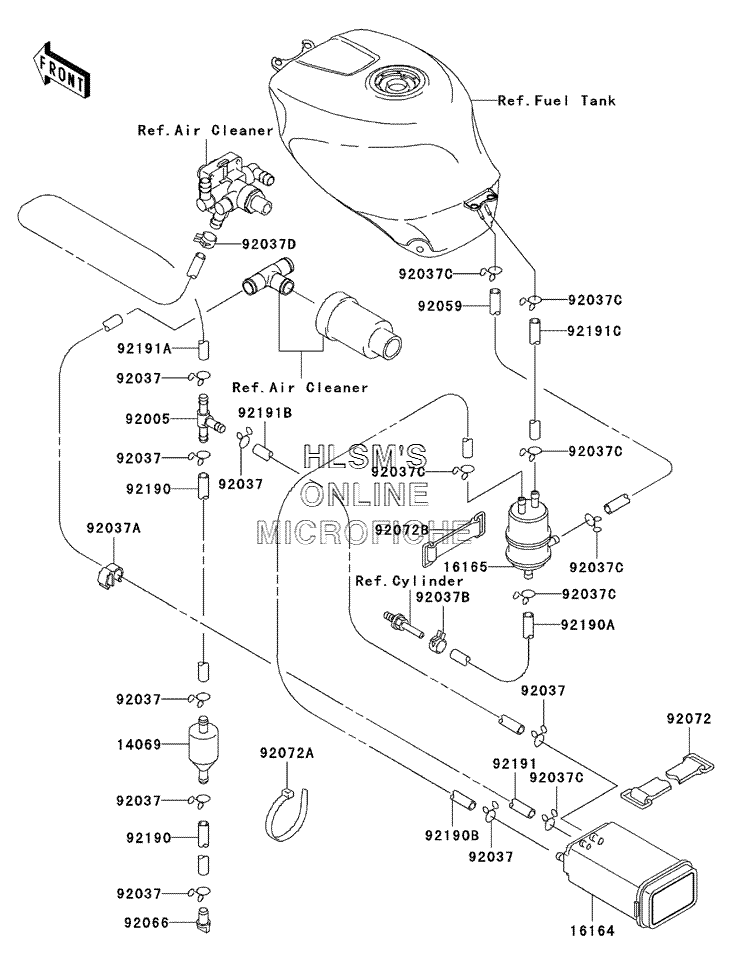

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-7R - 2002 года выпуска`
-
№АртикулНазвание
-
1406914069-1051 BREATHERBREATHER
-
1616416164-1064 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
9200592005-1119 FITTING, T, TYPEFITTING, T, TYPE
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1458 CLAMPCLAMP
-
92037B92037-1461 CLAMP, TUBECLAMP, TUBE
-
92037C92037-147 CLAMP, TUBECLAMP, TUBE
-
92037D92037-2082 CLAMPCLAMP
-
9205992059-1497 TUBE, 5X10X230 (RED)TUBE, 5X10X230 (RED)
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207292072-006 BAND, L=142.1BAND, L=142.1
-
92072A92072-1195 BAND, L=202BAND, L=202
-
92072B92072-1419 BAND, L=50BAND, L=50
-
9219092190-1201 TUBE, 7X12X160TUBE, 7X12X160
-
92190A92190-1216 TUBE, 5X10X438 (WHITE)TUBE, 5X10X438 (WHITE)
-
92190B92190-1228 TUBE, 5X10X668 (BLUE)TUBE, 5X10X668 (BLUE)
-
9219192191-1036 TUBE (GREEN)TUBE (GREEN)
-
92191A92191-1037 TUBE (YELLOW)TUBE (YELLOW)
-
92191B92191-1083 TUBE (YELLOW)TUBE (YELLOW)
-
92191C92191-1099 TUBE, 5X10X120 (BLUE)TUBE, 5X10X120 (BLUE)
