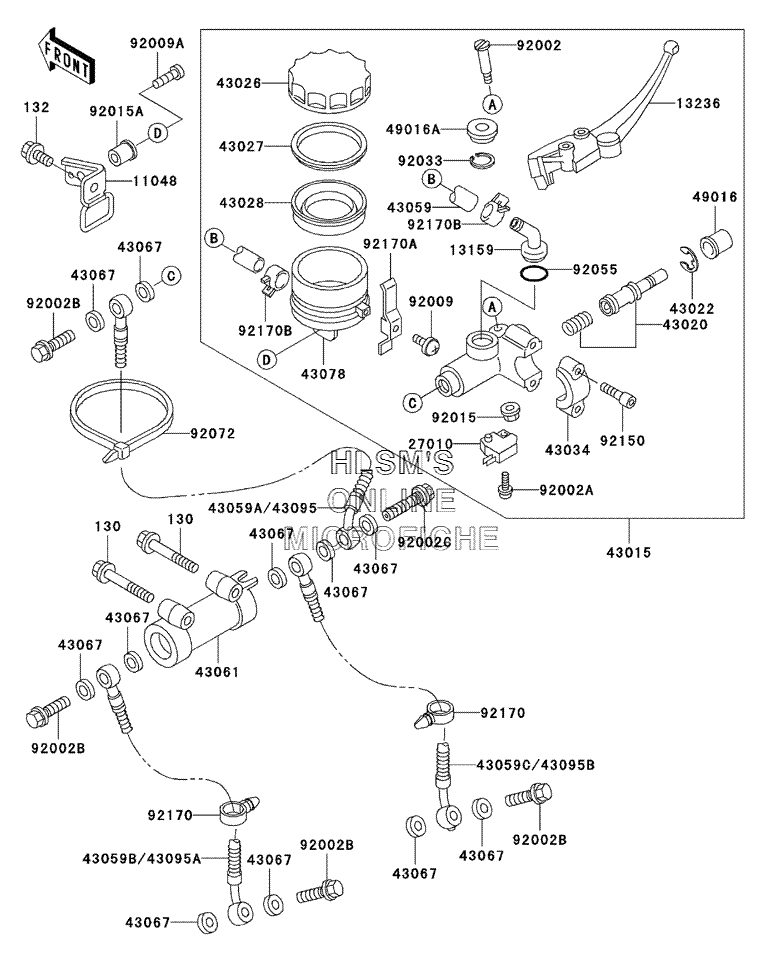

BRAKE - MASTER CYLINDER - FRONT для Kawasaki NINJA ZX-7R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0635 BOLT, FLANGED, 6X35
    BOLT, FLANGED, 6X35
  • 132
    132J0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 11048
    11048-1170 BRACKET, RESERVOIR TANK
    BRACKET, RESERVOIR TANK
  • 13159
    13159-1061 CONNECTOR
    CONNECTOR
  • 13236
    13236-1286 LEVER, COMP, FRONT BRAKE
    LEVER, COMP, FRONT BRAKE
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1577 CYLINDER, ASSY, MASTER, FRONT
    CYLINDER, ASSY, MASTER, FRONT
  • 43020
    43020-1054 PISTON, COMP, BRAKE, FRONT
    PISTON, COMP, BRAKE, FRONT
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1051 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1051 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1016 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43059
    43059-1547 HOSE, BRAKE, FRONT MASTER CYLINDER
    HOSE, BRAKE, FRONT MASTER CYLINDER
  • 43059A
    43059-1854 HOSE, BRAKE, FRONT, UPPER
    HOSE, BRAKE, FRONT, UPPER
  • 43059B
    43059-1945 HOSE, BRAKE, FRONT (LEFT)
    HOSE, BRAKE, FRONT (LEFT)
  • 43059C
    43059-1946 HOSE, BRAKE, FRONT (RIGHT)
    HOSE, BRAKE, FRONT (RIGHT)
  • 43061
    43061-1002 JOINT, BRAKE
    JOINT, BRAKE
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1099 RESERVOIR
    RESERVOIR
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 49016A
    49016-1147 COVER, SEAL
    COVER, SEAL
  • 92002
    92002-1322 BOLT, LEVER SET (BLACK)
    BOLT, LEVER SET (BLACK)
  • 92002A
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002B
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92002C
    92002-1909 BOLT, OIL, L=37
    BOLT, OIL, L=37
  • 92009
    92009-1570 SCREW
    SCREW
  • 92009A
    92009-1655 SCREW, 5X18
    SCREW, 5X18
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92072
    92072-1197 BAND, L=365
    BAND, L=365
  • 92150
    92150-1328 BOLT
    BOLT
  • 92170
    92170-1067 CLAMP
    CLAMP
  • 92170A
    92170-1090 CLAMP
    CLAMP
  • 92170B
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
