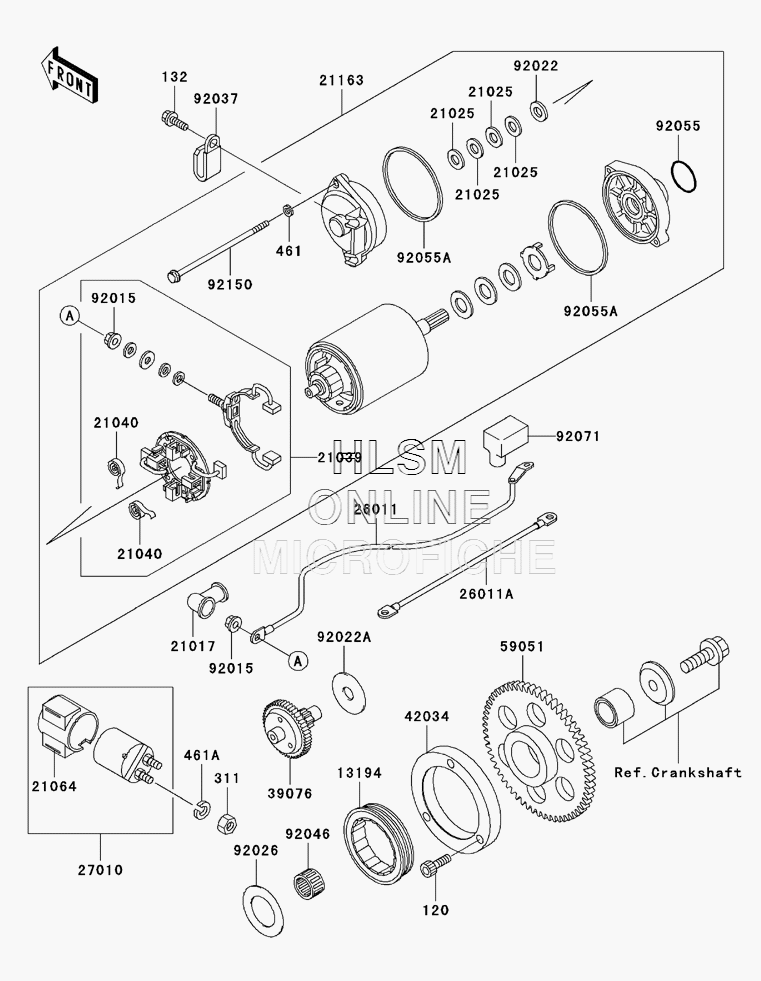

STARTER MOTOR для Kawasaki Vulcan 750 - 2001 года выпуска`
-
№АртикулНазвание
-
120120Q0820 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
132132J0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
461A461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
1319413194-1085 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1053 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1003 SPRING, BRUSHSPRING, BRUSH
-
2106421064-002 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
2116321163-1319 STARTER, ELECTRICSTARTER, ELECTRIC
-
2601126011-1276 WIRE, LEAD, STARTER MOTORWIRE, LEAD, STARTER MOTOR
-
26011A26011-1320 WIRE, LEAD, BATTERY GROUNDWIRE, LEAD, BATTERY GROUND
-
2701027010-1209 SWITCH, MAGNETICSWITCH, MAGNETIC
-
3907639076-1051 LIMITER, STARTER IDLE GEARLIMITER, STARTER IDLE GEAR
-
4203442034-1143 COUPLINGCOUPLING
-
5905159051-1130 GEAR, SPUR, STARTER, 63TGEAR, SPUR, STARTER, 63T
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022A92022-1664 WASHER, 12.3X38X2.0WASHER, 12.3X38X2.0
-
9202692026-087 SPACER, 29.1X47.5X1.2SPACER, 29.1X47.5X1.2
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204692046-1137 BEARING, NEEDLEBEARING, NEEDLE
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9207192071-1130 GROMMET, TERMINALGROMMET, TERMINAL
-
9215092150-1913 BOLT, STARTER MOTORBOLT, STARTER MOTOR
