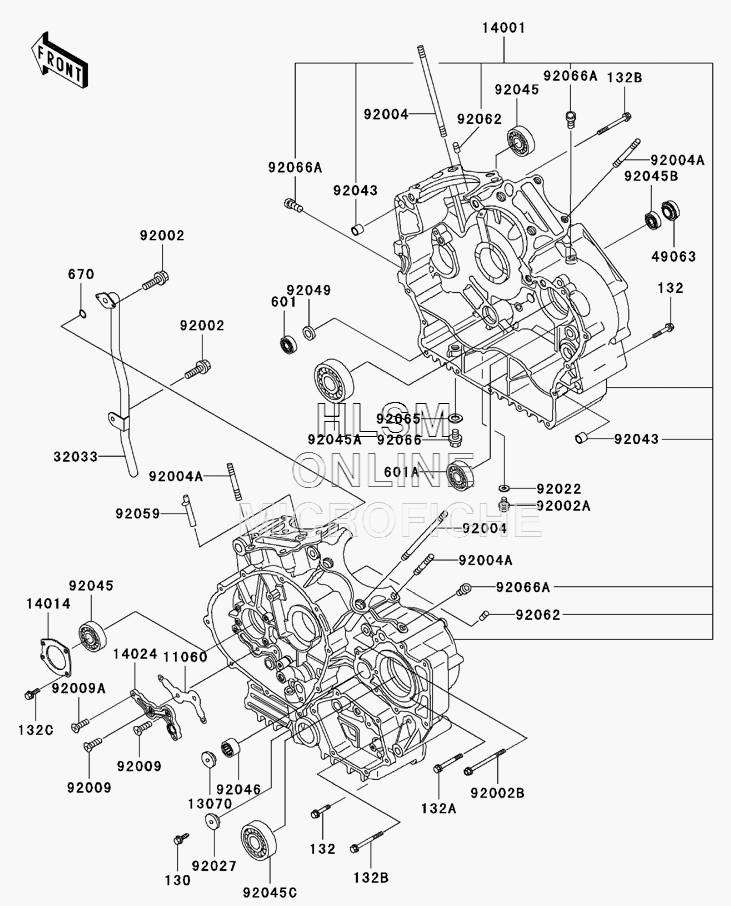

CRANKCASE для Kawasaki Vulcan 750 - 2001 года выпуска`
-
№АртикулНазвание
-
130130P0616 BOLT, FLANGEDBOLT, FLANGED
-
132132E0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132E0640 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132E0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132C132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
601601A6001 BEARING, BALLBEARING, BALL
-
601A601A6204Z BEARING, BALLBEARING, BALL
-
670670B1508 O-RING, 8MMO-RING, 8MM
-
1106011060-1087 GASKET, OIL LINE COVERGASKET, OIL LINE COVER
-
1307013070-1127 GUIDEGUIDE
-
1400114001-5205 SET, CRANKCASESET, CRANKCASE
-
1401414014-1068 PLATE, POSITIONPLATE, POSITION
-
1402414024-1074 COVER, OIL LINECOVER, OIL LINE
-
3203332033-1649 PIPE, BREATHERPIPE, BREATHER
-
4906349063-1057 SEAL, MECHANICALSEAL, MECHANICAL
-
9200292002-1592 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92002A92002-1628 BOLT, 6X10BOLT, 6X10
-
92002B92002-1629 BOLT, 10X80BOLT, 10X80
-
9200492004-1140 STUD, 10X163STUD, 10X163
-
92004A92004-1142 STUD, 8X28.5STUD, 8X28.5
-
9200992009-1266 SCREWSCREW
-
92009A92009-1447 SCREW, 6X20SCREW, 6X20
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
9202792027-1844 COLLARCOLLAR
-
9204392043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9204592045-1041 BEARING, BALL, TMB204 JRBEARING, BALL, TMB204 JR
-
92045A92045-1137 BEARING, BALL, TMB305BEARING, BALL, TMB305
-
92045B92045-1151 BEARING, BALL, 6001JRXLLU/5KBEARING, BALL, 6001JRXLLU/5K
-
92045C92045-1167 BEARING, BALL, TMB305X3BEARING, BALL, TMB305X3
-
9204692046-1239 BEARING, NEEDLEBEARING, NEEDLE
-
9204992049-1228 SEAL, OIL, AC037AE0SEAL, OIL, AC037AE0
-
9205992059-1620 TUBETUBE
-
9206292062-1079 NOZZLE, 6X8 (BLACK)NOZZLE, 6X8 (BLACK)
-
9206592065-097 GASKET, 12X22X2, DRAIN PLUGGASKET, 12X22X2, DRAIN PLUG
-
9206692066-1174 PLUG, OIL DRAIN, 12X15PLUG, OIL DRAIN, 12X15
-
92066A92066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
